Remove/Install Roller Sun Blind Guide Rail - AR77.21-P-0231NKA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 117, 156, 176
with code 413 (Automatic panoramic sliding sunroof)
Model 205.0/1/2/3
with code 413 (Automatic panoramic sliding sunroof)
Model 238
with code 413 (Automatic panoramic sliding sunroof)
Model 253
with code 413 (Automatic panoramic sliding sunroof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||

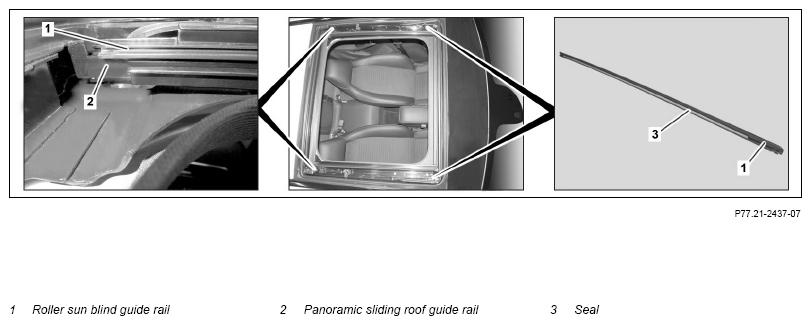

| 1 | Detach left and right panoramic sliding roof guide rail (2) | AR77.21-P-0430NKA | |
| 2 | Carefully raise panoramic roof guide rail (2) at rear and pull roller sun blind guide rail (1) toward rear out of panoramic sliding roof guide rail (2) | ||
| 3 | Install in the reverse order |
