Prepare Rear Panoramic Glass Roof For Installation - AR77.21-P-0600-02CW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 156
with code 413 (Automatic panoramic sliding sunroof)
Model 204
with code 413 (Automatic panoramic sliding sunroof)
Model 205
with code 413 (Automatic panoramic sliding sunroof)
Model 242
with code 413 (Automatic panoramic sliding sunroof)
Model 246
with code 413 (Automatic panoramic sliding sunroof)
Model 253
with code 413 (Automatic panoramic sliding sunroof)
| Topical note | Notes on removal/installation of bonded elements of panoramic roof | AH77.21-P-0001-01A |
MODIFICATION NOTES
| 09.04.2018 | Notes on removal/installation of bonded panoramic roof elements added. |
- Attach cup suction tools to outside of rear panoramic roof (1) and set down rear panoramic roof (1) with inside facing upwards on a suitable base with aid of helper.
- Apply cleaner using part of cleaning cloth to bonding surfaces on inside of rear panoramic roof (1) and wipe dry with other part of cleaning cloth.
- Apply primer uniformly to all bonding surfaces on inside of rear panoramic roof (1) and allow to fully dry.

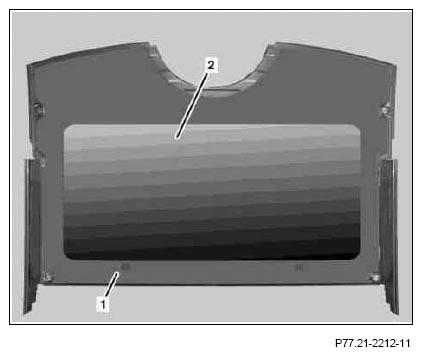

Shown with model 204.0
