Panoramic Sliding Roof - Clean And Lubricate Guide Mechanism - AP77.20-P-7732A
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 167, 177, 213, 238, 243, 247, 253, 290, 292
with code 413 (Panoramic sliding sunroof/glass roof)

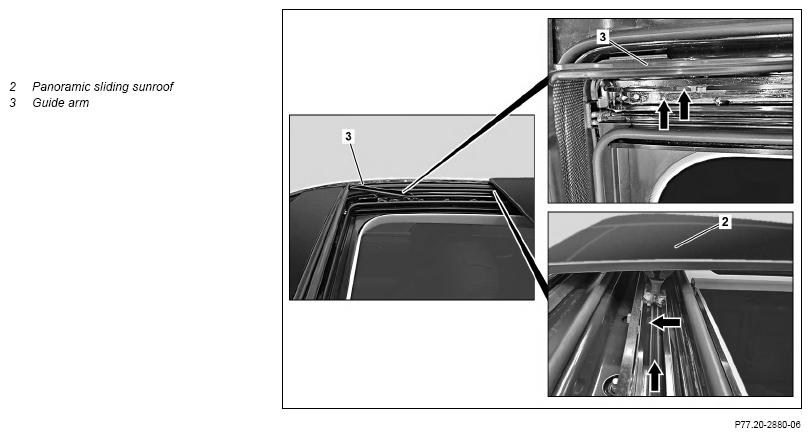

Shown on model 292 with code 413 (Panoramic sliding sunroof)

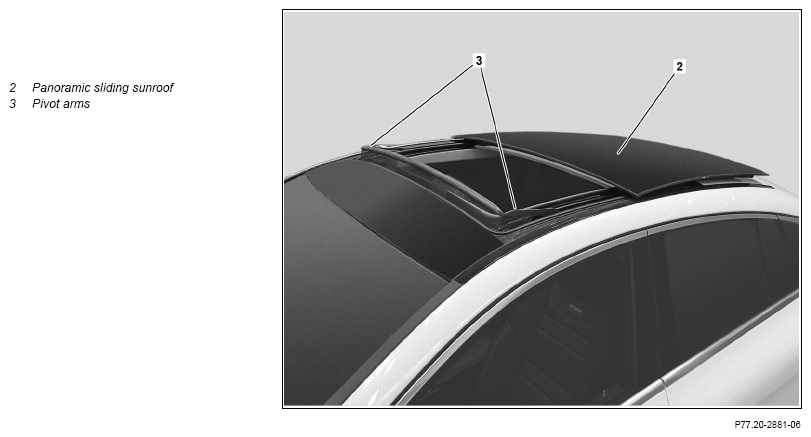

Shown on model 292 with code 413 (Panoramic sliding sunroof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Preparatory activity | |||
| 1 | Open panoramic sliding sunroof (2). | ||
| Clean | |||
| 2 | Use rag to clean pivot arm (3) of wind deflector. | ||
| 3 | Clean entire length of guide rails (arrow) using a rag. | ||
| Lubricate | |||
| 4 | Apply thin coating of grease to pivot arm (3) of wind deflector. | Synthetic grease, sliding roof 500 g, DB supply specification 6827.60 | *BR00.45-Z-1004-06A |
| 5 | Apply coating of grease to contact surfaces along entire length of guide rails (arrows). | Synthetic grease, sliding roof 500 g, DB supply specification 6827.60 | *BR00.45-Z-1004-06A |
| 6 | Perform function test of panoramic sliding sunroof (2). | ||
| 7 | Remove any excess grease. | ||
| Finishing activity | |||
| 8 | Close panoramic sliding sunroof (2). |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1004-06A | Synthetic grease, sliding roof 500 g, DB supply specification 6827.60 |
A 001 989 46 51 |
