Remove/Install Soft Top Compartment Lid - AR77.33-P-1700LWR
WARNING: This page is about a different car, the 2023 Mercedes-Benz C300, 2022 Mercedes-Benz C300, 2021 Mercedes-Benz C300, 2020 Mercedes-Benz C300, and 2019 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.4
Model 238.4

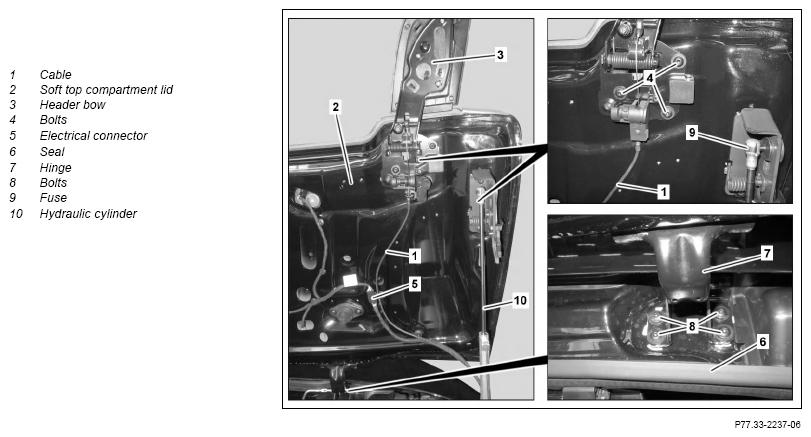

Shown on left side of vehicle
| Risk Of Injury when performing check and repair work in area of roll bar | Keep body parts out of the area where the roll bars extend. Do not use the cover in the area of the roll bar as a storage place for objects. |
AS91.00-Z-0003-01LCA | |
| Risk Of Injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk Of Injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Remove/Install | |||
| 1 | Move soft top to repair position R4 | Completely close soft top. |
AR77.30-P-1030LWR |
| 2 | Cover left and right rear fender and trunk lid | ||
| 3 | Expose left and right cable (1) on soft top compartment lid (2) | ||
| 4 | Mark installation position of left and right header bow (3) on soft top compartment lid (2) | ||
| 5 | Unscrew bolts (4) on left and right header bow (3) and lay both header bows (3) down into soft top compartment together with cables (1) | Align left and right header bow (3) along markings. Model 205.4 Screw/bolt, header bow hinge to soft top compartment lid |
*BA77.33-P-1003-03A |
Model 238.4 Screw/bolt, header bow hinge to soft top compartment lid |
*BA77.33-P-1003-03B | ||
| 6 | Disconnect electrical connection (5) | ||
| 7 | Loosen seal (6) in area of left and right hinge (7) | ||
| 8 | Mark installation position of left and right hinge (7) on body | ||
| 9 | Remove retainer on left and right hinge (7) and unscrew bolts (8) | Helper required. Align left and right hinge (7) according to markings. Model 205.4 Screw/bolt, soft top compartment lid hinge to body |
*BA77.33-P-1002-03A |
| Model 238.4 Screw/bolt, soft top compartment lid hinge to body | *BA77.33-P-1002-03B | ||
| 10 | Lift retainer (9) with suitable screwdriver on left and right hydraulic cylinder (10), unhook hydraulic cylinder (10) from soft top compartment lid (2) and lay down | Do not remove retainer (9). Otherwise the tension on the retainer (9) can be lost. Helper required. |
|
| 11 | Remove soft top compartment lid (2) | Two helpers are required. |
|
| 12 | Disassemble soft top compartment lid (2) | When replacing soft top compartment lid (2). | AR77.33-P-1700-01LWR |
Model 205.4 Screw/bolt, hinge to soft top compartment lid |
*BA77.33-P-1001-03A | ||
Model 238.4 Screw/bolt, hinge to soft top compartment lid |
*BA77.33-P-1001-03B | ||
Model 205.4 Screw/bolt, hydraulic cylinder/lock mount to soft top compartment lid |
*BA77.33-P-1006-03A | ||
Model 238.4 Screw/bolt, hydraulic cylinder/lock mount to soft top compartment lid |
*BA77.33-P-1006-03B | ||
Model 205.4 Screw/bolt, stop buffer to soft top compartment lid |
*BA77.33-P-1007-03A | ||
Model 238.4 Screw/bolt, stop buffer to soft top compartment lid |
*BA77.33-P-1007-03B | ||
Mounting wedge |
Fig 2 | ||
| 13 | Install in the reverse order | ||
| Check | |||
| 14 | Check adjustment of soft top compartment lid (2) | AR77.33-P-1705LWR | |
| 15 | Check adjustment of left and right header bow (3) | AR77.33-P-1023LWR |
SOFT TOP COMPARTMENT LID
| Number | Designation | Model 205.4 | |
|---|---|---|---|
| BA77.33-P-1001-03A | Screw/bolt, hinge to soft top compartment lid | Nm | 10 |
SOFT TOP COMPARTMENT LID
| Number | Designation | Model 238.4 | |
|---|---|---|---|
| BA77.33-P-1001-03B | Screw/bolt, hinge to soft top compartment lid | Nm | 10 |
SOFT TOP COMPARTMENT LID
| Number | Designation | Model 205.4 | |
|---|---|---|---|
| BA77.33-P-1002-03A | Screw/bolt, soft top compartment lid hinge to body | Nm | 10 |
SOFT TOP COMPARTMENT LID
| Number | Designation | Model 238.4 | |
|---|---|---|---|
| BA77.33-P-1002-03B | Screw/bolt, soft top compartment lid hinge to body | Nm | 10 |
SOFT TOP COMPARTMENT LID
| Number | Designation | Model 205.4 | |
|---|---|---|---|
| BA77.33-P-1003-03A | Screw/bolt, header bow hinge to soft top compartment lid | Nm | 10 |
SOFT TOP COMPARTMENT LID
| Number | Designation | Model 238.4 | |
|---|---|---|---|
| BA77.33-P-1003-03B | Screw/bolt, header bow hinge to soft top compartment lid | Nm | 10 |
SOFT TOP COMPARTMENT LID
| Number | Designation | Model 205.4 | |
|---|---|---|---|
| BA77.33-P-1006-03A | Screw/bolt, hydraulic cylinder/lock mount to soft top compartment lid | Nm | 10 |
SOFT TOP COMPARTMENT LID
| Number | Designation | Model 238.4 | |
|---|---|---|---|
| BA77.33-P-1006-03B | Screw/bolt, hydraulic cylinder/lock mount to soft top compartment lid | Nm | 10 |
SOFT TOP COMPARTMENT LID
| Number | Designation | Model 205.4 | |
|---|---|---|---|
| BA77.33-P-1007-03A | Screw/bolt, stop buffer to soft top compartment lid | Nm | 8 |
SOFT TOP COMPARTMENT LID
| Number | Designation | Model 238.4 | |
|---|---|---|---|
| BA77.33-P-1007-03B | Screw/bolt, stop buffer to soft top compartment lid | Nm | 8 |
