Align Windshield In Body Opening - AR67.10-P-1000-04G

WARNING: This page is about a different car, the 2023 Mercedes-Benz C300, 2022 Mercedes-Benz C300, 2021 Mercedes-Benz C300, 2020 Mercedes-Benz C300, and 2019 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

Model 117, 156, 169, 170, 171, 172.4, 176, 205, 207, 209, 218, 230.4, 231, 242, 245.2, 246, 253, 293

Model 212 except code Z04 (Light armoring)

Model 212, 218

Model 207, 209, 231

Model 117, 156, 169, 170, 171, 172, 176, 205, 230, 242, 245, 246, 253, 293

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Place windshield (1) down on windshield rubber spacers on body flange.
Center windshield (1) in body opening.
Adjust gap dimension (A) with feeler gauge.

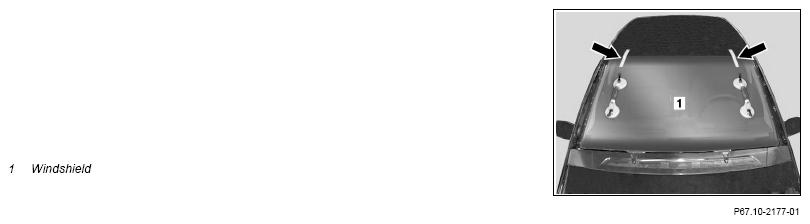

Glue on strips of adhesive tape (arrows).
Cut through adhesive strips (arrows) at top of windshield (1).
Remove windshield (1) from vehicle.

Courtesy of MERCEDES-BENZ USA

Shown on model 169.0
