Prepare Panoramic Roof Frame Body Flange For Installation - AR77.21-P-0800-05NKX
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 156
with code 413 (Automatic panoramic sliding sunroof)
Model 205
with code 413 (Automatic panoramic sliding sunroof)
Model 253
with code 413 (Automatic panoramic sliding sunroof)
| Notes on removal/installation of bonded elements of panoramic roof | AH77.21-P-0001-01A |
MODIFICATION NOTES
| 16.04.2018 | Notes on removal/installation of bonded elements of panoramic roof added. |

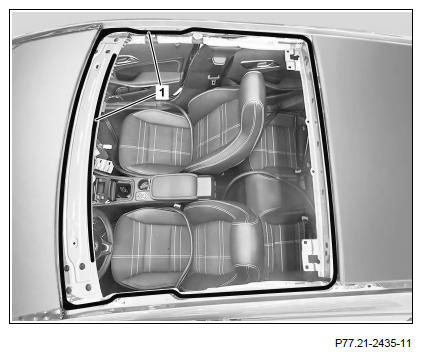

- Cut off residual adhesive material (1) on body flange to a max. height of 1 mm with scraper.
- Remove glue residues (1) cut from body flange.
- Check body grommets on area of front roof frame for damage.
If there is a problem,
↓
replace respective body grommet.
↓
repair paint damage on body flange.
- Check body flange for paint damage.
If there is a problem,
- Apply primer in respective bonding area.
With residual adhesive material (1) missing in bonding area only.
Shown on model 156
