Prepare Front Glass Cover For Installation - AR77.21-P-7010-03NKA
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 117, 156, 176, 205, 222, 253 with code 413 (Automatic panoramic sliding sunroof)
Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL)
| Notes on removal/installation of bonded elements of panoramic roof | AH77.21-P-0001-01A |
MODIFICATION NOTES
| 29.05.2018 | Notes on removal/installation of bonded elements of panoramic roof added. |
- Check front glass cover (1) for damage.
If there is a problem,
replace front glass cover (1).
- Attach cup suction tool on outer side of front glass cover (1) and place front glass cover (1) down on a suitable base with inner side pointing upwards.

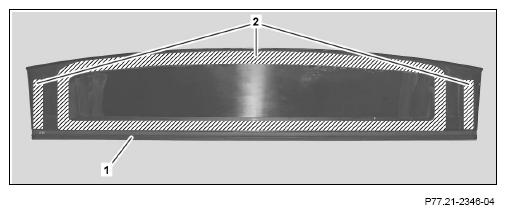

- Apply cleaner onto bonding surfaces (2) on inner side of front glass cover (1) with part of cleaning cloth and then wipe with other part of cleaning cloth.
- Apply primer evenly onto bonding surfaces (2) on inner side of front glass cover (1).
