Adjust Tilting/Sliding Roof Panel - AR77.20-P-1100LW
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.0/1
with code 414 (Sliding sunroof)
Model 213.0/1/2
with code 414 (Sliding sunroof)
Shown on right side of vehicle
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove | |||
| 1 | Connect diagnostic system and normalize sliding roof | ||
| AD00.00-P-2000-04B | |||
| 2 | Open sliding roof paneling (3) | ||
| 3 | Remove left and right boot (2) | Otherwise the left and right boot (2) can be damaged by bending. |
|
| Adjust | |||

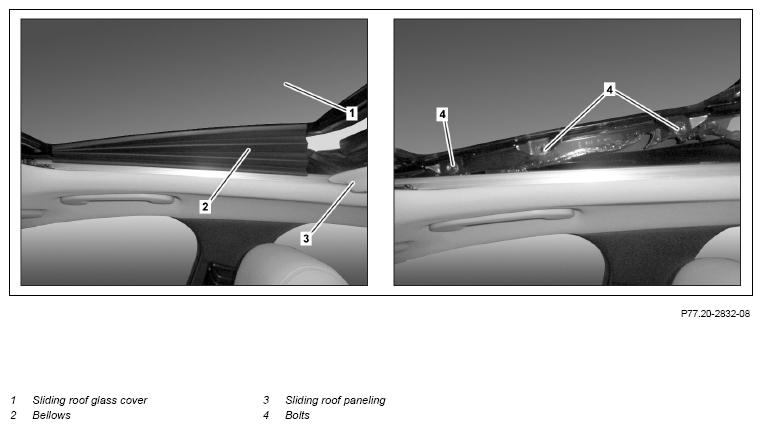

| 4 | Loosen bolts (4) on left and right sliding roof glass cover (1) | ||
| 5 | Push sliding roof glass cover (1) upward out of sliding roof cutout | ||
| 6 | Lower sliding roof glass cover (1) back into sliding roof cutout | ||
| 7 | Adjust sliding roof glass cover (1) in relation to left and right front roof paneling and tighten front bolts (4) | Sliding roof adjustment |
*BE77.20-P-1001-01H |
| 8 | Adjust sliding roof glass cover (1) in relation to left and right rear roof paneling and tighten rear bolts (4) | Sliding roof adjustment |
*BE77.20-P-1001-01H |
| 9 | Tighten center bolts (4) | ||
| Check | |||
| 10 | Move sliding roof glass cover (1) to tilt position | ||
| 11 | Move sliding roof glass cover (1) from tilt position to open position | ||
| 12 | Close sliding roof glass cover (1) | ||

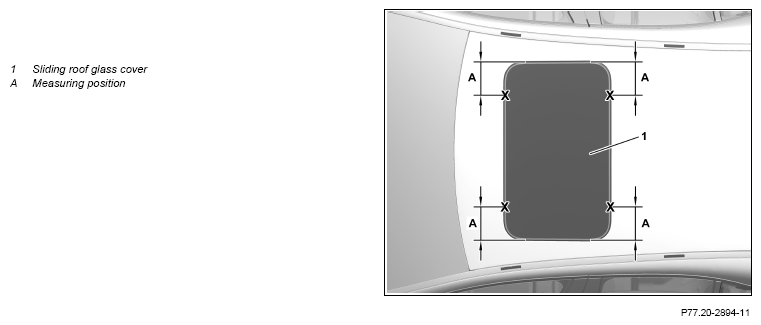

| 13 | Check adjustment of sliding roof glass cover (1) at all 4 measuring positions (A) | If adjustment is not correct. ↓ Repeat adjustment of corresponding measuring position (A). |
|
| Install | |||
| 14 | Install left and right boot (2) | ||
| 15 | Closing sliding roof paneling (3) |
SLIDING ROOF TEST AND ADJUSTMENT VALUES
| Number | Designation | Model 205 | Model 213 | ||
|---|---|---|---|---|---|
| BE77.20-P-1001-01H | Sliding roof adjustment | Measurement position "A" (x) | mm | 140 | 140 |
| Front: Lower than roof paneling | mm | 0...1 | 0...1 | ||
| Rear: Higher than roof paneling | mm | 0...1 | 0...1 | ||
