Remove/Install Engine Covers - AP01.10-P-2405-01I

Engine 264 In Model 167, 205, 253

Engine 264 In Model 463

Courtesy of MERCEDES-BENZ USA

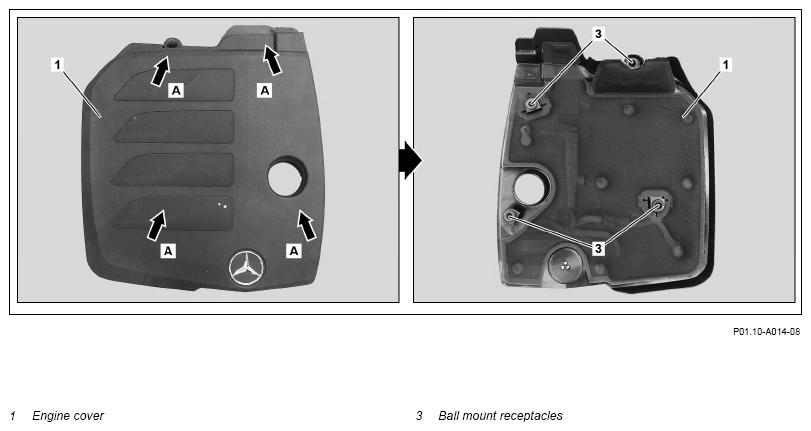

Shown on model 205.077

Courtesy of MERCEDES-BENZ USA

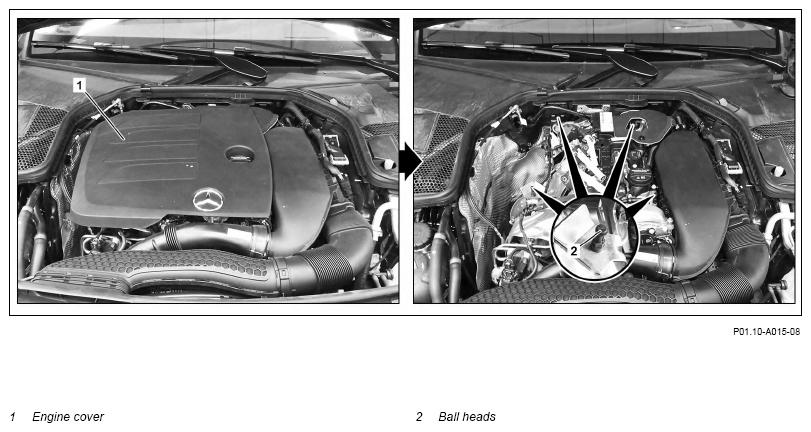

Shown on model 205.077

When removing and installing the engine cover (1) always make sure that only the positions shown in the picture (arrows A) are used for pulling during removal or for pressing during installation. The ball heads (2) latch there into the ball mount receptacles (3). No force may be applied at any other points on the engine cover.

The engine cover can get damaged if these instructions are not observed.
