Adjust Reading Lamp In Inside Rearview Mirror To Steering Variant - AR68.40-P-0001-01ME
Model 167

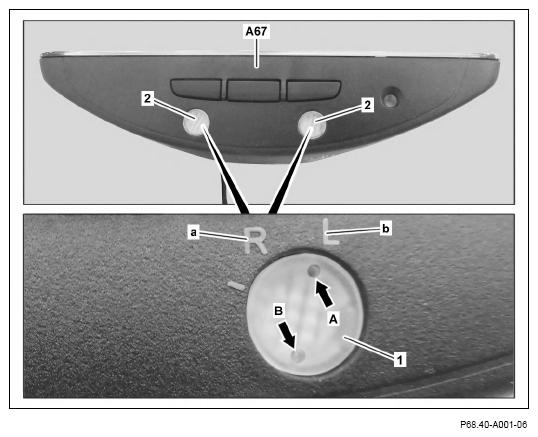

Shown on inside rearview mirror (A67)
Adjust reading lamps (2) according to vehicle steering variant to prevent the driver from being blinded.
Cutout (arrow A) of lens (1) must be at marking "R" (a) in right-hand drive vehicles.
Cutout (arrow A) of lens (1) must be at marking "L" (b) in LHD vehicles.
- Turn lens (1) of reading lamps (2) at cutouts (arrow A, arrow B) to corresponding mark "R" (a) or "L" (b) using retaining ring pliers.
Carefully turn lens (1).
as otherwise lens (1) may be damaged.
Use lock ring pliers with tip diameter of max. 1.3 mm and an opening of min. 20 mm.
