Remove/Install Oil Pan Noise Encapsulation - AR94.30-P-1000ME

Model 167 with engine 256

Model 167 with engine 654

Model 167 with engine 656

Courtesy of MERCEDES-BENZ USA

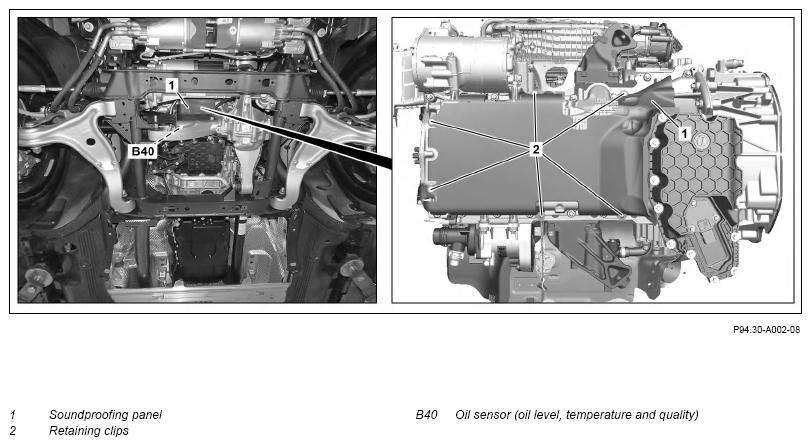

Shown on model 167 with engine 256

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove front axle differential.	Model 167 with engine 256 Model 167 with engine 654 Model 167 with engine 656
		Model 167 with engine 256.9	AR33.30-P-0525MSC
		Model 167 with engine 654.9, 656	AR33.30-P-0525OID
2	Release and disconnect electrical connector o the oil sensor (oil level, temperature, and quality) (B40).
3	Remove retaining clips (2).	The number of retaining clips (2) varies depending on the automotive engine.
		Dismantling tool	Fig 1
4	Remove noise encapsulation (1) from the oil pan.
5	Install in the reverse order

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
