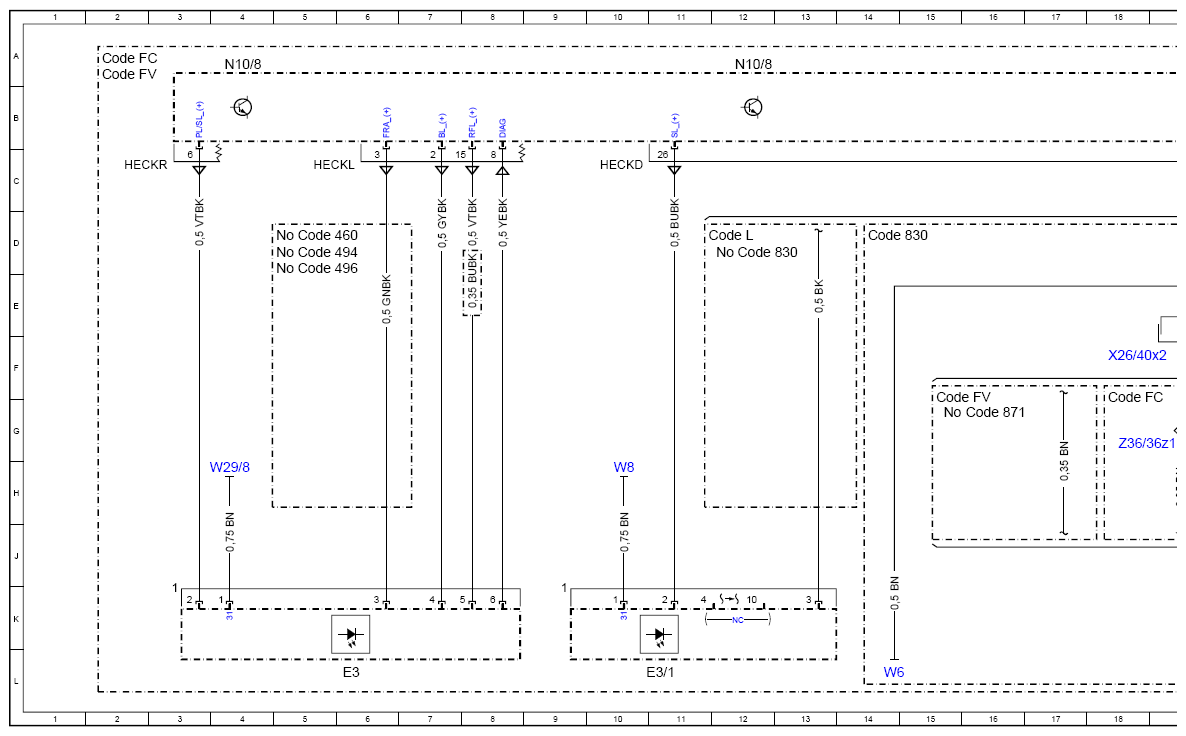

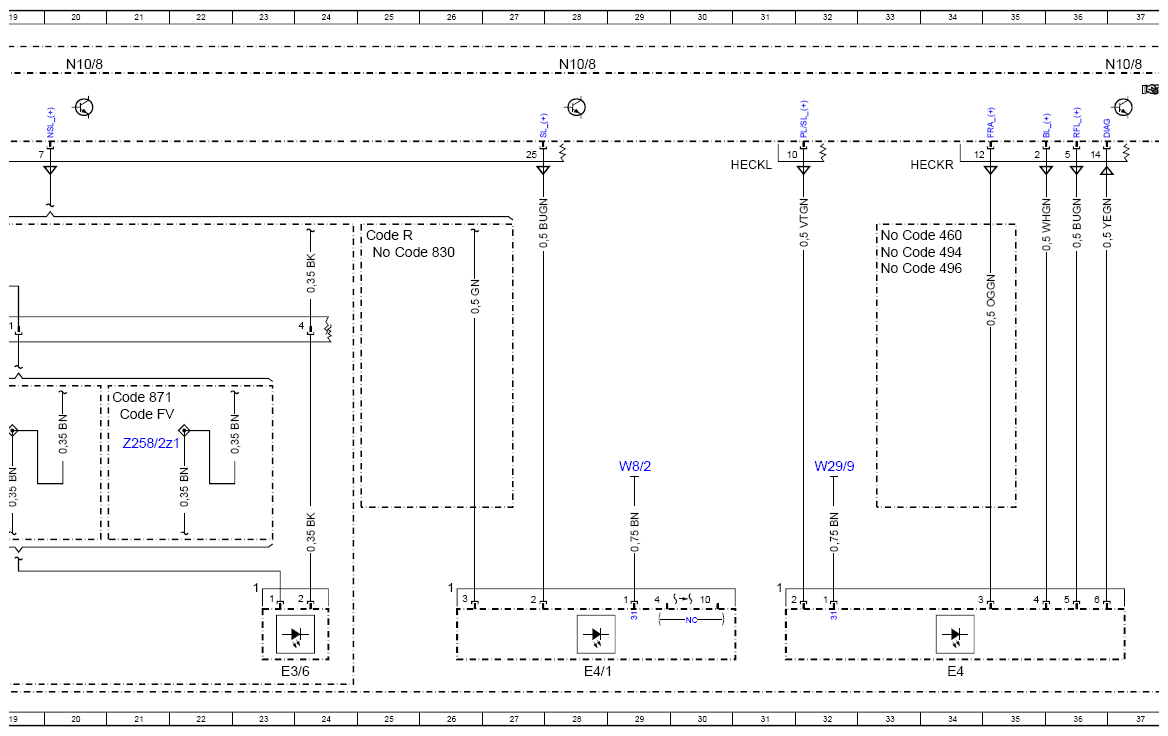

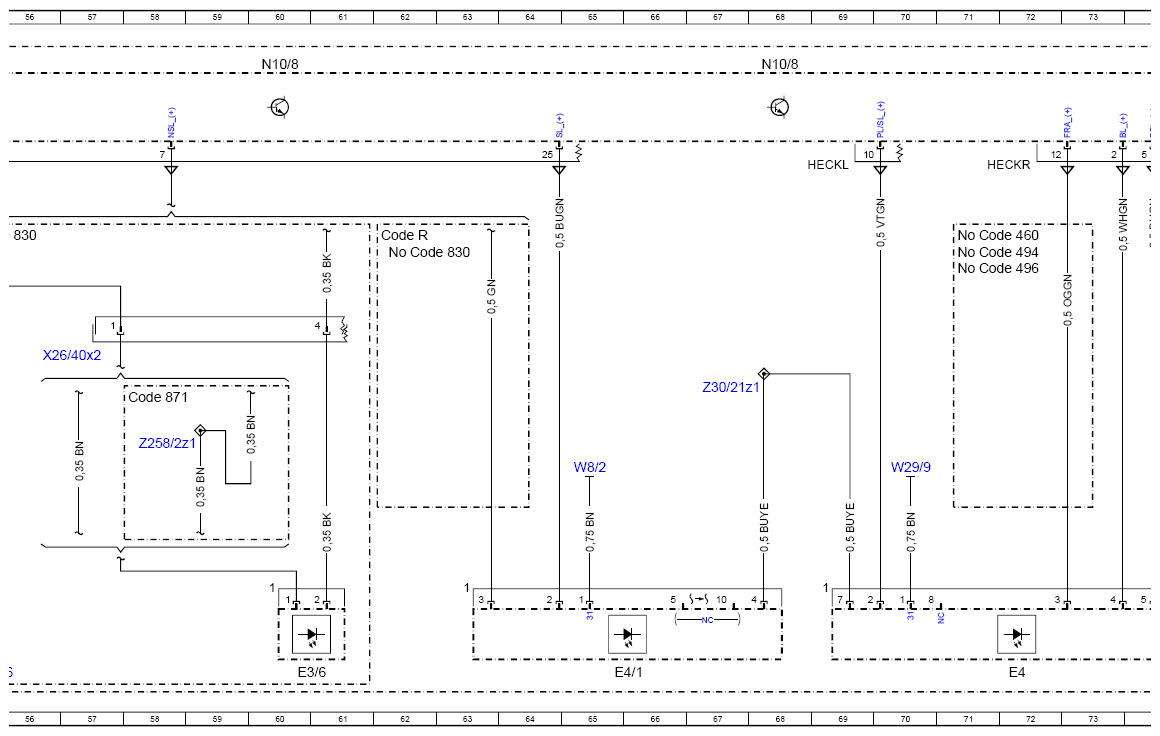

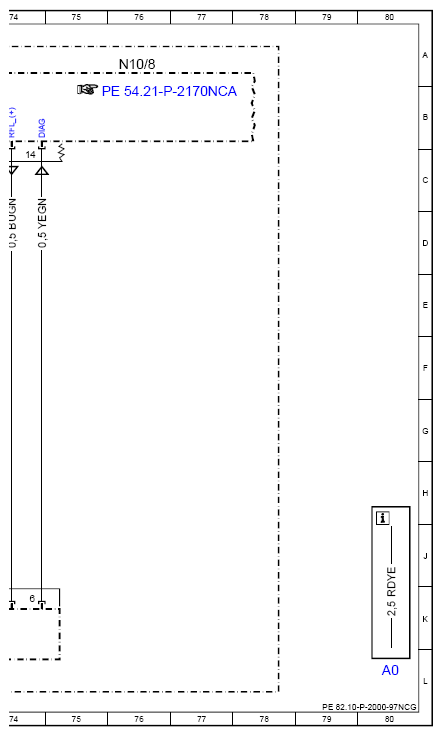

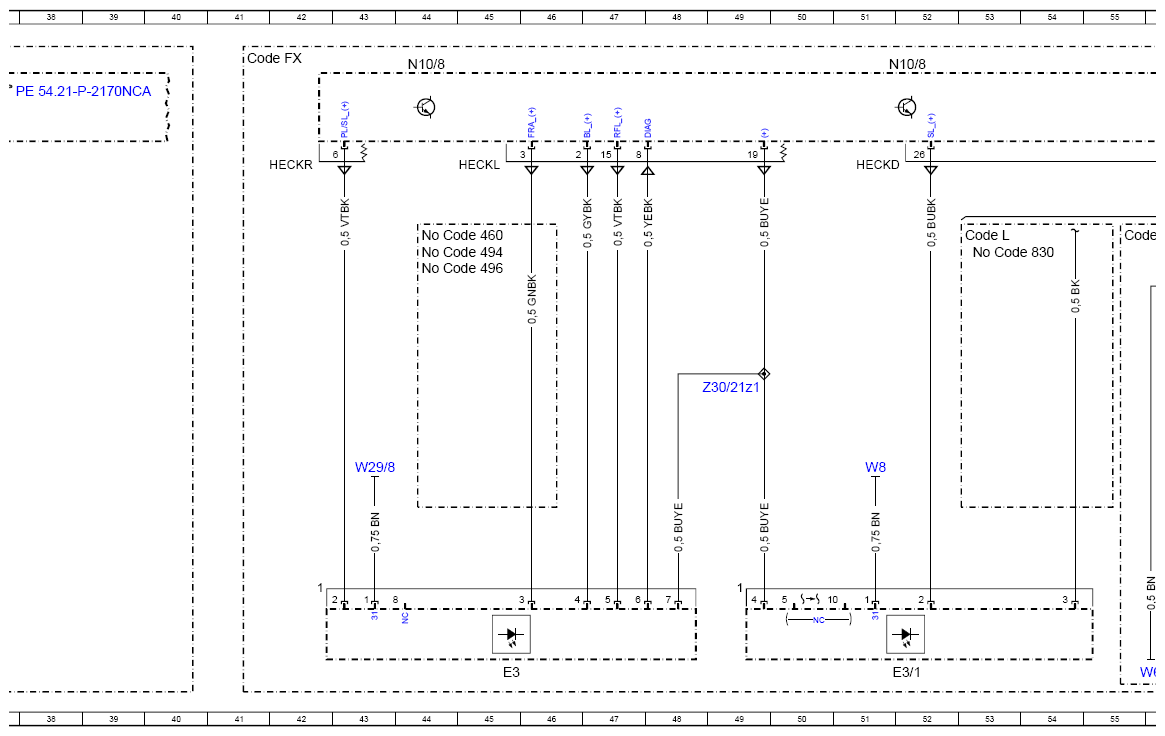

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97NCG
Model 167 Rear lamps E3, E3/1, E4, E4/1, rear fog lamp E3/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| Code 460 | Canada version | 5D |
| Code 460 | Canada version | 33D |
| Code 460 | Canada version | 44D |
| Code 460 | Canada version | 71D |
| Code 494 | USA version | 5D |
| Code 494 | USA version | 33D |
| Code 494 | USA version | 44D |
| Code 494 | USA version | 71D |
| Code 496 | Mexico version | 5D |
| Code 496 | Mexico version | 33D |
| Code 496 | Mexico version | 44D |
| Code 496 | Mexico version | 71D |
| Code 830 | Additional parts for China vehicles | 53D |
| Code 830 | Additional parts for China vehicles | 62D |
| Code 830 | Additional parts for China vehicles | 55D |
| Code 830 | Additional parts for China vehicles | 12D |
| Code 830 | Additional parts for China vehicles | 25D |
| Code 830 | Additional parts for China vehicles | 14D |
| Code 871 | HANDS-FREE ACCESS | 58G |
| Code 871 | HANDS-FREE ACCESS | 21G |
| Code 871 | HANDS-FREE ACCESS | 16G |
| Code FC | COUPE | 2A |
| Code FC | COUPE | 18G |
| Code FV | LONG SEDAN | 2A |
| Code FV | LONG SEDAN | 15G |
| Code FV | LONG SEDAN | 21G |
| Code FX | Special version | 41A |
| Code L | LEFT-HAND DRIVE | 53D |
| Code L | LEFT-HAND DRIVE | 11D |
| Code R | RIGHT-HAND DRIVE | 62D |
| Code R | RIGHT-HAND DRIVE | 25D |
| E3 | Left rear lamp unit | 6L |
| E3 | Left rear lamp unit | 45L |
| E3/1 | Inner left rear lamp unit | 11L |
| E3/1 | Inner left rear lamp unit | 52L |
| E3/6 | Rear fog lamp | 60L |
| E3/6 | Rear fog lamp | 23L |
| E4 | Right rear lamp unit | 34L |
| E4 | Right rear lamp unit | 72L |
| E4/1 | Inner right rear lamp unit | 28L |
| E4/1 | Inner right rear lamp unit | 65L |
| N10/8 | Rear central control unit | 4A |
| N10/8 | Rear central control unit | 12A |
| N10/8 | Rear central control unit | 37A |
| N10/8 | Rear central control unit | 44A |
| N10/8 | Rear central control unit | 68A |
| N10/8 | Rear central control unit | 28A |
| N10/8 | Rear central control unit | 76A |
| N10/8 | Rear central control unit | 20A |
| N10/8 | Rear central control unit | 52A |
| N10/8 | Rear central control unit | 60A |
| W29/8 | Left D-pillar ground point | 4H |
| W29/8 | Left D-pillar ground point | 43H |
| W29/9 | Right D-pillar ground point | 32H |
| W29/9 | Right D-pillar ground point | 70H |
| W6 | Left wheel arch trunk ground point | 56L |
| W6 | Left wheel arch trunk ground point | 14L |
| W8 | Liftgate ground point | 10H |
| W8 | Liftgate ground point | 51H |
| W8/2 | Right tailgate ground point | 29H |
| W8/2 | Right tailgate ground point | 65H |
| X26/40x2 | Rear bumper electrical connector | 57F |
| X26/40x2 | Rear bumper electrical connector | 18F |
| Z258/2z1 | Rear fog lamp connector sleeve | 58G |
| Z258/2z1 | Rear fog lamp connector sleeve | 21G |
| Z30/21z1 | Rear lamp unit background illumination end sleeve | 49F |
| Z30/21z1 | Rear lamp unit background illumination end sleeve | 67F |
| Z36/36z1 | Rear bumper circuit 31 connector sleeve | 18G |
