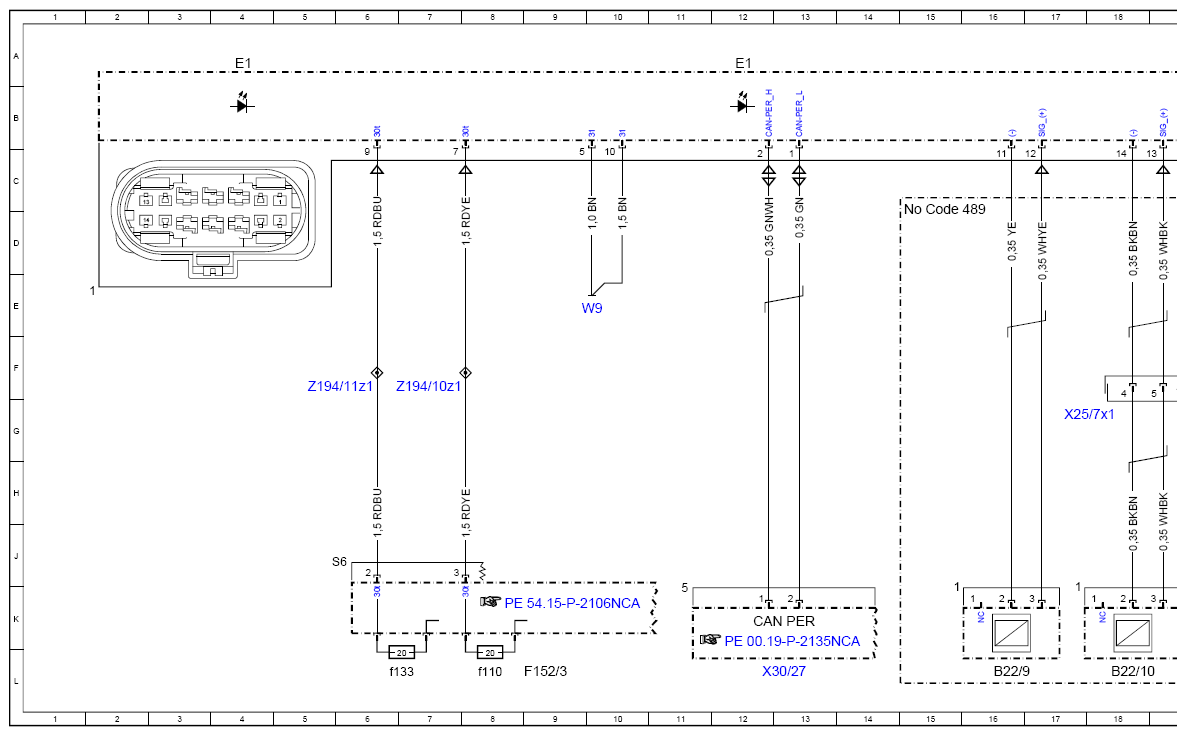

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97NCE
Model 167 with code 640 (SAE dynamic LED headlamps, right-hand traffic) Dynamic LED headlampE1
Model 167 with code 641 (Dynamic LED headlamps, left-hand traffic) Dynamic LED headlampE1
Model 167 with code 642 (Dynamic LED headlamps, right-hand traffic) Dynamic LED headlampE1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| B22/10 | Right rear level sensor | 18L |
| B22/9 | Right front level sensor | 16L |
| CAN PER | Peripherals CAN | 12K |
| Code 489 | AIRMATIC | 15D |
| E1 | Left front lamp unit | 4A |
| E1 | Left front lamp unit | 12A |

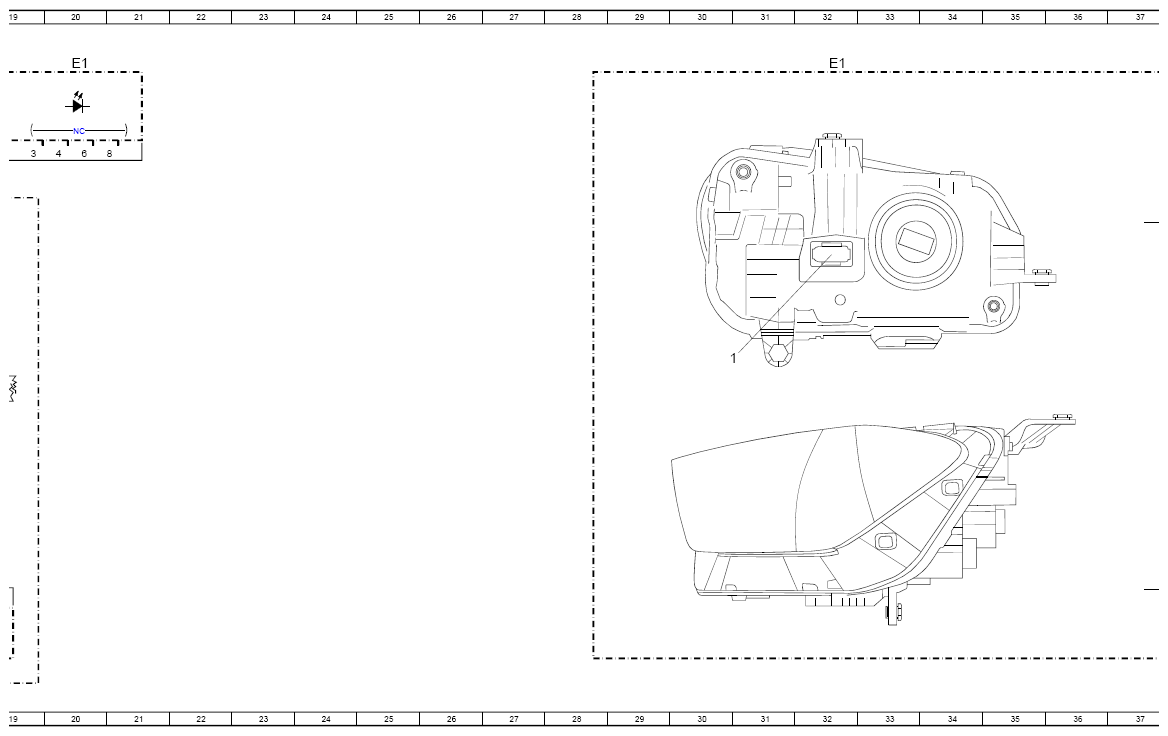

| E1 | Left front lamp unit | 32A |

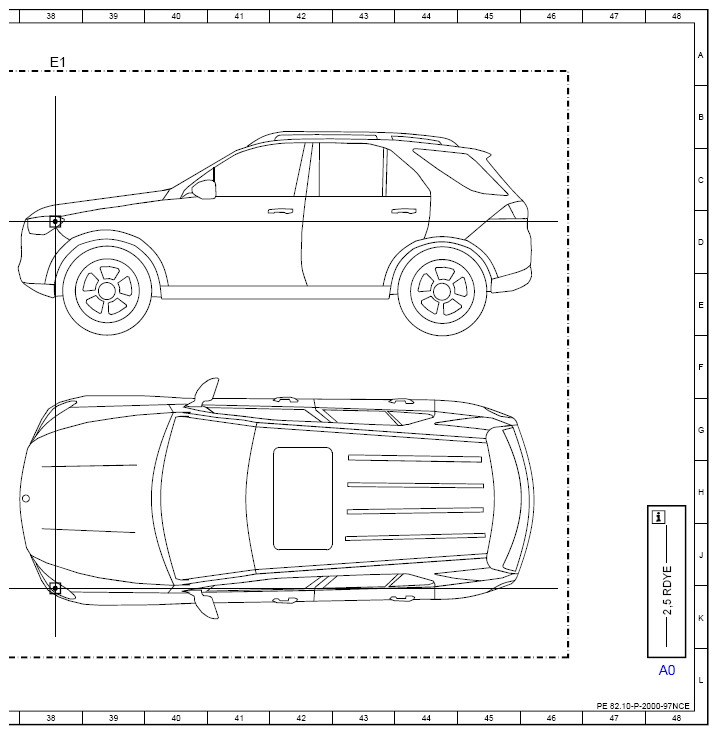

| E1 | Left front lamp unit | 38A |
| E1 | Left front lamp unit | 20A |
| F152/3 | Engine compartment fuse and relay module | 9L |
| F152/3f110 | Fuse 110 | 8L |
| F152/3f 133 | Fuse 133 | 6L |
| W9 | Left front ground point (at lamp unit) | 10E |
| X25/7x1 | Engine compartment/frame floor assembly electrical connector | 18G |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 13L |
| Z194/10z1 | Front lamp unit terminal 30 A end sleeve | 7F |
| Z194/11z1 | Front lamp unit terminal 30 B end sleeve | 6F |
