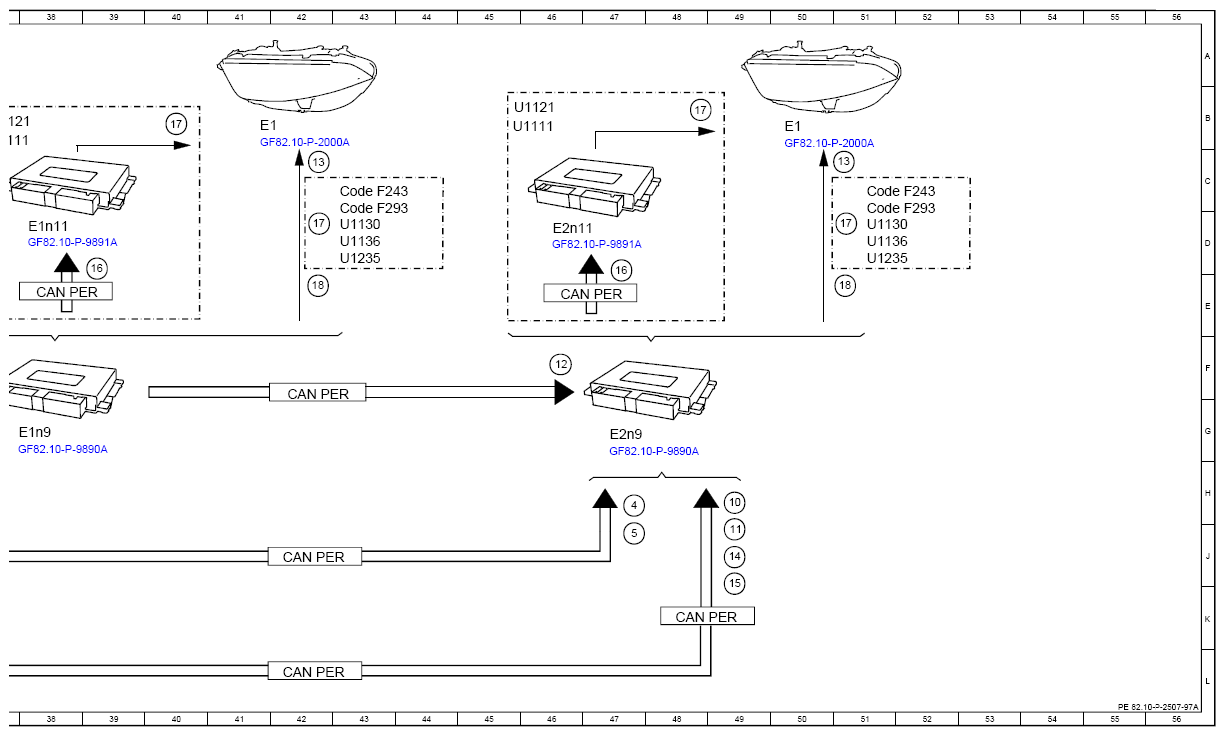

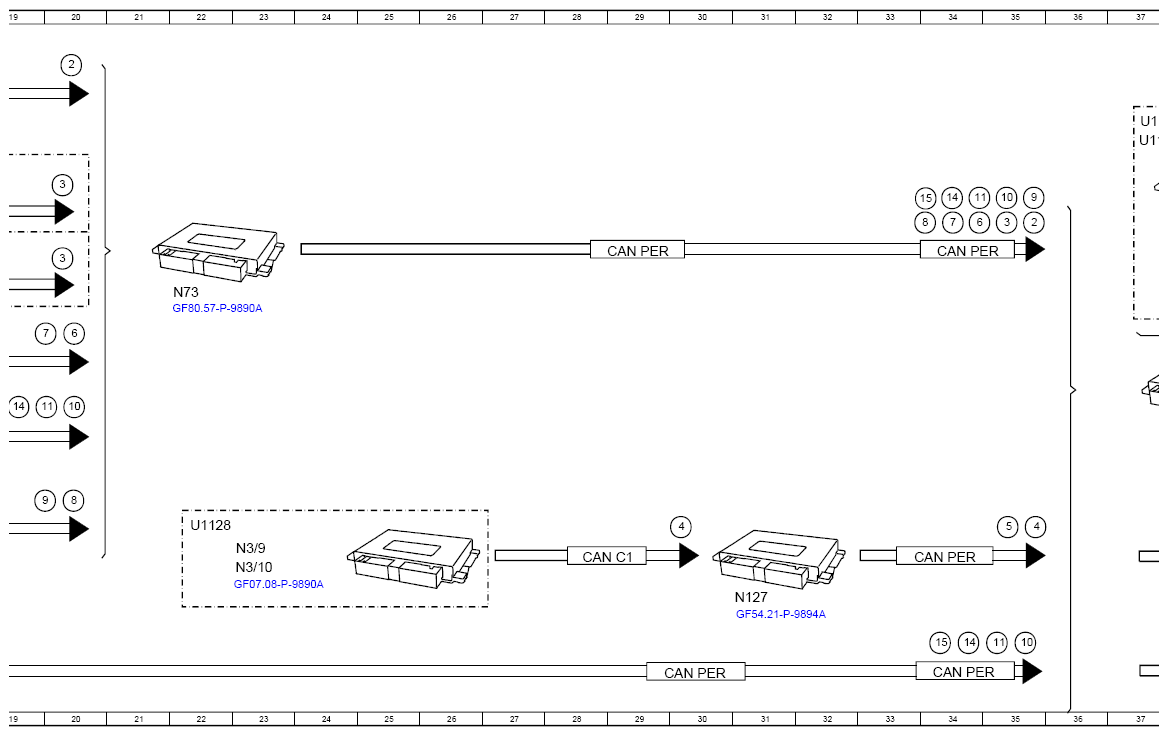

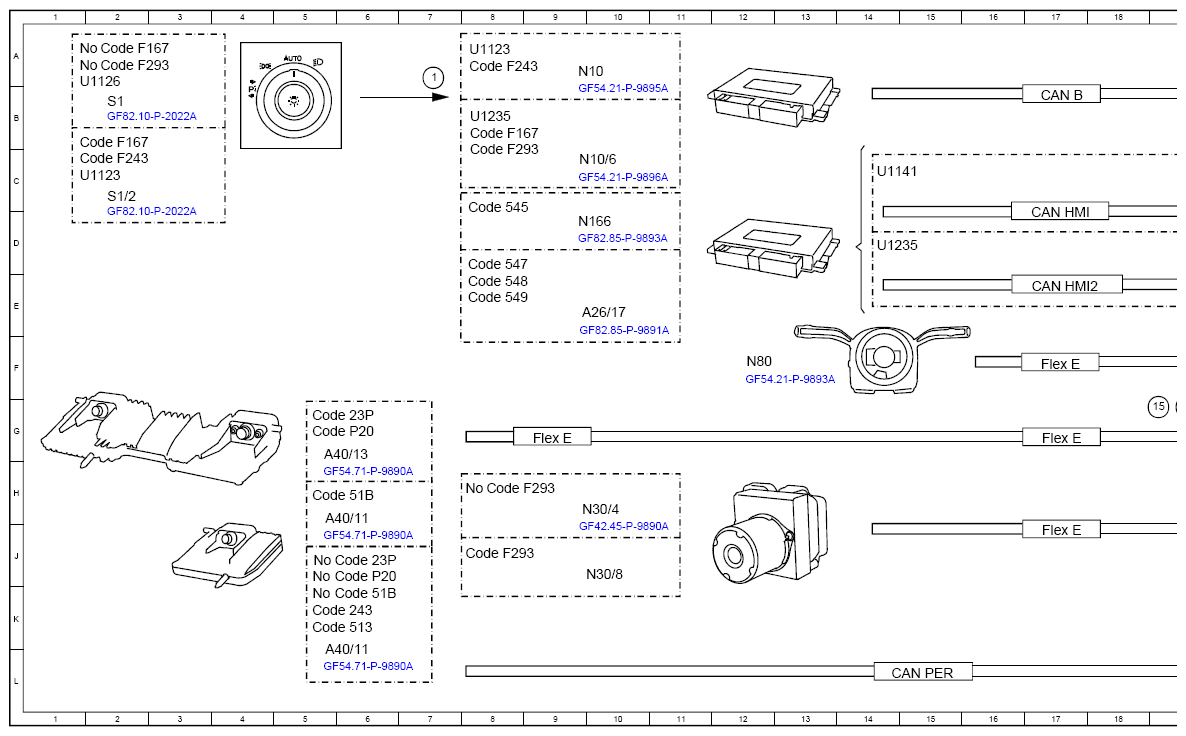

Function Schematic, Actuate Automatic High Beams - PE82.10-P-2507-97A
Model 118, 167, 177, 243, 247 with code 608 (Automatic high beam control (IHC))
Model 118, 167, 177, 247, 293 with code 628 (INTELLIGENT HEADLAMP CONTROL PLUS (IHC+))
Model 213, 238, 257, 290 as of model year 2021 with code 608 (Automatic high beam control (IHC))
Model 213, 238, 257, 290 as of model year 2021 with code 628 (INTELLIGENT HEADLAMP CONTROL PLUS (IHC+))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 7A |
| 10 | Ambient information, data | 20F |
| 10 | Ambient information, data | 35K |
| 10 | Ambient information, data | 49H |
| 10 | Ambient information, data | 35C |
| 11 | Optical headlamp range adjustment, request | 49H |
| 11 | Optical headlamp range adjustment, request | 34C |
| 11 | Optical headlamp range adjustment, request | 35K |
| 11 | Optical headlamp range adjustment, request | 49H |
| 12 | Synchronization, signal | 46F |
| 13 | Headlamp range adjustment actuator motor, actuation | 42C |
| 13 | Headlamp range adjustment actuator motor, actuation | 51C |
| 14 | High beams, request | 34K |
| 14 | High beams, request | 19F |
| 14 | High beams, request | 49H |
| 14 | High beams, request | 34C |
| 15 | Object information, data package | 19F |
| 15 | Object information, data package | 34K |
| 15 | Object information, data package | 49J |
| 15 | Object information, data package | 49J |
| 16 | High beams light distribution, request | 38D |
| 16 | High beams light distribution, request | 47D |
| 17 | Adaptive high beam, actuation | 42C |
| 17 | Adaptive high beam, actuation | 48B |
| 17 | Adaptive high beam, actuation | 51C |
| 17 | Adaptive high beam, actuation | 42D |
| 18 | High beams, actuation | 42D |
| 18 | High beams, actuation | 51E |
| 2 | Low beams, request | 20A |
| 2 | Low beams, request | 35C |
| 3 | Variable light distribution function, status | 35C |
| 3 | Variable light distribution function, status | 20D |
| 3 | Variable light distribution function, status | 20C |
| 4 | Engine running, signal | 30J |
| 4 | Engine running, signal | 35H |
| 4 | Engine running, signal | 47H |
| 5 | Drivetrain operational, signal | 35H |
| 5 | Drivetrain operational, signal | 47H |
| 6 | Combination switch, status | 20E |
| 6 | Combination switch, status | 35C |
| 7 | Steering wheel angle, signal | 19F |
| 7 | Steering wheel angle, signal | 34C |
| 8 | Wheel speed, signal | 20H |
| 8 | Wheel speed, signal | 34C |
| 9 | Speed, turn rate and lateral acceleration, signal | 20H |
| 9 | Speed, turn rate and lateral acceleration, signal | 35C |
| A26/17 | Head unit | 10E |
| A40/11 | Mono multifunction camera | 5L |
| A40/11 | Mono multifunction camera | 5H |
| A40/13 | Stereo multifunction camera | 5G |
| CAN B | Interior CAN | 17B |
| CAN C1 | Drive train CAN | 28J |
| CAN HMI | User interface CAN | 17D |
| CAN HM12 | User interface CAN 2 | 17E |
| CAN PER | Peripherals CAN | 15L |
| CAN PER | Peripherals CAN | 30L |
| CAN PER | Peripherals CAN | 29D |
| CAN PER | Peripherals CAN | 34L |
| CAN PER | Peripherals CAN | 42L |
| CAN PER | Peripherals CAN | 34J |
| CAN PER | Peripherals CAN | 42J |
| CAN PER | Peripherals CAN | 48K |
| CAN PER | Peripherals CAN | 34D |
| CAN PER | Peripherals CAN | 38E |
| CAN PER | Peripherals CAN | 42F |
| CAN PER | Peripherals CAN | 46E |
| Code 23P | Driver assistance package | 5J |
| Code 23P | Driver assistance package | 5G |
| Code 243 | Active Lane Keeping Assist | 5K |
| Code 513 | Traffic Sign Assist | 5K |
| Code 51B | EURO-NCAP | 5H |
| Code 51B | EURO-NCAP | 5K |
| Code 545 | Connect 5 (NTG6) | 8D |
| Code 547 | Connect 20 Entry (NTG6) | 8D |
| Code 548 | Connect 20 MID (NTG6) | 8E |
| Code 549 | Connect 20 HIGH (NTG6) | 8E |
| Code F167 | Model series 167 | 1B |
| Code F167 | Model series 167 | 2A |
| Code F167 | Model series 167 | 8B |
| Code F243 | MODEL SERIES 243 | 43C |
| Code F243 | MODEL SERIES 243 | 1C |
| Code F243 | MODEL SERIES 243 | 8A |
| Code F243 | MODEL SERIES 243 | 51C |
| Code F293 | Model series 293 | 43D |
| Code F293 | Model series 293 | 2A |
| Code F293 | Model series 293 | 8C |
| Code F293 | Model series 293 | 8J |
| Code F293 | Model series 293 | 8H |
| Code F293 | Model series 293 | 51D |
| Code P20 | Driver assistance package PLUS | 5J |
| Code P20 | Driver assistance package PLUS | 5G |
| E1 | Left front lamp unit | 41B |
| E1 | Left front lamp unit | 50B |
| E1n11 | Left front LED matrix lamp unit control unit | 38D |
| E1n9 | Left headlamp control unit | 37G |
| E2n11 | Right front LED matrix lamp unit control unit | 46D |
| E2n9 | Right headlamp control unit | 47G |
| Flex E | Chassis FlexRay | 17F |
| Flex E | Chassis FlexRay | 9G |
| Flex E | Chassis FlexRay | 17J |
| Flex E | Chassis FlexRay | 17G |
| N10 | Signal acquisition and actuation module | 9A |
| N10/6 | Front signal acquisition and actuation module control unit | 10C |
| N127 | Drivetrain control unit | 31K |
| N166 | Head unit/instrument cluster control unit | 10D |
| N3/10 | ME-SFI [ME] control unit | 23J |
| N3/9 | CDI control unit | 23J |
| N30/4 | Electronic Stability Program control unit | 10H |
| N30/8 | Regenerative braking system control unit | 10J |
| N73 | Electronic ignition switch control unit | 22E |
| N80 | Steering column module control unit | 12F |
| S1 | Exterior lights switch | 2B |
| S1/2 | Exterior lights and electric parking brake switch group | 2C |
| U1111 | Valid for model 177 | 37B |
| U1111 | Valid for model 177 | 45B |
| U1121 | Valid for model 167 | 37B |
| U1121 | Valid for model 167 | 45B |
| U1123 | Valid for model 118, 177, 247 | 1C |
| U1123 | Valid for model 118, 177, 247 | 8A |
| U1126 | Valid except model 118, 177, 247 | 1A |
| U1128 | Valid for combustion engine | 22J |
| U1130 | Valid for model 247 | 43D |
| U1130 | Valid for model 247 | 51D |
| U1136 | Valid for model 118 | 43D |
| U1136 | Valid for model 118 | 51D |
| U1141 | Valid except model 213, 238, 257, 290 | 14C |
| U1235 | Valid for model 213, 238, 257, 290 | 43D |
| U1235 | Valid for model 213, 238, 257, 290 | 8B |
| U1235 | Valid for model 213, 238, 257, 290 | 51D |
| U1235 | Valid for model 213, 238, 257, 290 | 14D |
