Antenna System, Detailed Information - GF82.62-P-0020B
Model 167
Overview:
This document contains information on:
- Overview of system components
- Telephone antennas connection
- Emergency call system antennas connection
- GPS antenna connection
- Rear window antennas connection
- Windshield antennas connection
Overview of system components
In the following, the locations of system components of the antenna system are shown.
| Antenna | Function | Item | SA code |
|---|---|---|---|

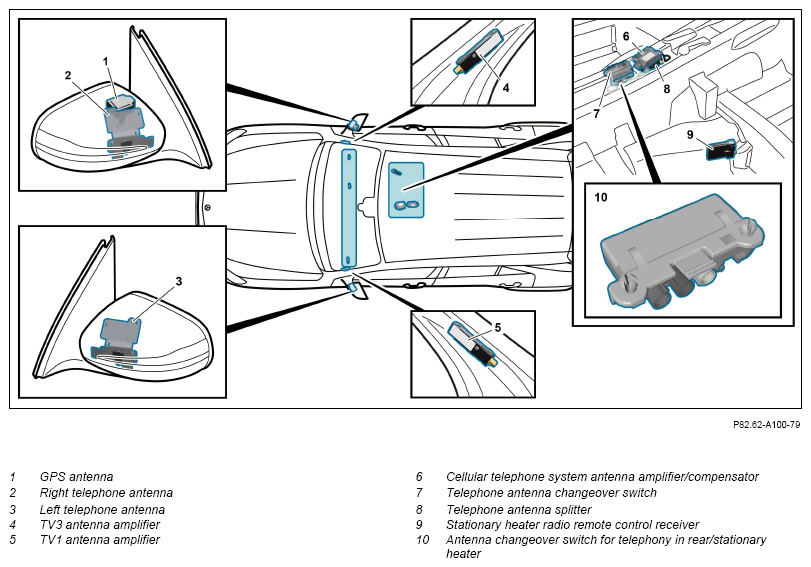

| Left telephone antenna (3) | Telephone, stationary heater | Left outside mirror | B24 (Remote control for stationary heater)/380 (Car telephony package)/899 (Multifunction telephony) |
| Right telephone antenna (2) | Telephone, stationary heater | Right outside mirror | B24 (Remote control for stationary heater)/380 (Car telephony package)/899 (Multifunction telephony) |
| GPS antenna (1) | Navigation | Passenger-side outside mirror | 362 (HERMES LTE)/355 (Extended functions MBUX) |

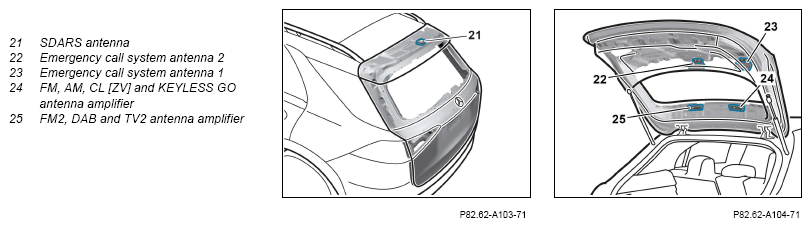

| Emergency call system antenna 1 (23) | Emergency call | Right liftgate holder | 362 (HERMES LTE) |
| Emergency call system antenna 2 (22) | Emergency call | Liftgate center holder | 362 (HERMES LTE) |
| SDARS antenna (21) | Radio mode | Upper center liftgate | 536 (SIRIUS satellite radio) |

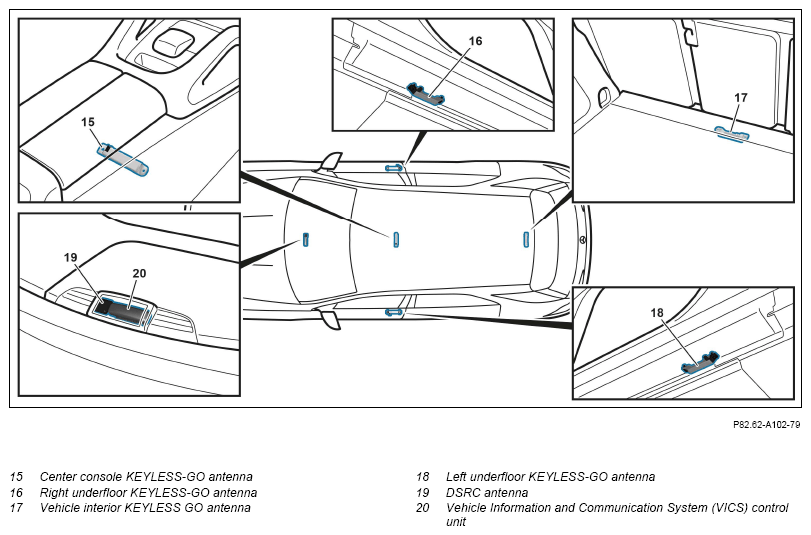

| Left underbody KEYLESS-GO antenna (18) | KEYLESS-GO | Underbody in area of left B-pillar | 889 (KEYLESS-GO) |
| Right underbody KEYLESS-GO antenna (16) | KEYLESS-GO | Underbody in area of right B-pillar | 889 (KEYLESS-GO) |
| Center console KEYLESS-GO antenna (15) | KEYLESS-GO | Center console | 889 (KEYLESS-GO) |
| Vehicle interior KEYLESS-GO antenna (17) | KEYLESS-GO | Front load compartment floor | 889 (KEYLESS-GO) |
| DSRC antenna (19) | Toll system | Instrument panel center | 498 (Japan version)/835 (Additional parts for South Korea vehicles) |
| Vehicle Information and Communication System (VICS) control unit (20) | Navigation | Instrument panel center | 498 (Japan version) |

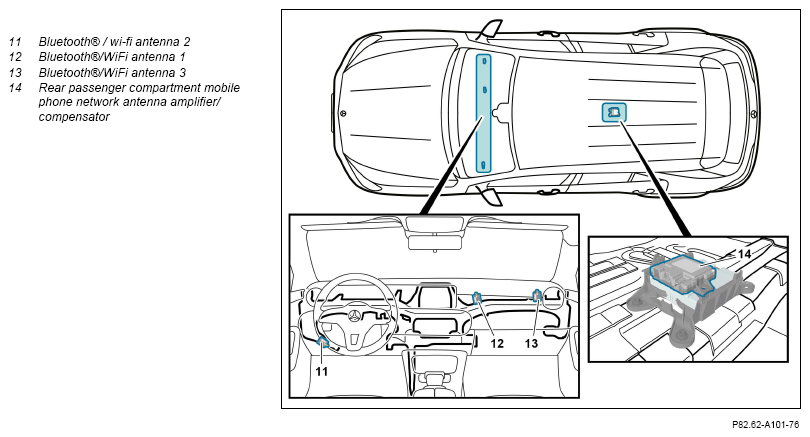

| Bluetooth®/WiFi antenna (11) | Telephone, media mode, internet | Driver's side cockpit crossmember | - |
| Bluetooth®/WiFi antenna (13) | Telephone, media mode, internet | Front passenger side cockpit crossmember | 548 (Connect 20 MID (NTG6))/549 (Connect 20 High (NTG6)) |
| Bluetooth®/WiFi antenna (12) | Telephone, media mode, internet | Instrument panel center | 549 (Connect 20 High (NTG6)) |
| Rear window antennas | Radio mode, TV mode, KEYLESS-GO, central locking system | Rear window | - |
| Windshield antenna | TV mode | Windshield | 865 (TV tuner) |
| Receiver, antenna splitter, amplifier, changeover switch, compensator | Function | Item | SA code |
|---|---|---|---|
| Cellular telephone system antenna amplifier/compensator (6) | Telephone | Center console | 899 (Multifunction telephony) |
| Telephone antenna changeover switch (7) | Telephone | Center console | 380 (Car telephony package) + 899 (Multifunction telephony) |
| Telephone antenna splitter (8) | Telephone, stationary heater | Center console | 380 (Car telephony package)/856 (Telephone handset in rear armrest)/899 (Multifunction telephony)/B24 (Remote control for stationary heater) |
| Antenna changeover switch for telephony in rear/stationary heater (10) | Telephony in rear, stationary heater | Center console | 856 (Telephone handset in rear armrest) + B24 (Remote control for stationary heater) |
| Stationary heater radio remote control receiver (9) | Stationary heater | Under front passenger seat | B24 (Remote control for stationary heater) |
| Rear passenger compartment mobile phone network antenna amplifier/compensator (14) | Telephony in rear passenger compartment | On center tunnel between rear seats (2nd seat row) | 856 (Telephone handset in rear armrest) |
| TV1 antenna amplifier (5) | TV mode | Left A-pillar | 865 (TV tuner) |
| TV3 antenna amplifier (4) | TV mode | Right A-pillar | 865 (TV tuner) |
| FM2, DAB and TV2 antenna amplifier (25) | Radio mode, TV mode | Upper left liftgate | - |
| FM, AM, CL and KEYLESS-GO antenna amplifier (24) | Radio mode, KEYLESS-GO, central locking system | Upper right liftgate | - |
Telephone antennas connection
The left telephone antenna (3) and the right telephone antenna (2) are connected to the telephone antenna splitter (8). Depending on the vehicle equipment, the antenna connection may differ:
- Vehicle with code 899 (Multifunction telephony) or
with code 380 (Car telephony package) or
with code B24 (Remote control for stationary heater):
Directly to the mobile phone cradle control unit, to the telephone control unit or to the stationary heater radio remote control receiver (9) via a simple telephone antenna splitter (8)
- Vehicles with code 899 (Multifunction telephony) or with code 380 (Car telephony package) and
with code B24 (Remote control for stationary heater) or with code 856 (Telephone handset in rear armrest):
To the mobile phone cradle control unit (or to the telephone control unit) and to the stationary heater radio remote control receiver (9) (or to the rear mobile phone cradle) via a 2-way telephone antenna splitter (8)
- On vehicles with code 899 (Multifunction telephony) and with code 380 (Car telephony package), the antenna signal is forwarded accordingly by the telephone antenna changeover switch (7) to the mobile phone cradle control unit or to the telephone control unit.
- On vehicles with code 856 (Telephone handset in rear armrest) and with code B24 (Remote control for stationary heater), the antenna signal is forwarded accordingly by the antenna changeover switch for telephony in the rear/stationary heater (10) to the rear mobile phone cradle control unit or to the stationary heater radio remote control receiver (9).
On vehicles with code 899 (Multifunction telephony), the antenna signal to the mobile phone cradle control unit is amplified by the cellular telephone system antenna amplifier/compensator (6).
On vehicles with code 856 (Telephone handset in rear armrest), the antenna signal to the rear mobile phone cradle control unit is amplified by the rear mobile telephone network antenna amplifier/compensator (14).
Emergency call system antennas connection
Emergency call system antenna 1 (23) and emergency call system antenna 2 (22) are directly connected to the telematics services control unit.
GPS antenna connection
Depending on the vehicle equipment, the following connection options are available for the GPS antenna (1):
- Vehicles with code 362 (HERMES LTE):
Directly to the telematics services control unit
If the vehicle is also equipped with code 355 (Extended functions MBUX): The signal from the GPS antenna is forwarded to the multimedia system control by a GPS splitter integrated into the telematics services control unit.
- Vehicles without code 362 (HERMES LTE) but with code 355 (Extended functions MBUX):
Directly to multimedia system control
Rear window antennas connection
The antennas in the rear window are connected via 2 antenna amplifiers:
- FM, AM, CL and KEYLESS-GO antenna amplifier (24)
- FM2, DAB and TV2 antenna amplifier (25)
Windshield antennas connection
The antennas in the windshield are connected via 2 antenna amplifiers:
- TV1 antenna amplifier (5)
- TV3 antenna amplifier (4)
