Fabricate Drilling Template For Luggage Net Holder - AZ68.50-P-0007-01ME

Model 167

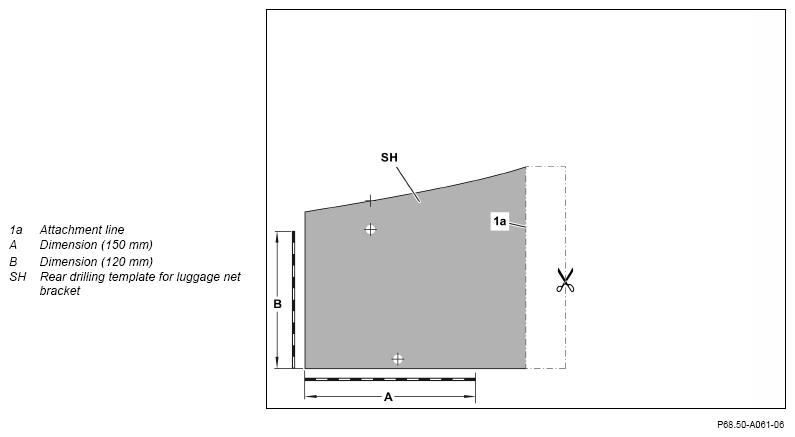

1. Print out drawing of rear drilling template for luggage net bracket (SH).
2. Determine dimensions (A, B) of print-out.
3. Determine scaling factor.

   Divide dimension specified (A) by dimension determined (A).

   Divide dimension specified (B) by dimension determined (B).

4. Copy printed out rear drilling template for luggage net bracket (SH) to original size using determined scaling factor.
5. Check dimension (A) and dimension (B) of copy.
6. Cut out rear drilling template for luggage net bracket (SH).

   Rear drilling template for luggage net bracket (SH)

   Courtesy of MERCEDES-BENZ USA

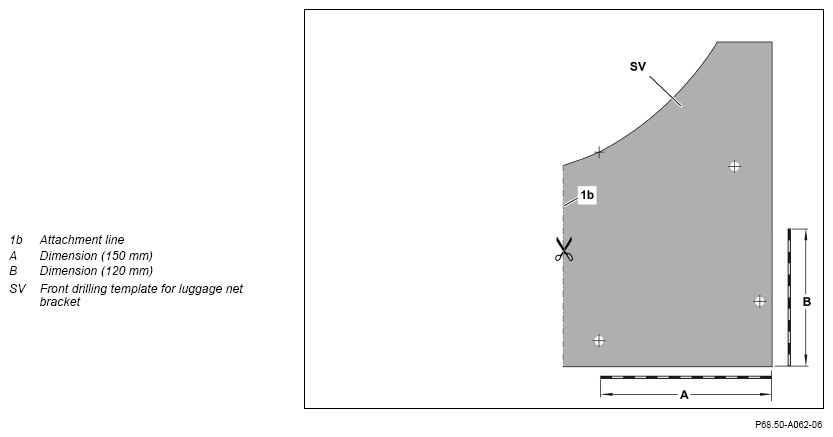

7. Print out drawing of front drilling template for luggage net bracket (SV).
8. Determine dimensions (A, B) of print-out.
9. Determine scaling factor.

   Divide dimension specified (A) by dimension determined (A).

   Divide dimension specified (B) by dimension determined (B).

10. Copy printed out front drilling template for luggage net bracket (SV) to original size using determined scaling factor.
11. Check dimension (A) and dimension (B) of copy.
12. Cut out front drilling template for luggage net bracket (SV).

    Front drilling template for luggage net bracket (SV)

    Courtesy of MERCEDES-BENZ USA

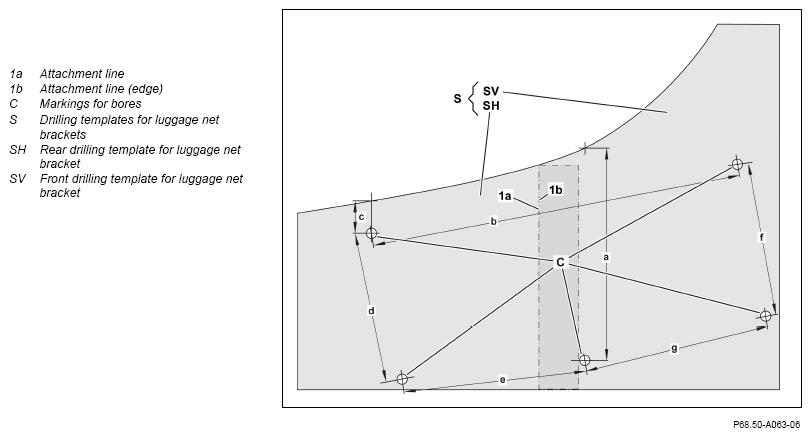

    Joining the drilling templates

    Courtesy of MERCEDES-BENZ USA

13. Align rear drilling template for luggage net bracket (SH) and front drilling template for luggage net bracket (SV) at attachment lines (1a, 1b).
14. Fix rear drilling template for luggage net bracket (SH) and front drilling template for luggage net bracket (SV) in place using tape.
15. Check dimensions.

    Dimension "a" = 165.6 mm

    Dimension "b" = 285.9 mm

    Dimension "c" = 25.3 mm

    Dimension "d" = 113.9 mm

    Dimension "e" = 142.7 mm

    Dimension "f" = 118.4 mm

    Dimension "g" = 141.3 mm

16. Using a suitable tool, pierce markings in center for bores (C) in produced drilling templates for luggage net brackets(S).
