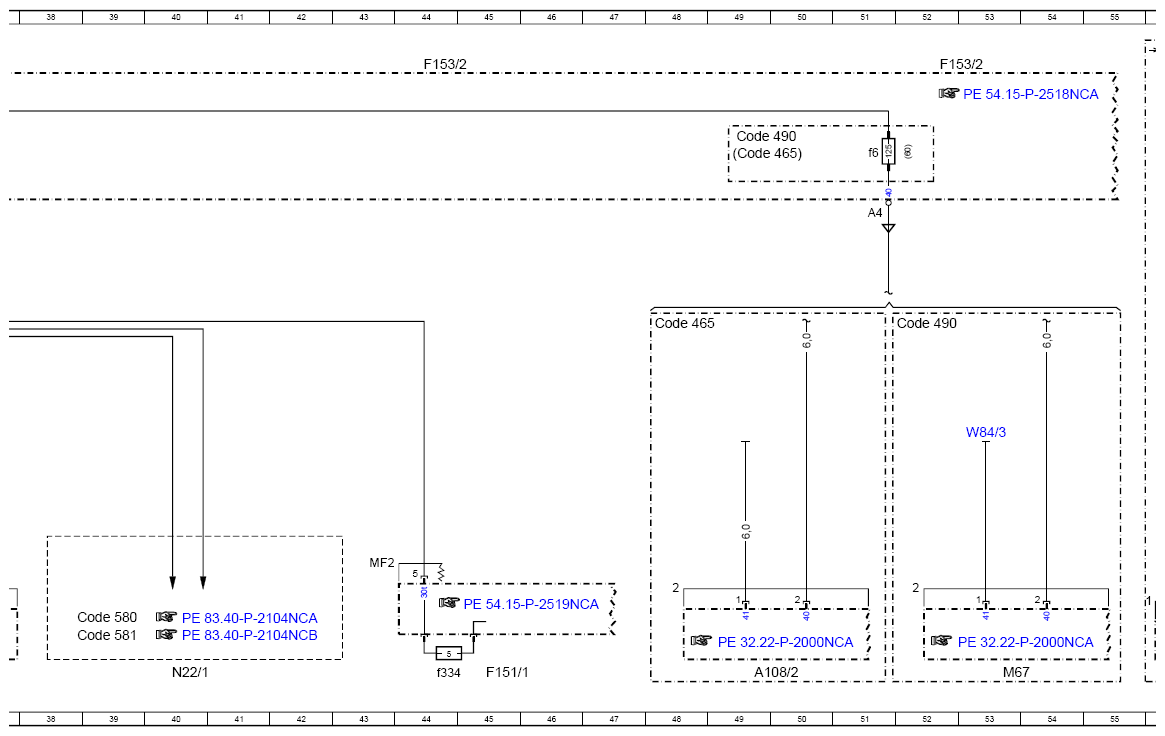

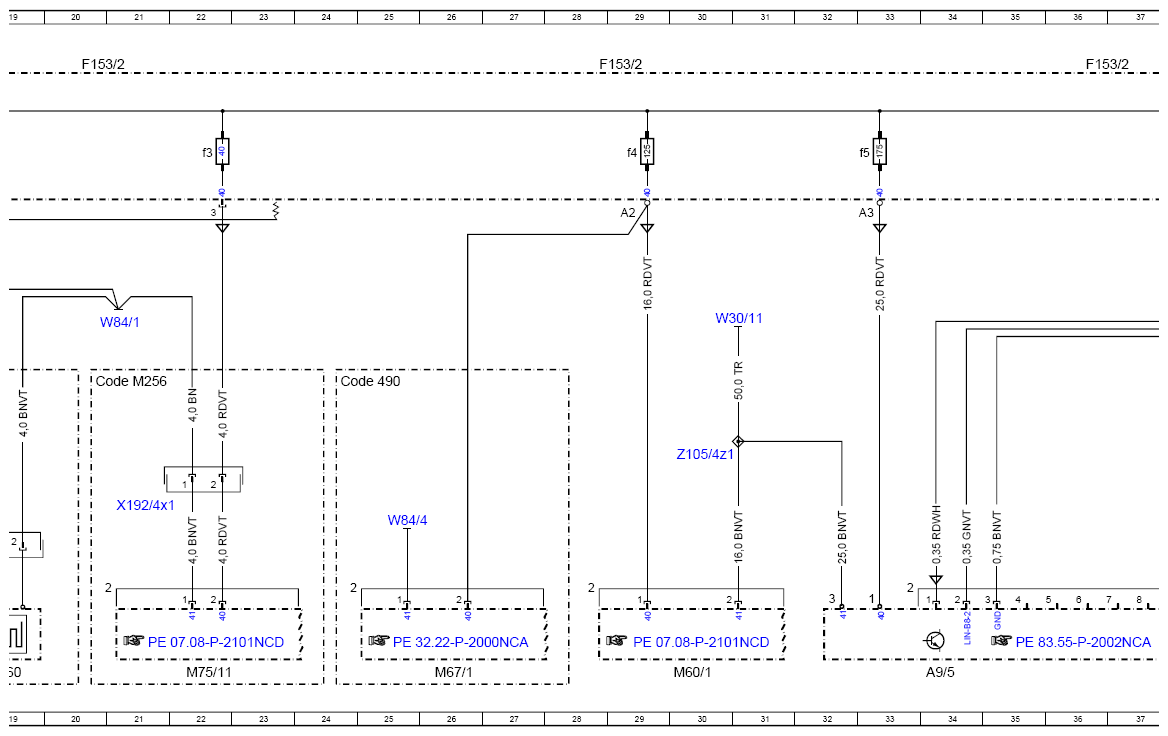

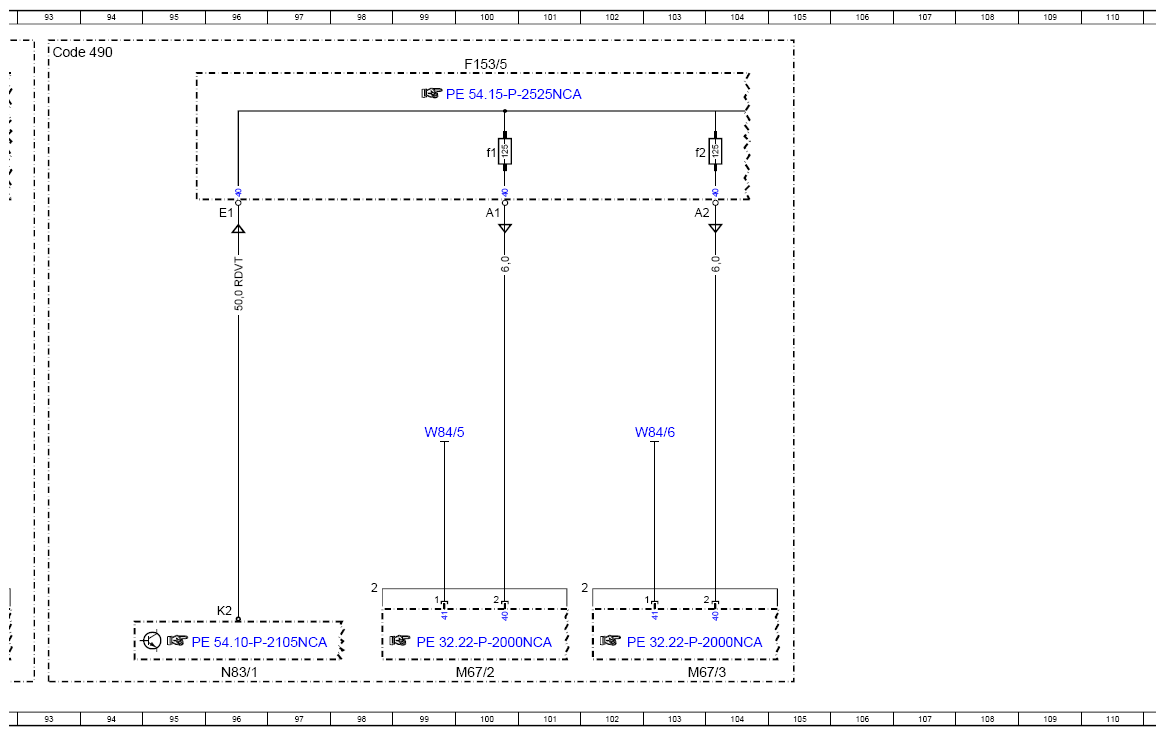

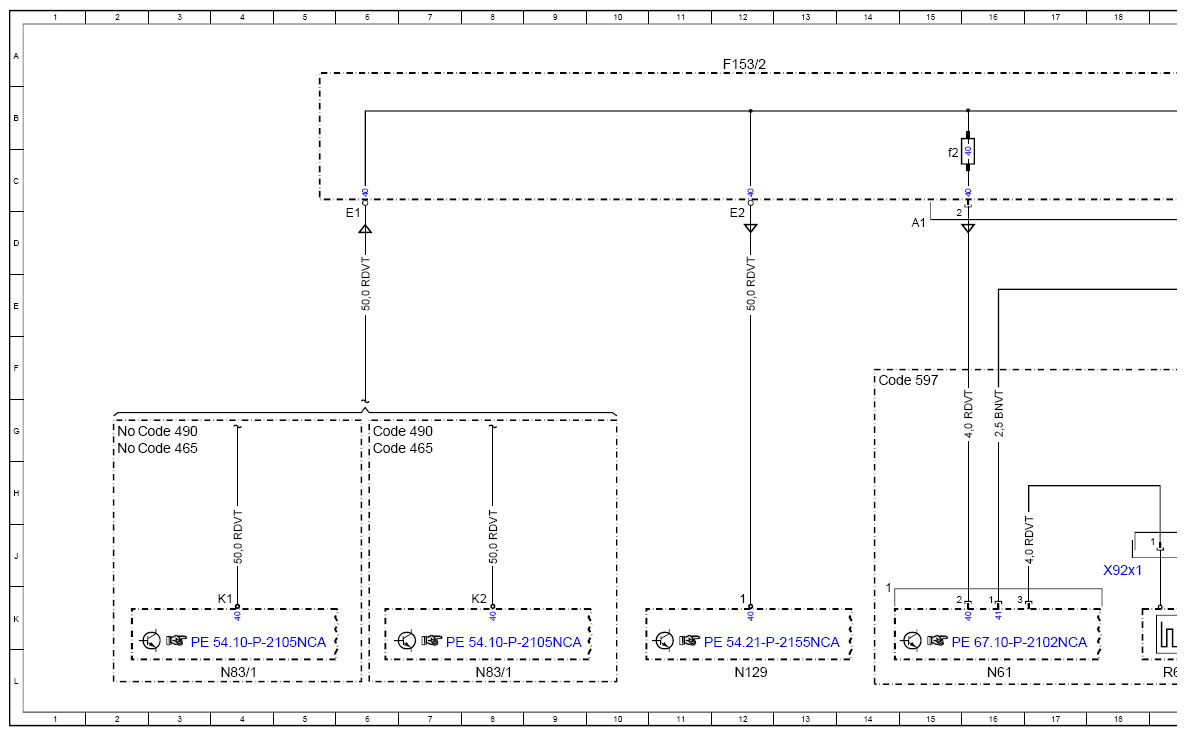

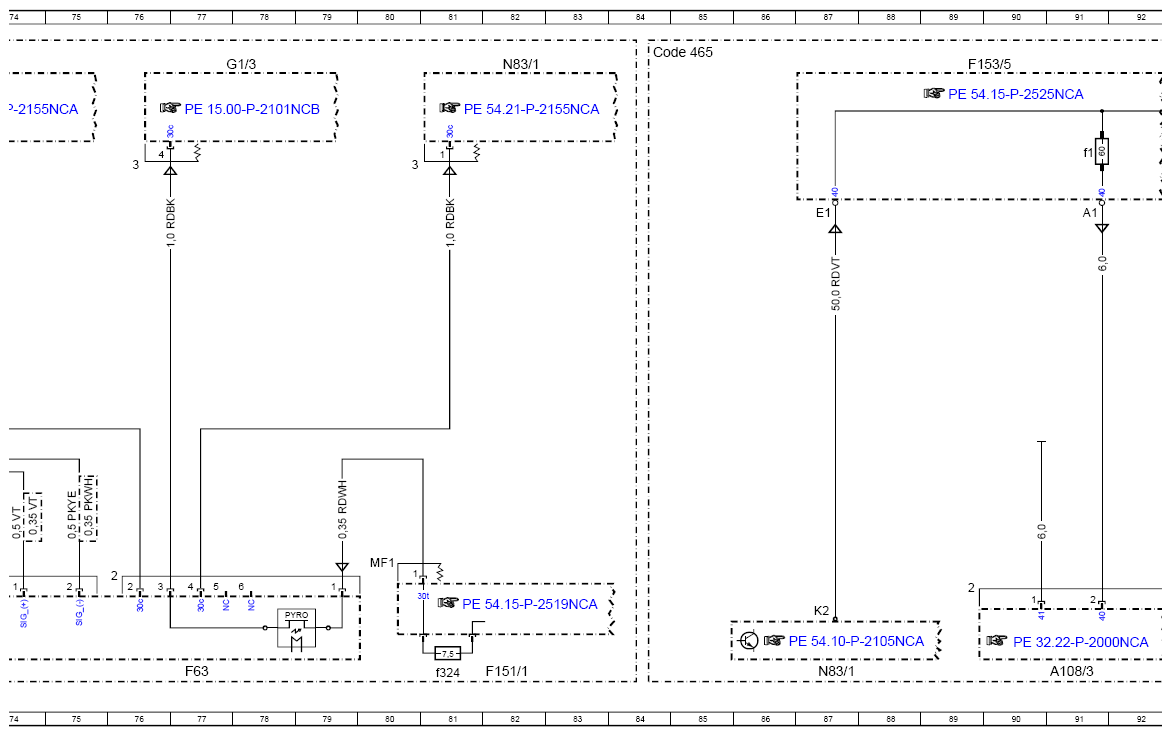

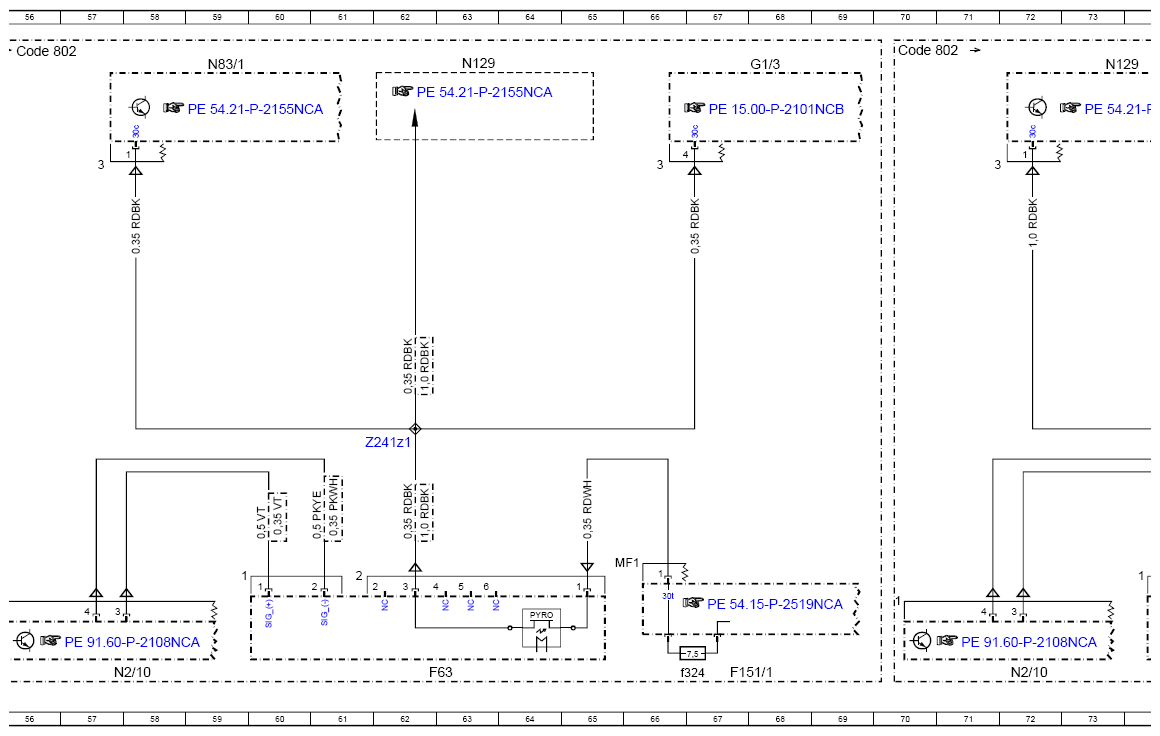

Wiring Diagram Of 48V On-Board Electrical System - PE54.10-P-2008-97NCA
Model 167 with code B01 (48V technology)
| Code: | Designation: | Position: |
|---|---|---|

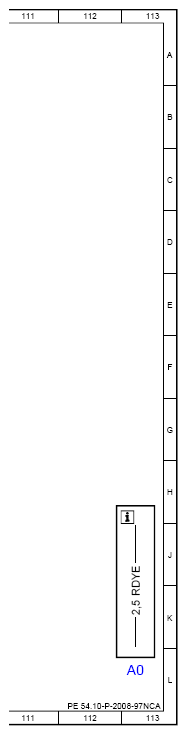

| A0 | Use of wiring diagrams | 113L |
| A108/2 | Front active roll stabilization electric controller unit | 49L |
| A108/3 | Rear active roll stabilization electric controller unit | 91L |
| A9/5 | Electric refrigerant compressor | 34L |
| Code 465 | Electric active roll stabilization (EARS) | 84A |
| Code 465 | Electric active roll stabilization (EARS) | 2G |
| Code 465 | Electric active roll stabilization (EARS) | 6G |
| Code 465 | Electric active roll stabilization (EARS) | 48E |
| Code 465 | Electric active roll stabilization (EARS) | 49C |
| Code 490 | Electrohydraulic suspension | 2G |
| Code 490 | Electrohydraulic suspension | 6G |
| Code 490 | Electrohydraulic suspension | 24F |
| Code 490 | Electrohydraulic suspension | 52E |
| Code 490 | Electrohydraulic suspension | 49B |
| Code 490 | Electrohydraulic suspension | 93A |
| Code 580 | Air conditioning | 38K |
| Code 581 | Automatic air conditioning | 38K |
| Code 597 | Heated windshield | 14F |
| Code 802 | YoM 21/1 | 56A |
| Code 802 | YoM 21/1 | 70A |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 20F |
| F151/1 | Passenger-side A-pillar fuse box | 45L |
| F151/1 | Passenger-side A-pillar fuse box | 67L |
| F151/1 | Passenger-side A-pillar fuse box | 82L |
| F151/1f324 | Fuse 324 | 66L |
| F151/1f324 | Fuse 324 | 81L |
| F151/1f334 | Fuse 334 | 44L |
| F153/2 | Engine compartment 48V fuse box | 12A |
| F153/2 | Engine compartment 48V fuse box | 20A |
| F153/2 | Engine compartment 48V fuse box | 29A |
| F153/2 | Engine compartment 48V fuse box | 36A |
| F153/2 | Engine compartment 48V fuse box | 44A |
| F153/2 | Engine compartment 48V fuse box | 52A |
| F153/2f2 | Fuse 2 | 15C |
| F153/2f3 | Fuse 3 | 22C |
| F153/2f4 | Fuse 4 | 29C |
| F153/2f5 | Fuse 5 | 33C |
| F153/2f6 | Fuse 6 | 51C |
| F153/4f1 | Fuse 1 | 100C |
| F153/5 | Trunk 48 V on-board electrical system fuse box | 89A |
| F153/5 | Trunk 48 V on-board electrical system fuse box | 100A |
| F153/5f1 | Fuse 1 | 91C |
| F153/5f2 | Fuse 2 | 103C |
| F63 | Pyrofuse | 62L |
| F63 | Pyrofuse | 77L |
| G1/3 | 48 V on-board electrical system battery | 68A |
| G1/3 | 48 V on-board electrical system battery | 78A |
| M60/1 | Electric additional compressor | 30L |
| M67 | Left front suspension strut electrohydraulic controller unit | 53L |
| M67/1 | Right front suspension strut electrohydraulic controller unit | 26L |
| M67/2 | Left rear suspension strut electrohydraulic controller unit | 100L |
| M67/3 | Right rear suspension strut electrohydraulic controller unit | 103L |
| M75/11 | Electric coolant pump | 22L |
| N129 | Starter generator control unit | 12L |
| N129 | Starter generator control unit | 63A |
| N129 | Starter generator control unit | 73A |
| N2/10 | Supplemental restraint system control unit | 58L |
| N2/10 | Supplemental restraint system control unit | 72L |
| N22/1 | Climate control control unit | 40L |
| N61 | Windshield heater control unit | 16L |
| N83/1 | DC/DC converter control unit | 96L |
| N83/1 | DC/DC converter control unit | 59A |
| N83/1 | DC/DC converter control unit | 4L |
| N83/1 | DC/DC converter control unit | 8L |
| N83/1 | DC/DC converter control unit | 87L |
| N83/1 | DC/DC converter control unit | 82A |
| R60 | Windshield heater | 19L |
| W30/11 | Underbody tml. 41 ground point | 30E |
| W84/1 | Windshield heater ground point | 21E |
| W84/3 | Left front electrohydraulic controller unit ground point (48 V) | 53G |
| W84/4 | Right front electrohydraulic controller unit ground point (48 V), left front longitudinal member | 25J |
| W84/5 | Left rear electrohydraulic controller unit ground point (48 V) | 99G |
| W84/6 | Right rear electrohydraulic controller unit ground point (48 V) | 103G |
| X192/4x1 | Coolant pump electrical connector | 21H |
| X92x1 | Windshield heater electrical connector | 18J |
| Z105/4z1 | Circuit 41 connector sleeve | 30G |
| Z241z1 | Circuit 30c connector sleeve | 62G |
