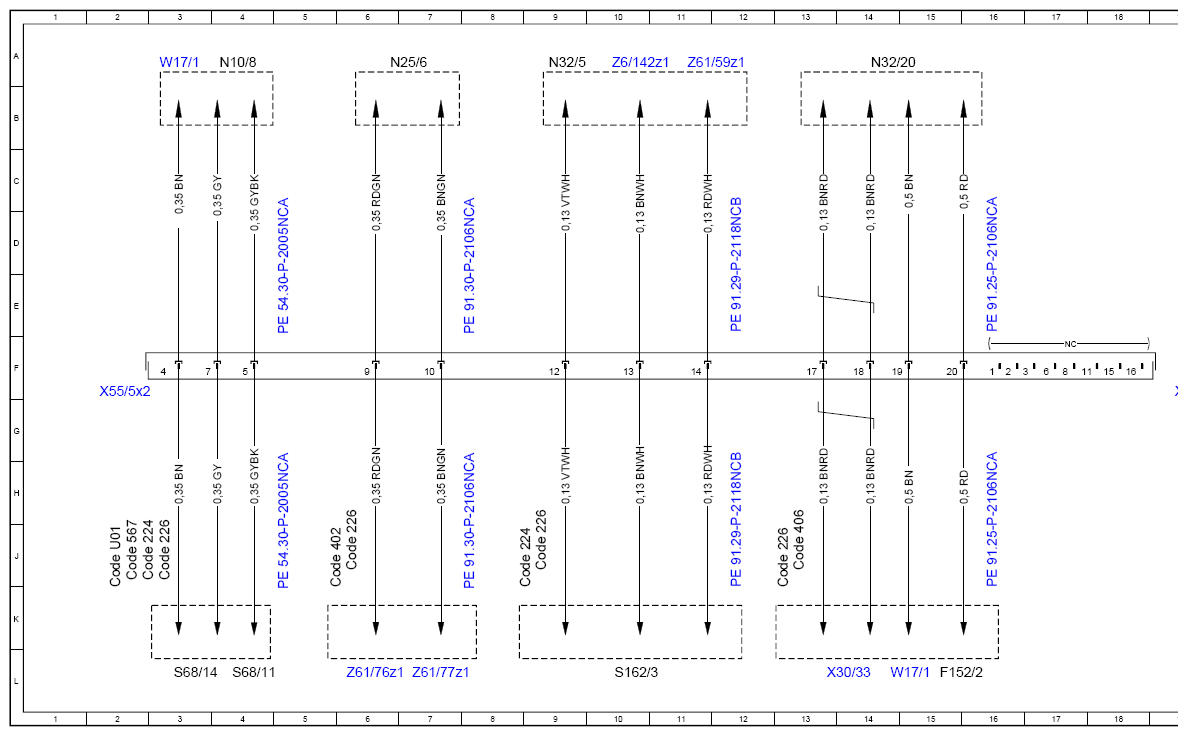

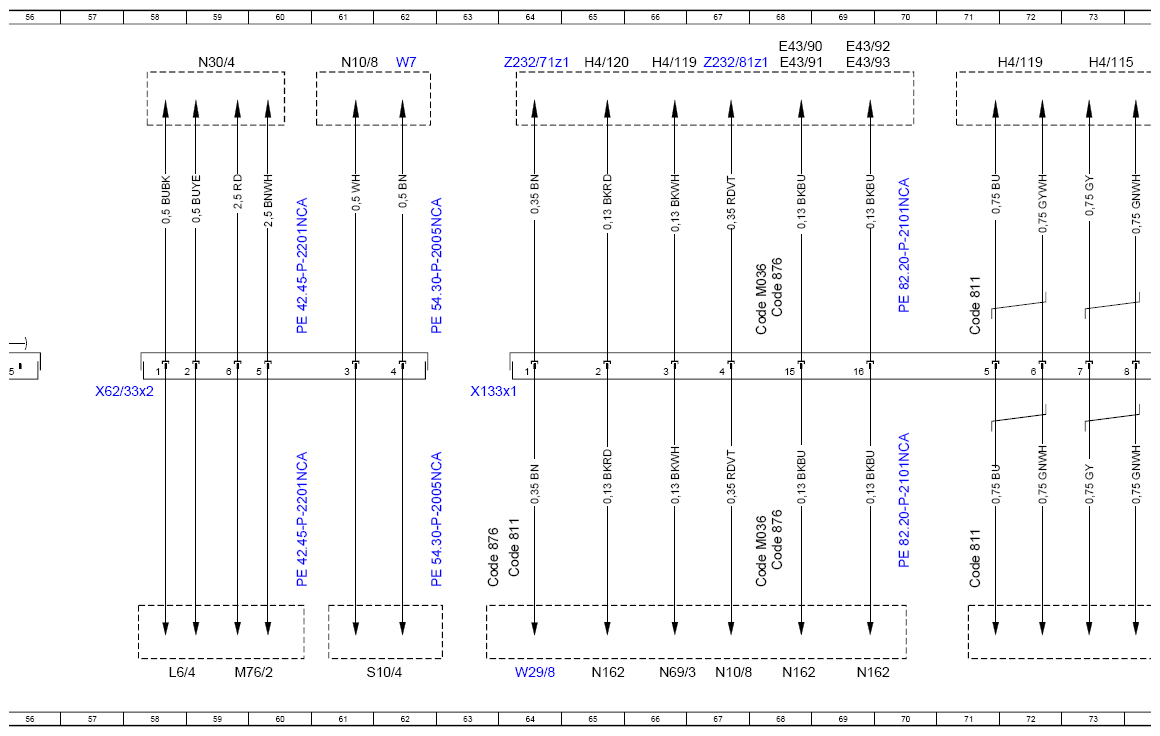

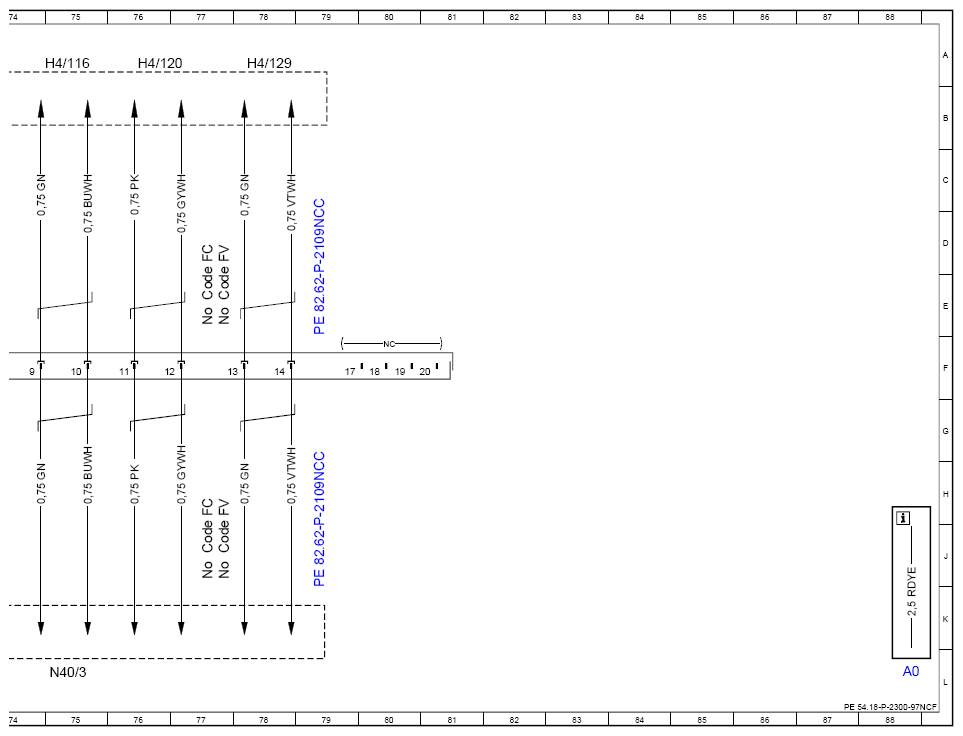

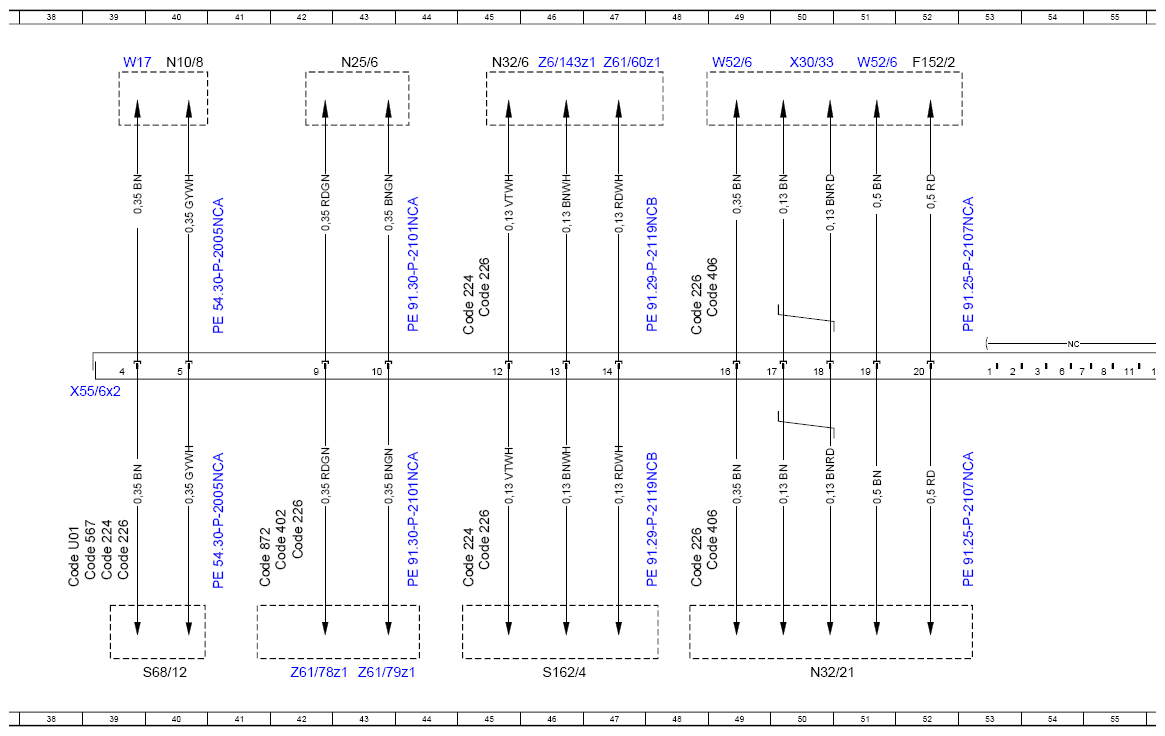

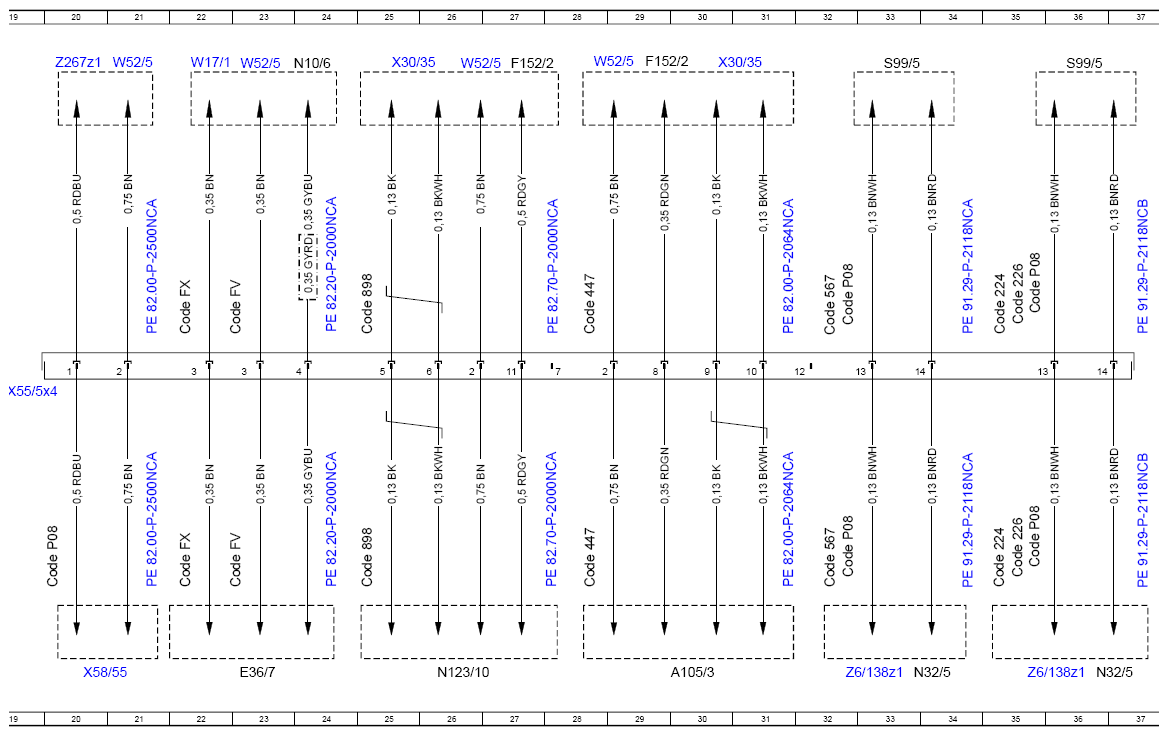

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97NCF
Model 167 Connector X55/5x2, X55/5x4, X55/6x2, X62/33x2, X133x1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 88L |
| A105/3 | Touchscreen | 30L |
| Code 224 | Design rear individual seats | 3J |
| Code 224 | Design rear individual seats | 9J |
| Code 224 | Design rear individual seats | 35J |
| Code 224 | Design rear individual seats | 35E |
| Code 224 | Design rear individual seats | 39J |
| Code 224 | Design rear individual seats | 45J |
| Code 224 | Design rear individual seats | 45E |
| Code 226 | 7-seater with 3rd seat row | 3J |
| Code 226 | 7-seater with 3rd seat row | 13J |
| Code 226 | 7-seater with 3rd seat row | 9J |
| Code 226 | 7-seater with 3rd seat row | 6J |
| Code 226 | 7-seater with 3rd seat row | 35J |
| Code 226 | 7-seater with 3rd seat row | 35E |
| Code 226 | 7-seater with 3rd seat row | 39J |
| Code 226 | 7-seater with 3rd seat row | 48J |
| Code 226 | 7-seater with 3rd seat row | 48E |
| Code 226 | 7-seater with 3rd seat row | 45J |
| Code 226 | 7-seater with 3rd seat row | 45E |
| Code 226 | 7-seater with 3rd seat row | 42J |
| Code 402 | Rear comfort seats, incl. seat heating and seat ventilation | 6J |
| Code 402 | Rear comfort seats, incl. seat heating and seat ventilation | 42J |
| Code 406 | Multicontour seats in rear | 13J |
| Code 406 | Multicontour seats in rear | 49J |
| Code 406 | Multicontour seats in rear | 49E |
| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 28J |
| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 28E |
| Code 567 | Vario rear bench seat | 2J |
| Code 567 | Vario rear bench seat | 32J |
| Code 567 | Vario rear bench seat | 32E |
| Code 567 | Vario rear bench seat | 39J |
| Code 811 | Advanced sound system | 64J |
| Code 811 | Advanced sound system | 71K |
| Code 811 | Advanced sound system | 71E |
| Code 872 | Seat heater in rear passenger compartment | 42J |
| Code 876 | Interior lights package | 63J |
| Code 876 | Interior lights package | 68E |
| Code 876 | Interior lights package | 68J |
| Code 898 | Wireless charging in rear passenger compartment | 25J |
| Code 898 | Wireless charging in rear passenger compartment | 25E |
| Code FC | COUPE | 77E |
| Code FC | COUPE | 77J |
| Code FV | LONG SEDAN | 23E |
| Code FV | LONG SEDAN | 23J |
| Code FV | LONG SEDAN | 77E |
| Code FV | LONG SEDAN | 77J |
| Code FX | Special version | 22J |
| Code FX | Special version | 22E |
| Code M036 | Maybach version | 68E |
| Code M036 | Maybach version | 68J |
| Code P08 | Rear passenger compartment Comfort Package | 20J |
| Code P08 | Rear passenger compartment Comfort Package | 32J |
| Code P08 | Rear passenger compartment Comfort Package | 32E |
| Code P08 | Rear passenger compartment Comfort Package | 35J |
| Code P08 | Rear passenger compartment Comfort Package | 35E |
| Code U01 | Rear seat belt status indicator in instrument cluster | 2J |
| Code U01 | Rear seat belt status indicator in instrument cluster | 38J |
| E36/7 | Rear armrest folding compartment illumination | 23L |
| E43/90 | Left front panoramic sliding sunroof ambient lighting | 68A |
| E43/91 | Right front panoramic sliding sunroof ambient lighting | 68A |
| E43/92 | Left rear panoramic sliding sunroof ambient lighting | 69A |
| E43/93 | Right rear panoramic sliding sunroof ambient lighting | 69A |
| F152/2 | Rear fuse and relay module | 15L |
| F152/2 | Rear fuse and relay module | 29A |
| F152/2 | Rear fuse and relay module | 27A |
| F152/2 | Rear fuse and relay module | 52A |
| H4/115 | Left front center overhead control panel midrange speaker (3D sound) | 73A |
| H4/116 | Right front center overhead control panel midrange speaker (3D sound) | 75A |
| H4/119 | Left rear midrange speaker | 72A |
| H4/119 | Left rear midrange speaker | 66A |
| H4/120 | Right rear midrange speaker | 65A |
| H4/120 | Right rear midrange speaker | 76A |
| H4/129 | Center rear headliner midrange speaker | 78A |
| L6/4 | Right rear axle rpm sensor | 58L |
| M76/2 | Right electric parking brake actuator motor | 59L |
| N10/6 | Front central control unit | 24A |
| N10/8 | Rear central control unit | 61A |
| N10/8 | Rear central control unit | 4A |
| N10/8 | Rear central control unit | 40A |
| N10/8 | Rear central control unit | 67L |
| N123/10 | Rear passenger compartment mobile phone cradle control unit | 26L |
| N162 | Ambiance illumination control unit | 65L |
| N162 | Ambiance illumination control unit | 68L |
| N162 | Ambiance illumination control unit | 69L |
| N25/6 | Rear seat heaters control unit | 7A |
| N25/6 | Rear seat heaters control unit | 43A |
| N30/4 | Electronic Stability Program (ESP®) control unit | 59A |
| N32/20 | Left rear multicontour seat control unit | 14A |
| N32/21 | Right rear multicontour seat control unit | 50L |
| N32/5 | Left rear seat control unit | 9A |
| N32/5 | Left rear seat control unit | 34L |
| N32/5 | Left rear seat control unit | 36L |
| N32/6 | Right rear seat control unit | 45A |
| N40/3 | Sound system amplifier control unit | 75L |
| N69/3 | Left rear door control unit | 66L |
| S10/4 | Right rear brake wear sensor | 62L |
| S162/3 | Left 3rd seat row armrest easy entry and exit feature button | 10L |
| S162/4 | Right 3rd seat row armrest easy entry and exit feature button | 46L |
| S68/11 | Left rear seat belt buckle switch | 4L |
| S68/12 | Right rear seat belt buckle switch | 40L |
| S68/14 | Center rear seat belt buckle switch | 3L |
| S99/5 | Center console stowage compartment limit switch | 33A |
| S99/5 | Center console stowage compartment limit switch | 36A |
| W17 | Right rear seat ground point | 39A |
| W17/1 | Left rear seat ground point | 3A |
| W17/1 | Left rear seat ground point | 15L |
| W17/1 | Left rear seat ground point | 22A |
| W29/8 | Left D-pillar ground point | 64L |
| W52/5 | Left center longitudinal member ground point | 21A |
| W52/5 | Left center longitudinal member ground point | 28A |
| W52/5 | Left center longitudinal member ground point | 23A |
| W52/5 | Left center longitudinal member ground point | 26A |
| W52/6 | Right center longitudinal member ground point | 51A |
| W52/6 | Right center longitudinal member ground point | 49A |
| W7 | Right wheelhouse trunk ground point | 62A |
| X133x1 | Roof/vehicle interior electrical connector | 63F |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 14L |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 50A |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 25A |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 30A |
| X55/5x2 | Left rear seat adjustment unit connector block | 2F |
| X55/5x4 | Left rear seat adjustment unit connector block | 19F |
| X55/6x2 | Right rear seat adjustment unit connector block | 39F |
| X58/55 | 2nd seat row center USB port | 20L |
| X62/33x2 | Rear axle electrical connector, right distributor | 58F |
| Z232/71z1 | Ground connection connector sleeve | 64A |
| Z232/81z1 | Voltage supply connector sleeve | 67A |
| Z267z1 | Circuit 30t power supply connector sleeve | 20A |
| Z6/138z1 | Left 2nd seat row seat cushion adjustment connector sleeve | 33L |
| Z6/138z1 | Left 2nd seat row seat cushion adjustment connector sleeve | 35L |
| Z6/142z1 | Left 2nd seat row switch connector sleeve | 10A |
| Z6/143z1 | Right 2nd seat row switch end sleeve | 46A |
| Z61/59z1 | Left folding seat backrest switch lighting end sleeve | 11A |
| Z61/60z1 | Right folding seat backrest switch lighting end sleeve | 47A |
| Z61/76z1 | Left 2nd seat row seat ventilation supply end sleeve | 6L |
| Z61/77z1 | Left 2nd seat row seat ventilation ground connection end sleeve | 7L |
| Z61/78z1 | Right 2nd seat row seat ventilation supply end sleeve | 42L |
| Z61/79z1 | Right 2nd seat row seat ventilation ground connection end sleeve | 43L |
