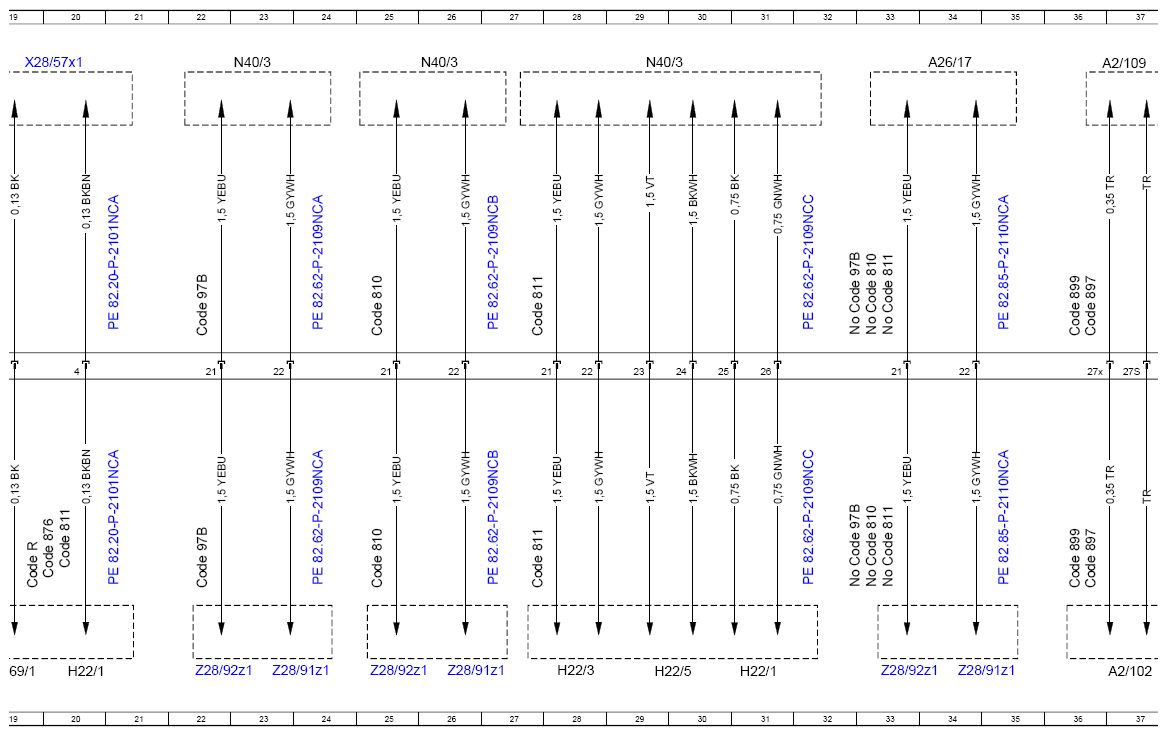

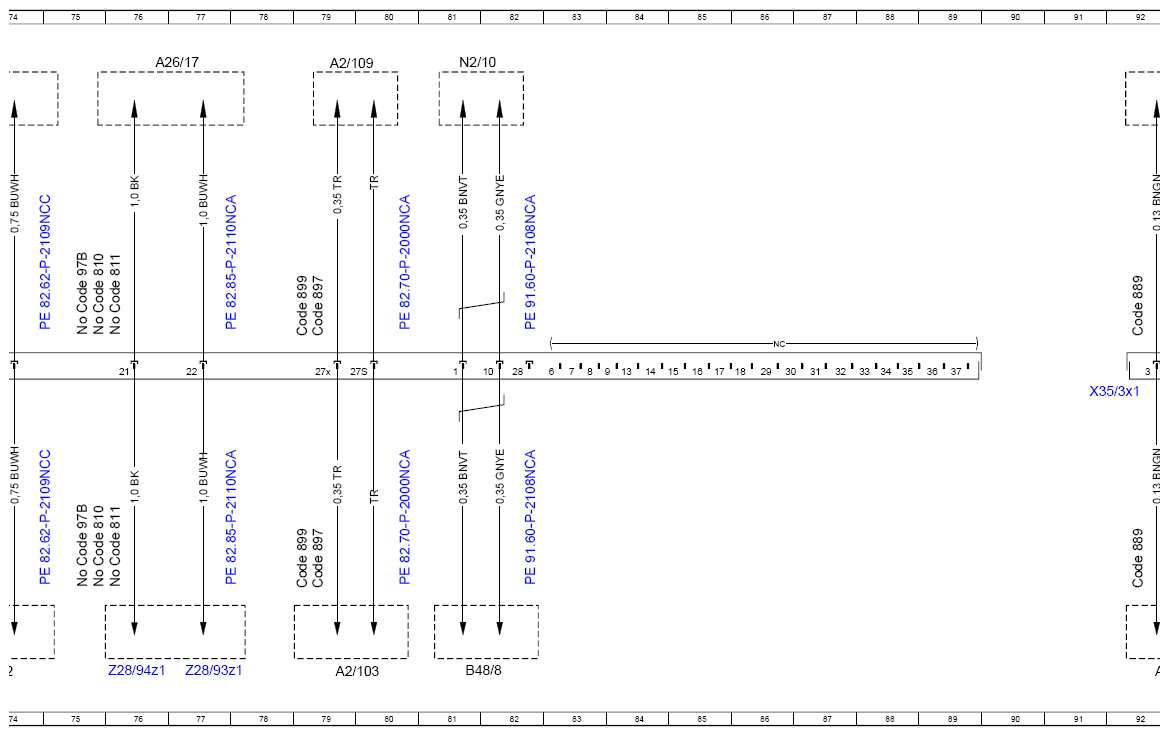

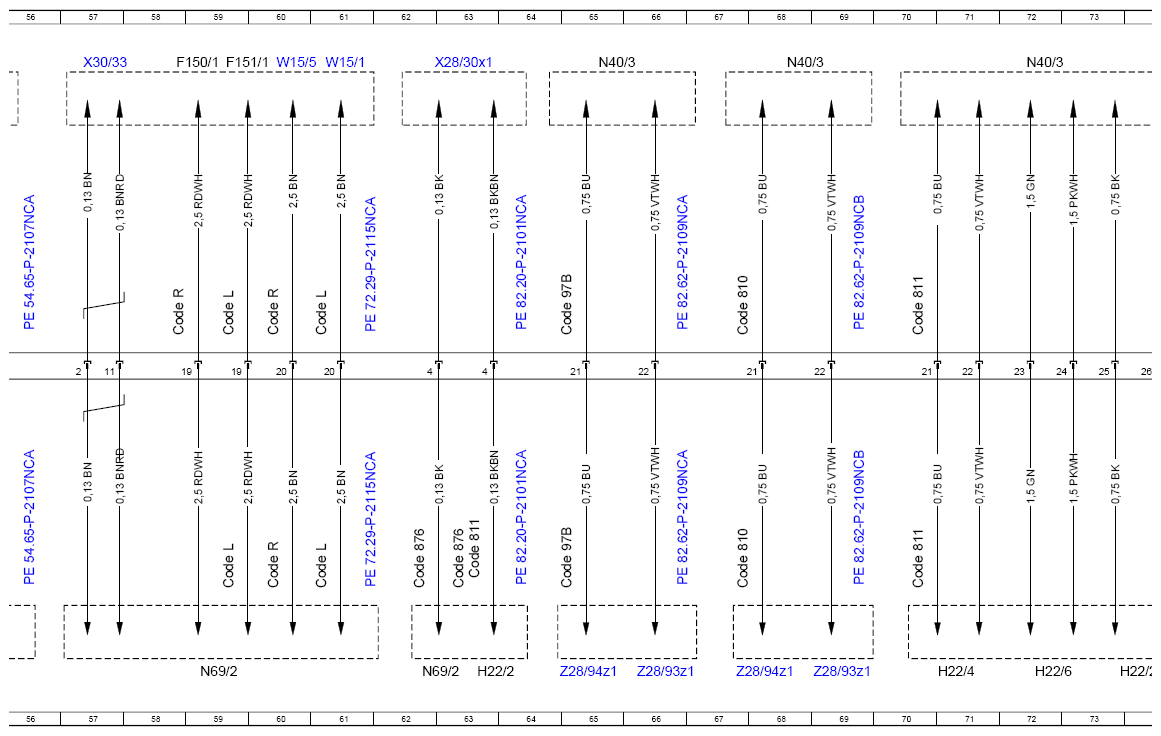

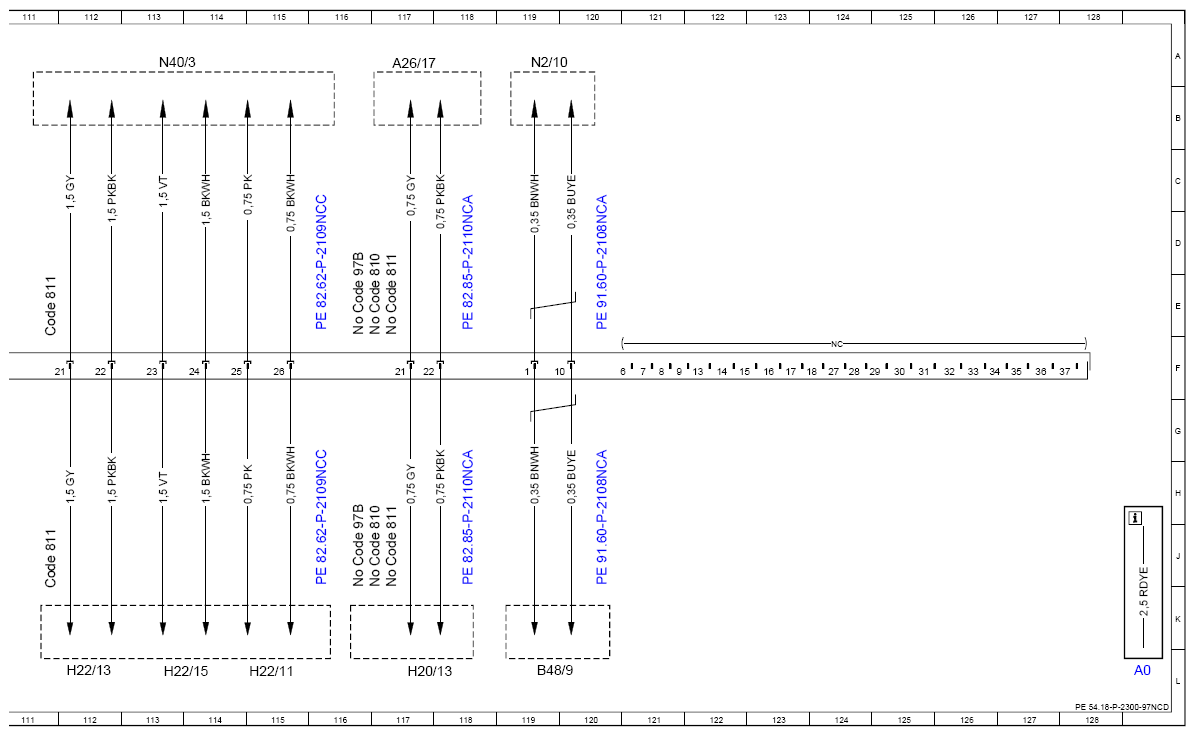

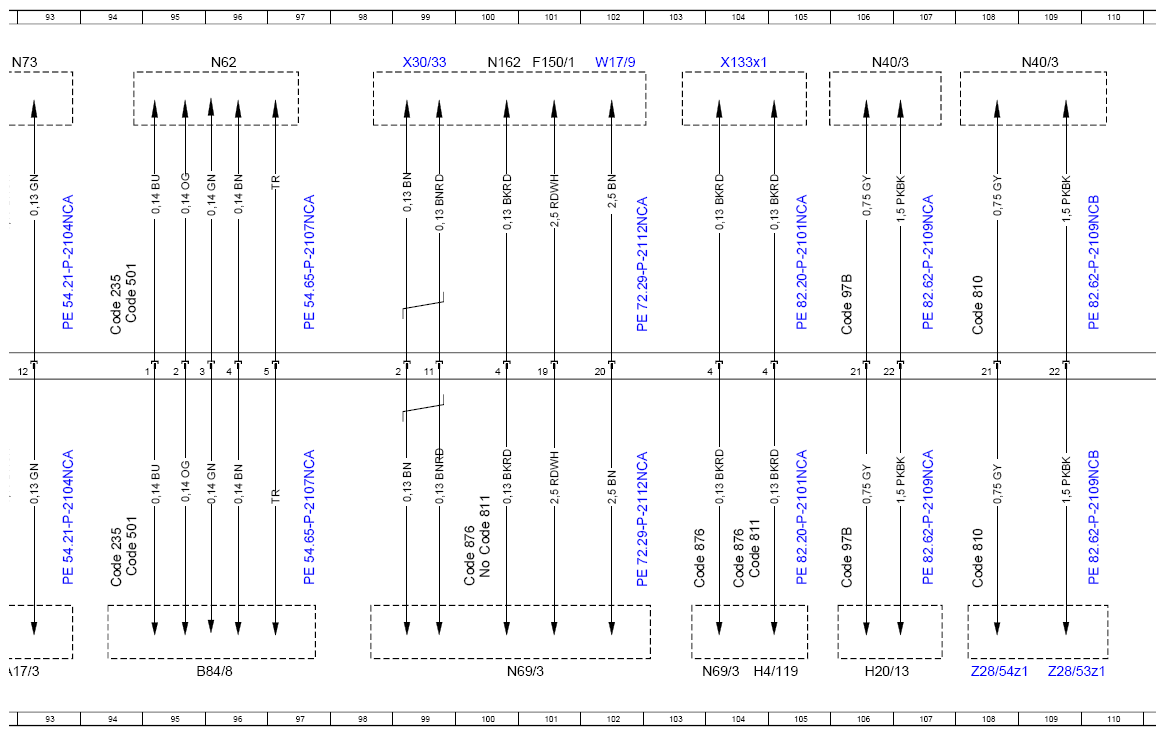

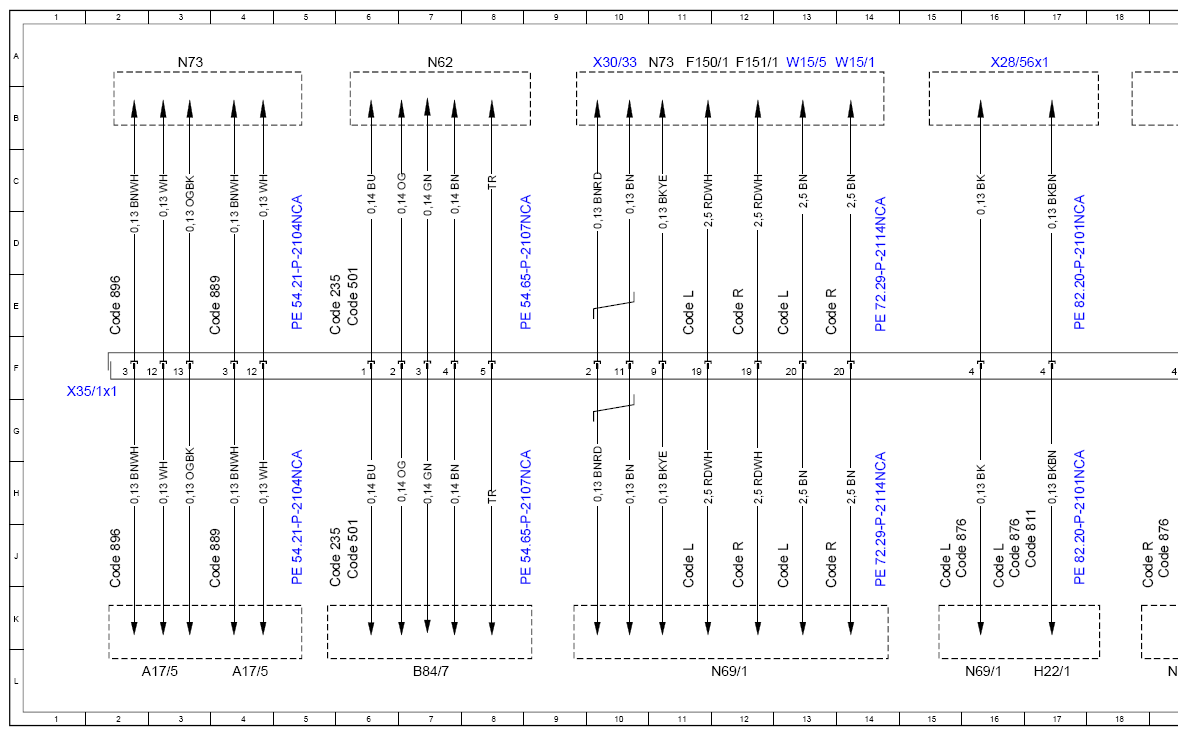

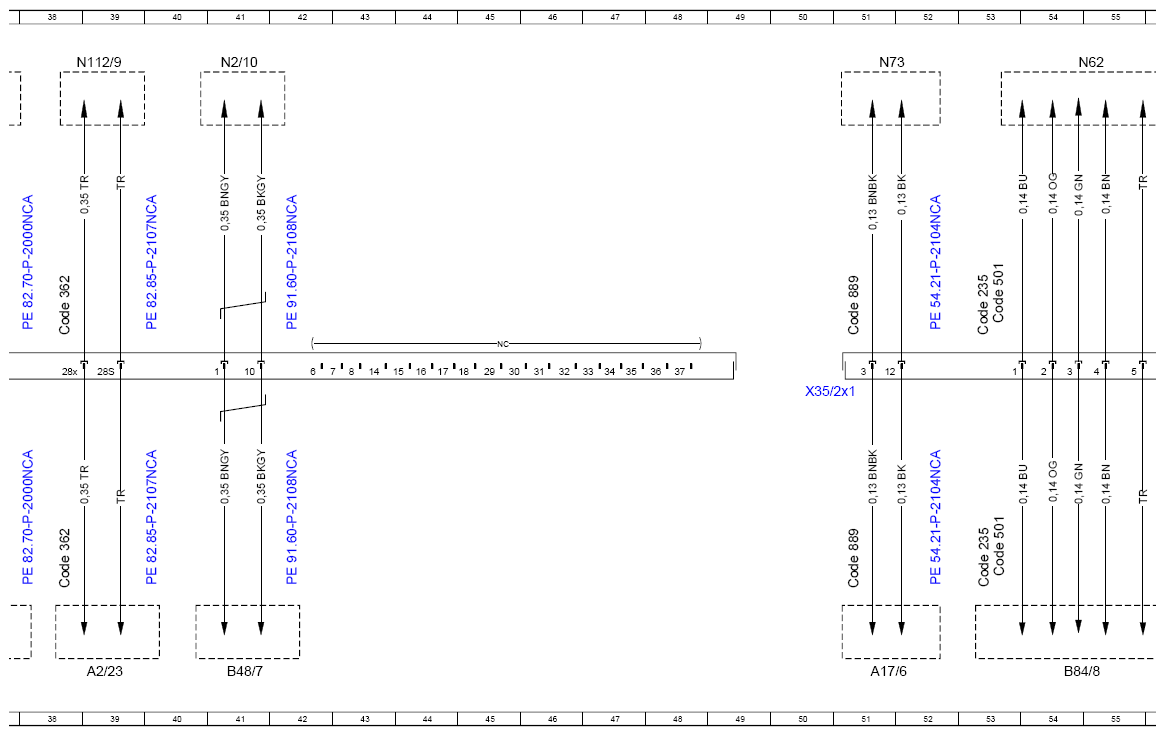

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97NCD
Model 167 Connector X35/1x1, X35/2x1, X35/3x1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 129L |
| A17/3 | Left rear KEYLESS GO door handle | 92L |
| A17/5 | Driver door KEYLESS-GO door handle | 3L |
| A17/5 | Driver door KEYLESS-GO door handle | 4L |
| A17/6 | Front passenger door KEYLESS-GO door handle | 51L |
| A2/102 | Left telephone antenna | 37L |
| A2/103 | Right telephone antenna | 79L |
| A2/109 | Telephone antenna splitter | 37A |
| A2/109 | Telephone antenna splitter | 79A |
| A2/23 | GPS antenna | 39L |
| A26/17 | Head unit | 34A |
| A26/17 | Head unit | 76A |
| A26/17 | Head unit | 117A |
| B48/7 | Left front door pressure sensor | 41L |
| B48/8 | Right front door pressure sensor | 81L |
| B48/9 | Left rear door pressure sensor | 119L |
| B84/7 | Left outside mirror 360° camera | 7L |
| B84/8 | Right outside mirror 360° camera | 54L |
| B84/8 | Right outside mirror 360° camera | 95L |
| Code 235 | Active Parking Assist with PARKTRONIC | 6J |
| Code 235 | Active Parking Assist with PARKTRONIC | 6E |
| Code 235 | Active Parking Assist with PARKTRONIC | 53J |
| Code 235 | Active Parking Assist with PARKTRONIC | 53E |
| Code 235 | Active Parking Assist with PARKTRONIC | 94J |
| Code 235 | Active Parking Assist with PARKTRONIC | 94E |
| Code 362 | HERMES LTE | 38K |
| Code 362 | HERMES LTE | 38E |
| Code 501 | 360° camera | 6J |
| Code 501 | 360° camera | 6E |
| Code 501 | 360° camera | 53J |
| Code 501 | 360° camera | 53E |
| Code 501 | 360° camera | 94J |
| Code 501 | 360° camera | 94E |
| Code 810 | Sound system | 25K |
| Code 810 | Sound system | 25E |
| Code 810 | Sound system | 33E |
| Code 810 | Sound system | 33J |
| Code 810 | Sound system | 67K |
| Code 810 | Sound system | 67E |
| Code 810 | Sound system | 75E |
| Code 810 | Sound system | 75J |
| Code 810 | Sound system | 108K |
| Code 810 | Sound system | 108E |
| Code 810 | Sound system | 117E |
| Code 810 | Sound system | 117J |
| Code 811 | Advanced sound system | 27K |
| Code 811 | Advanced sound system | 27E |
| Code 811 | Advanced sound system | 33E |
| Code 811 | Advanced sound system | 33J |
| Code 811 | Advanced sound system | 63J |
| Code 811 | Advanced sound system | 70K |
| Code 811 | Advanced sound system | 70E |
| Code 811 | Advanced sound system | 76E |
| Code 811 | Advanced sound system | 76J |
| Code 811 | Advanced sound system | 104J |
| Code 811 | Advanced sound system | 111K |
| Code 811 | Advanced sound system | 111E |
| Code 811 | Advanced sound system | 117E |
| Code 811 | Advanced sound system | 117J |
| Code 811 | Advanced sound system | 100J |
| Code 811 | Advanced sound system | 17J |
| Code 811 | Advanced sound system | 20J |
| Code 876 | Interior lights package | 62K |
| Code 876 | Interior lights package | 63K |
| Code 876 | Interior lights package | 103K |
| Code 876 | Interior lights package | 104K |
| Code 876 | Interior lights package | 100J |
| Code 876 | Interior lights package | 16J |
| Code 876 | Interior lights package | 16J |
| Code 876 | Interior lights package | 19J |
| Code 876 | Interior lights package | 20J |
| Code 889 | KEYLESS-GO | 4K |
| Code 889 | KEYLESS-GO | 4E |
| Code 889 | KEYLESS-GO | 51K |
| Code 889 | KEYLESS-GO | 51E |
| Code 889 | KEYLESS-GO | 92K |
| Code 889 | KEYLESS-GO | 92E |
| Code 896 | Vehicle access and drive authorization via mobile phone | 2K |
| Code 896 | Vehicle access and drive authorization via mobile phone | 2E |
| Code 897 | Wireless mobile phone charging | 36K |
| Code 897 | Wireless mobile phone charging | 36E |
| Code 897 | Wireless mobile phone charging | 79K |
| Code 897 | Wireless mobile phone charging | 79E |
| Code 899 | Wireless phone charging at front and antenna | 36K |
| Code 899 | Wireless phone charging at front and antenna | 36E |
| Code 899 | Wireless phone charging at front and antenna | 79K |
| Code 899 | Wireless phone charging at front and antenna | 79E |
| Code 97B | Engine noise reduction via speaker | 22K |
| Code 97B | Engine noise reduction via speaker | 22E |
| Code 97B | Engine noise reduction via speaker | 33E |
| Code 97B | Engine noise reduction via speaker | 33J |
| Code 97B | Engine noise reduction via speaker | 65K |
| Code 97B | Engine noise reduction via speaker | 65E |
| Code 97B | Engine noise reduction via speaker | 75E |
| Code 97B | Engine noise reduction via speaker | 75J |
| Code 97B | Engine noise reduction via speaker | 106K |
| Code 97B | Engine noise reduction via speaker | 106E |
| Code 97B | Engine noise reduction via speaker | 116E |
| Code 97B | Engine noise reduction via speaker | 116J |
| Code L | LEFT-HAND DRIVE | 11K |
| Code L | LEFT-HAND DRIVE | 13K |
| Code L | LEFT-HAND DRIVE | 11E |
| Code L | LEFT-HAND DRIVE | 13E |
| Code L | LEFT-HAND DRIVE | 59E |
| Code L | LEFT-HAND DRIVE | 61E |
| Code L | LEFT-HAND DRIVE | 59K |
| Code L | LEFT-HAND DRIVE | 61K |
| Code L | LEFT-HAND DRIVE | 16K |
| Code L | LEFT-HAND DRIVE | 15K |
| Code R | RIGHT-HAND DRIVE | 12K |
| Code R | RIGHT-HAND DRIVE | 14K |
| Code R | RIGHT-HAND DRIVE | 12E |
| Code R | RIGHT-HAND DRIVE | 14E |
| Code R | RIGHT-HAND DRIVE | 58E |
| Code R | RIGHT-HAND DRIVE | 60E |
| Code R | RIGHT-HAND DRIVE | 60K |
| Code R | RIGHT-HAND DRIVE | 19K |
| Code R | RIGHT-HAND DRIVE | 19K |
| F150/1 | Starter battery pre-fuse box | 11A |
| F150/1 | Starter battery pre-fuse box | 59A |
| F150/1 | Starter battery pre-fuse box | 101A |
| F151/1 | Passenger-side A-pillar fuse box | 12A |
| F151/1 | Passenger-side A-pillar fuse box | 59A |
| H20/13 | Left rear mid-range speaker (Standard) | 106L |
| H20/13 | Left rear mid-range speaker (Standard) | 117L |
| H22/1 | Left front tweeter (High End) | 31L |
| H22/1 | Left front tweeter (High End) | 17L |
| H22/1 | Left front tweeter (High End) | 20L |
| H22/11 | Left rear tweeter (High End) | 115L |
| H22/13 | Left rear mid-range speaker (High End) | 112L |
| H22/15 | Left rear bass speaker (High End) | 113L |
| H22/2 | Right front tweeter (High End) | 63L |
| H22/2 | Right front tweeter (High End) | 74L |
| H22/3 | Left front mid-range speaker (High End) | 28L |
| H22/4 | Right front mid-range speaker (High End) | 71L |
| H22/5 | Left front bass speaker (High End) | 29L |
| H22/6 | Right front bass speaker (High End) | 72L |
| H4/119 | Left rear midrange speaker | 104L |
| N112/9 | HERMES control unit | 39A |
| N162 | Ambiance illumination control unit | 100A |
| N2/10 | Supplemental restraint system control unit | 41A |
| N2/10 | Supplemental restraint system control unit | 81A |
| N2/10 | Supplemental restraint system control unit | 119A |
| N40/3 | Sound system amplifier control unit | 23A |
| N40/3 | Sound system amplifier control unit | 26A |
| N40/3 | Sound system amplifier control unit | 29A |
| N40/3 | Sound system amplifier control unit | 65A |
| N40/3 | Sound system amplifier control unit | 68A |
| N40/3 | Sound system amplifier control unit | 72A |
| N40/3 | Sound system amplifier control unit | 106A |
| N40/3 | Sound system amplifier control unit | 109A |
| N40/3 | Sound system amplifier control unit | 113A |
| N62 | Parking system control unit | 7A |
| N62 | Parking system control unit | 55A |
| N62 | Parking system control unit | 96A |
| N69/1 | Driver door control unit | 12L |
| N69/1 | Driver door control unit | 16L |
| N69/1 | Driver door control unit | 19L |
| N69/2 | Front passenger door control unit | 59L |
| N69/2 | Front passenger door control unit | 62L |
| N69/3 | Left rear door control unit | 100L |
| N69/3 | Left rear door control unit | 104L |
| N73 | Electronic ignition switch control unit | 3A |
| N73 | Electronic ignition switch control unit | 11A |
| N73 | Electronic ignition switch control unit | 51A |
| N73 | Electronic ignition switch control unit | 93A |
| W15/1 | Right footwell ground point | 14A |
| W15/1 | Right footwell ground point | 61A |
| W15/5 | Left front footwell ground point | 13A |
| W15/5 | Left front footwell ground point | 60A |
| W17/9 | Ground point behind left rear seat | 102A |
| X133x1 | Roof/vehicle interior electrical connector | 104A |
| X28/30x1 | Interior wiring harness/right front seat electrical connector | 63A |
| X28/56x1 | Driver seat electrical connector | 16A |
| X28/57x1 | Front passenger seat electrical connector | 19A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 10A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 57A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 99A |
| X35/1x1 | Left front door electrical connector | 2F |
| X35/2x1 | Right front door electrical connector | 50F |
| X35/3x1 | Left rear door electrical connector | 92F |
| Z28/53z1 | Left rear passenger compartment mid-range speaker end sleeve (signal)+ | 109L |
| Z28/54z1 | Left rear passenger compartment mid-range speaker end sleeve (-signal) | 108L |
| Z28/91z1 | Left front door midrange speaker connector sleeve (+) | 23L |
| Z28/91z1 | Left front door midrange speaker connector sleeve (+) | 26L |
| Z28/91z1 | Left front door midrange speaker connector sleeve (+) | 34L |
| Z28/92z1 | Left front door midrange speaker connector sleeve (-) | 22L |
| Z28/92z1 | Left front door midrange speaker connector sleeve (-) | 25L |
| Z28/92z1 | Left front door midrange speaker connector sleeve (-) | 33L |
| Z28/93z1 | Right front door midrange speaker connector sleeve (+) | 66L |
| Z28/93z1 | Right front door midrange speaker connector sleeve (+) | 77L |
| Z28/93z1 | Right front door midrange speaker connector sleeve (+) | 69L |
| Z28/94z1 | Right front door midrange speaker connector sleeve (-) | 65L |
| Z28/94z1 | Right front door midrange speaker connector sleeve (-) | 76L |
| Z28/94z1 | Right front door midrange speaker connector sleeve (-) | 68L |
