(Check Charging Cable And Vehicle Socket - AP54.10-P-5458H)

Model 167.154/354

With Code 830 (China version)

Courtesy of MERCEDES-BENZ USA

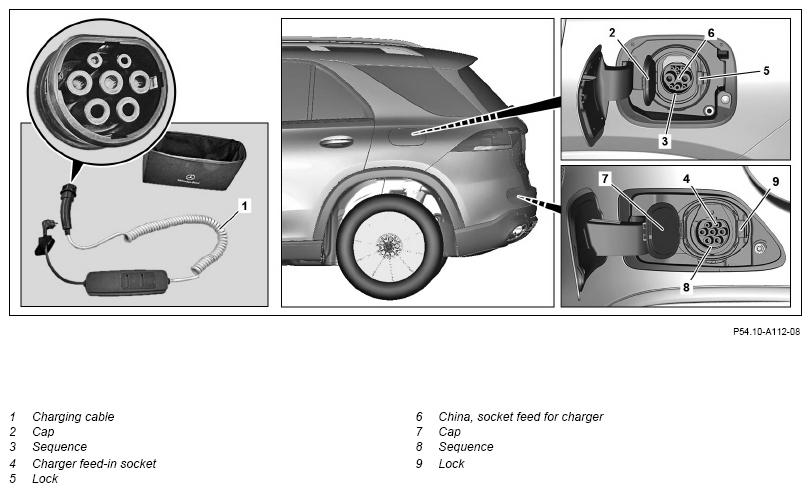

Shown On Model 167.154 With Code 830 (China version), valid for model 167.154/354 With Code 830 (China version)

	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
Topical note	General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system		AH00.00-Z-0300-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove charging cable (1) from vehicle.
	Check
2	Check entire length of charging cable (1), plugs and switches for cracks, kinks, bites, cuts, crushed areas, chafe marks and other damage.	If problems are determined, ↓ replace charging cable (1). After obtaining special order.
	Install
3	Place charging cable (1) in vehicle.
	Check
4	China, check socket feed for charger (6) for damage.	If problems are determined, ↓ China, replace socket feed for charger (6). After obtaining special order.
5	Check that cap (2) is firmly seated on China charger feed socket (6).	If problems are determined, ↓ China, replace socket feed for charger (6). After obtaining special order.
6	Check drain (3) for clear passage and soiling.	Remove any soiling. This is because water must not collect in the China charger feed socket (6) area. If problems are determined, ↓ rectify the problems. After obtaining special order.
7	Check lock (5) by opening and closing cap (2)	If problems are determined, ↓ China, replace socket feed for charger (6). After obtaining special order.
8	Check charger feed socket (4) for damage.	If problems are determined, ↓ Replace charger feed socket (4). After obtaining special order.
9	Check that cap (7) is firmly seated on charger feed socket (4).	If problems are determined, ↓ Replace charger feed socket (4). After obtaining special order.
10	Check drain (8) for clear passage and soiling.	Remove any soiling. This is because water must not collect in the charger feed socket (4) area. If problems are determined, ↓ rectify the problems. After obtaining special order.
11	Check lock (9) by opening and closing cap (7)	If problems are determined, ↓ Replace charger feed socket (4). After obtaining special order.
