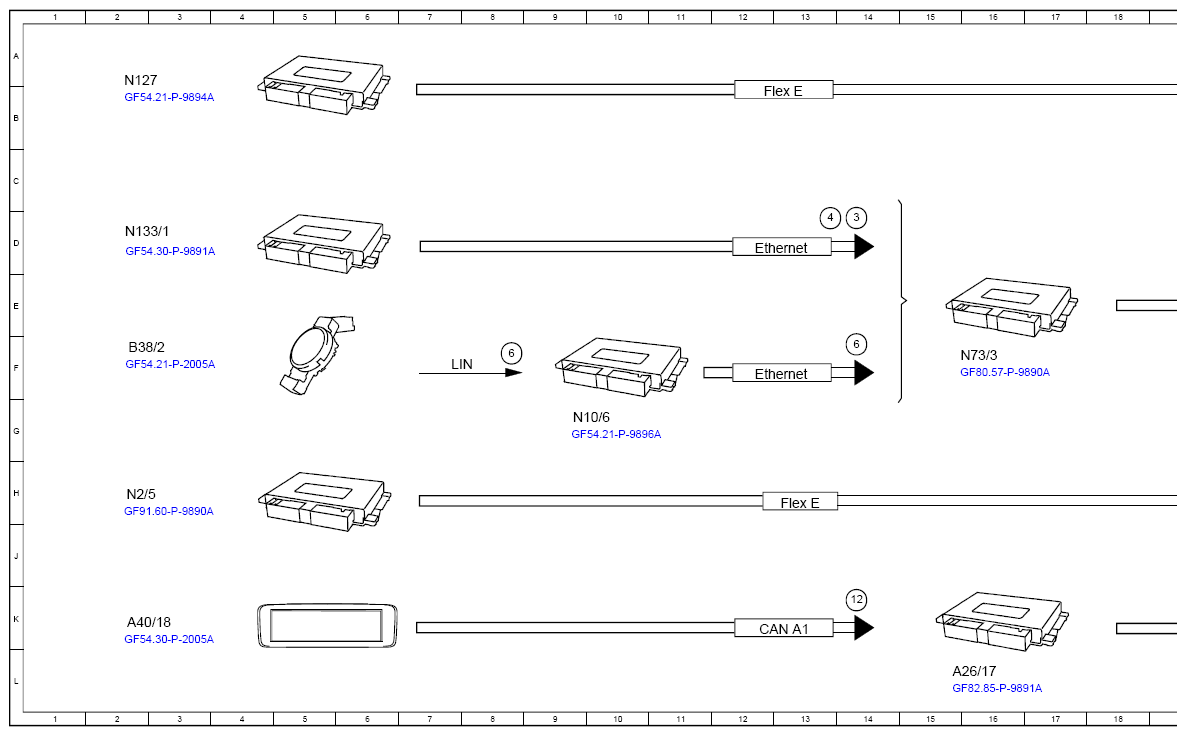

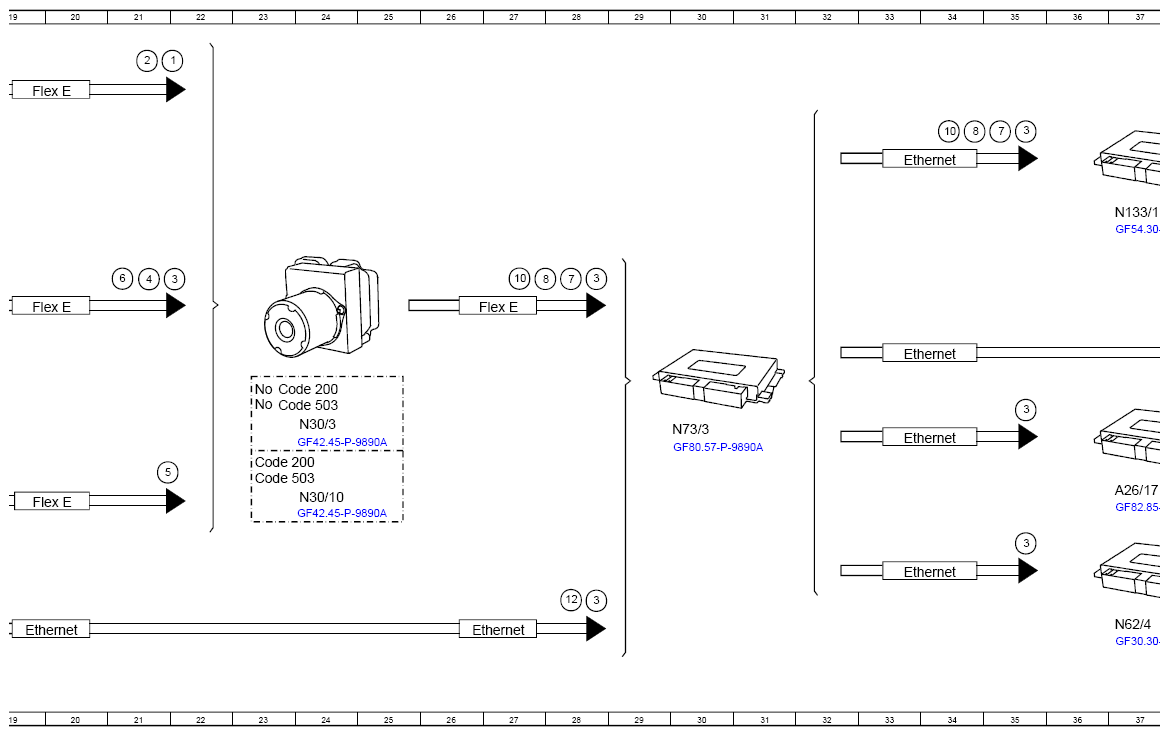

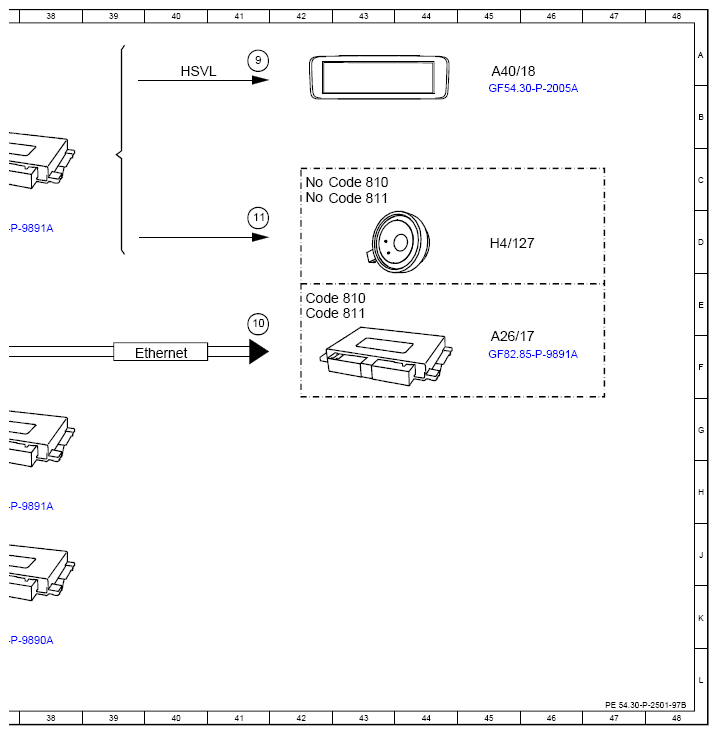

(Monitor Attention, Function Schematic - PE54.30-P-2501-97B)
Model 223, 297
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 22A |
| 10 | Warning tone, request | 27E |
| 10 | Warning tone, request | 34B |
| 10 | Warning tone, request | 41F |
| 11 | Speaker, actuation | 41D |
| 12 | Microsleep detection, signal | 14K |
| 12 | Microsleep detection, signal | 28K |
| 2 | Drivetrain operational, signal | 21A |
| 3 | ATTENTION ASSIST, status | 14D |
| 3 | ATTENTION ASSIST, status | 22E |
| 3 | ATTENTION ASSIST, status | 28K |
| 3 | ATTENTION ASSIST, status | 28E |
| 3 | ATTENTION ASSIST, status | 35G |
| 3 | ATTENTION ASSIST, status | 35J |
| 3 | ATTENTION ASSIST, status | 35B |
| 4 | Time, signal | 22E |
| 4 | Time, signal | 13D |
| 5 | Speed, turn rate and lateral acceleration, signal | 21G |
| 6 | Light sensor, status | 14F |
| 6 | Light sensor, status | 21E |
| 6 | Light sensor, status | 9F |
| 7 | Instrument cluster message, request | 28E |
| 7 | Instrument cluster message, request | 35B |
| 8 | Warning message issue, request | 28E |
| 8 | Warning message issue, request | 35B |
| 9 | Image data, signal | 41A |
| A26/17 | Head unit | 37H |
| A26/17 | Head unit | 15L |
| A26/17 | Head unit | 45F |
| A40/18 | Instrument cluster display | 45A |
| A40/18 | Instrument cluster display | 2K |
| B38/2 | Rain/light sensor with additional functions | 2F |
| CAN A1 | CAN 1 for telematics | 12K |
| Code 200 | Conditionally automated driving | 23H |
| Code 200 | Conditionally automated driving | 23F |
| Code 503 | Remote-controlled parking | 23G |
| Code 503 | Remote-controlled parking | 23H |
| Code 810 | Premium sound system | 42C |
| Code 810 | Premium sound system | 42E |
| Code 811 | High-End sound system | 42C |
| Code 811 | High-End sound system | 42E |
| Ethernet | Ethernet | 12D |
| Ethernet | Ethernet | 33C |
| Ethernet | Ethernet | 33G |
| Ethernet | Ethernet | 33J |
| Ethernet | Ethernet | 19K |
| Ethernet | Ethernet | 12F |
| Ethernet | Ethernet | 27K |
| Ethernet | Ethernet | 33F |
| Ethernet | Ethernet | 40F |
| Flex E | Chassis FlexRay | 27E |
| Flex E | Chassis FlexRay | 19E |
| Flex E | Chassis FlexRay | 19B |
| Flex E | Chassis FlexRay | 12B |
| Flex E | Chassis FlexRay | 13H |
| Flex E | Chassis FlexRay | 19H |
| H4/127 | Instrument panel mid-range speaker | 45D |
| HSVL | High-speed video link | 40A |
| LIN | Local Interconnect Network | 7F |
| N10/6 | Front signal acquisition and actuation module control unit | 9G |
| N127 | Drivetrain control unit | 2A |
| N133/1 | Instrument cluster control unit | 2D |
| N133/1 | Instrument cluster control unit | 37D |
| N2/5 | Supplemental restraint system control unit | 2H |
| N30/10 | Electronic Stability Program control unit | 24H |
| N30/3 | Electronic Stability Program control unit | 24G |
| N62/4 | Driver assistance systems control unit | 37K |
| N73/3 | Electronic ignition switch control unit | 15F |
| N73/3 | Electronic ignition switch control unit | 30G |
