Wiring Diagram For Seat Heater Control Unit - PE91.30-P-2104-97FBB
MODEL 205 as of model year 2016
up to model year 2019
with code 401 (Climatised front seats)
with code 873 (Left and right drivers seat heating) N25/4
MODEL 253 (except 253.99)
up to model year 2020
with code 401 (Climatised front seats)
with code 873 (Left and right drivers seat heating)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| Code L | LEFT-HAND DRIVE | 30D |
| Code L | LEFT-HAND DRIVE | 2E |
| Code R | RIGHT-HAND DRIVE | 30D |
| Code R | RIGHT-HAND DRIVE | 13E |

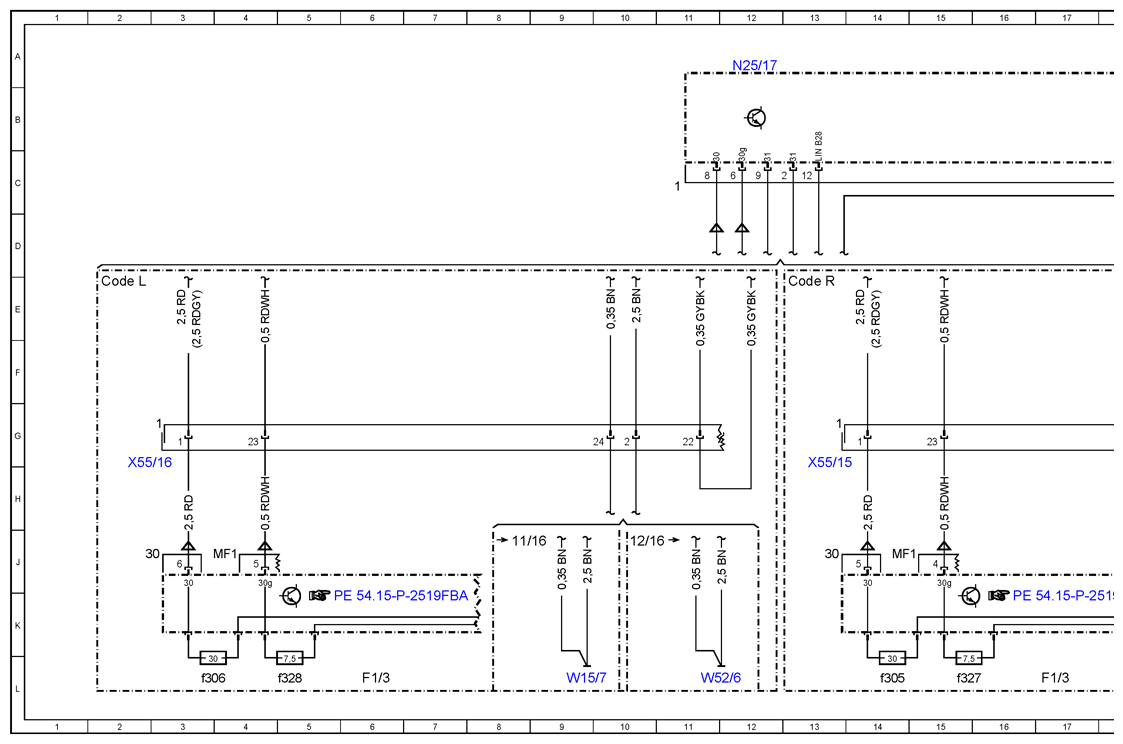

| F1/3 | Passenger-side A-pillar fuse box | 17L |
| F1/3 | Passenger-side A-pillar fuse box | 6L |
| F1/3f305 | Fuse 305 | 14L |
| F1/3f306 | Fuse 306 | 3L |
| F1/3f327 | Fuse 327 | 15L |
| F1/3f328 | Fuse 328 | 5L |

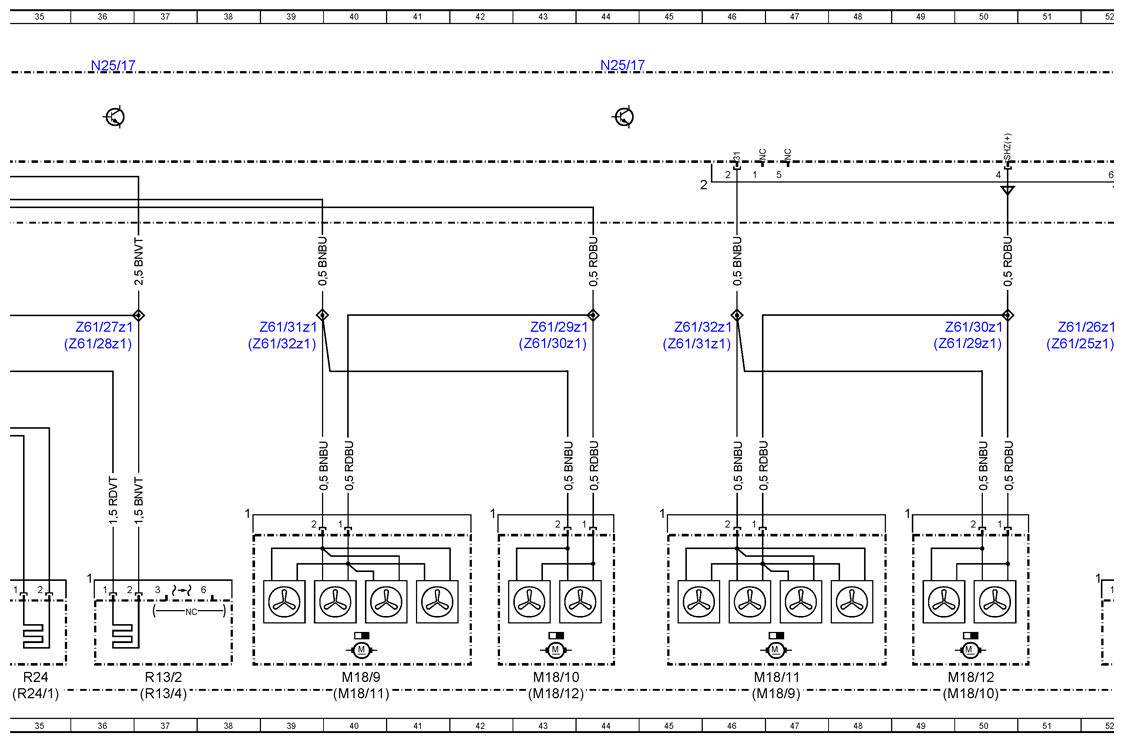

| M18/10 | Left front backrest seat ventilation motors | 43L |
| M18/10 | Left front backrest seat ventilation motors | 50L |
| M18/11 | Right front seat cushion seat ventilation motors | 40L |
| M18/11 | Right front seat cushion seat ventilation motors | 46L |
| M18/12 | Right front backrest seat ventilation motors | 43L |
| M18/12 | Right front backrest seat ventilation motors | 50L |
| M18/9 | Left front seat cushion seat ventilation motors | 40L |
| M18/9 | Left front seat cushion seat ventilation motors | 46L |

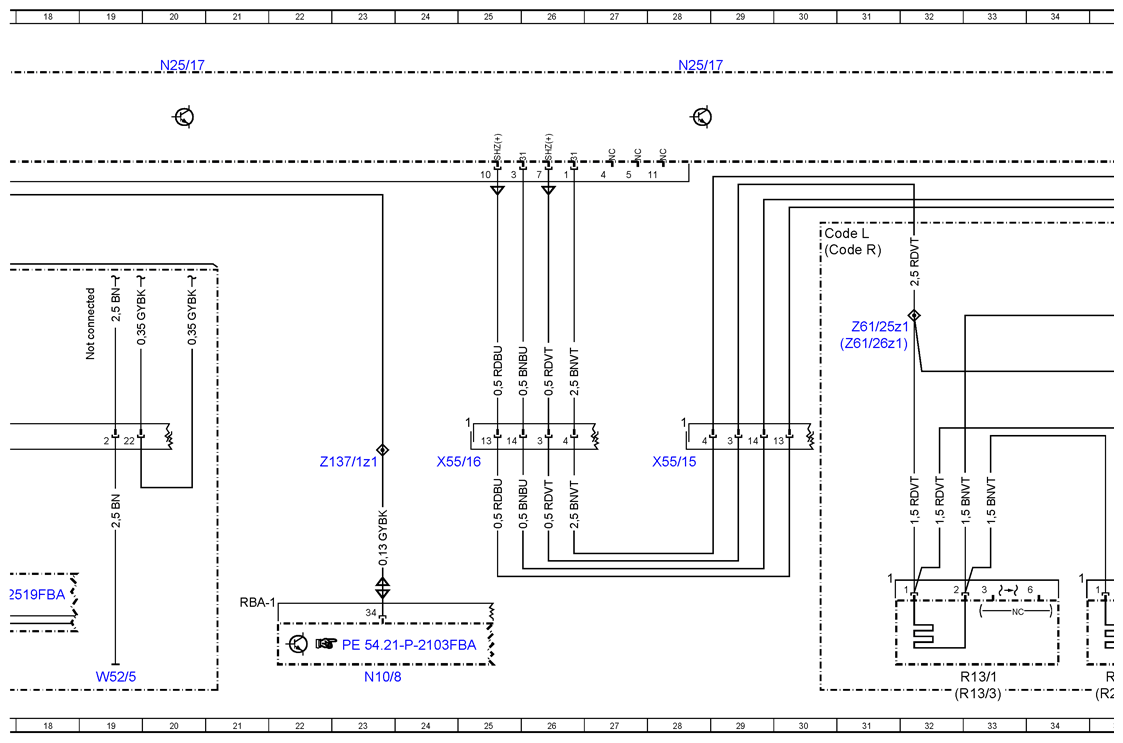

| N10/8 | Rear SAM control unit | 23L |
| N25/17 | Front seat heater control unit | 12A |
| N25/17 | Front seat heater control unit | 20A |
| N25/17 | Front seat heater control unit | 28A |
| N25/17 | Front seat heater control unit | 36A |
| N25/17 | Front seat heater control unit | 44A |
| N25/17 | Front seat heater control unit | 53A |
| R13/1 | Left front seat cushion heater pad | 33L |
| R13/1 | Left front seat cushion heater pad | 53L |
| R13/2 | Left front seat backrest heater pad | 37L |
| R13/2 | Left front seat backrest heater pad | 57L |

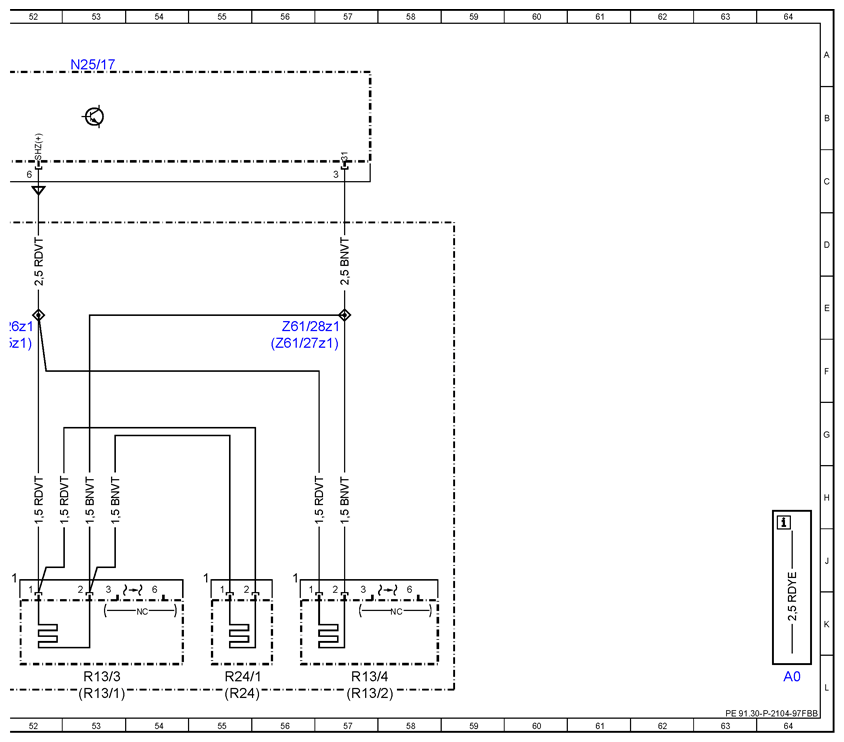

| R13/3 | Right front seat cushion heater pad | 33L |
| R13/3 | Right front seat cushion heater pad | 53L |
| R13/4 | Right front seat backrest heater pad | 37L |
| R13/4 | Right front seat backrest heater pad | 57L |
| R24 | Adjustable seat cushion length heater pad, left front seat | 35L |
| R24 | Adjustable seat cushion length heater pad, left front seat | 55L |
| R24/1 | Adjustable seat cushion length heater pad, right front seat | 35L |
| R24/1 | Adjustable seat cushion length heater pad, right front seat | 55L |
| W15/7 | Right front footwell ground point | 9L |
| W52/5 | Left center longitudinal member ground point | 19L |
| W52/6 | Right center longitudinal member ground point | 11L |
| X55/15 | Driver seat electrical connector | 13H |
| X55/15 | Driver seat electrical connector | 28H |
| X55/16 | Front passenger seat electrical connector | 3H |
| X55/16 | Front passenger seat electrical connector | 25H |
| Z137/1z1 | Connector sleeve, heater LIN | 23H |
| Z61/25z1 | Driver seat heater supply connector sleeve | 31E |
| Z61/25z1 | Driver seat heater supply connector sleeve | 51F |
| Z61/26z1 | Front passenger seat heater supply connector sleeve | 31F |
| Z61/26z1 | Front passenger seat heater supply connector sleeve | 52E |
| Z61/27z1 | Driver seat heater ground connection connector sleeve | 36E |
| Z61/27z1 | Driver seat heater ground connection connector sleeve | 56F |
| Z61/28z1 | Front passenger seat heater ground connection connector sleeve | 36F |
| Z61/28z1 | Front passenger seat heater ground connection connector sleeve | 56E |
| Z61/29z1 | Driver seat ventilation supply connector sleeve | 43E |
| Z61/29z1 | Driver seat ventilation supply connector sleeve | 50F |
| Z61/30z1 | Front passenger seat ventilation supply connector sleeve | 43F |
| Z61/30z1 | Front passenger seat ventilation supply connector sleeve | 50E |
| Z61/31z1 | Driver seat ventilation ground connection connector sleeve | 39E |
| Z61/31z1 | Driver seat ventilation ground connection connector sleeve | 45F |
| Z61/32z1 | Front passenger seat ventilation ground connection connector sleeve | 39F |
| Z61/32z1 | Front passenger seat ventilation ground connection connector sleeve | 46E |
