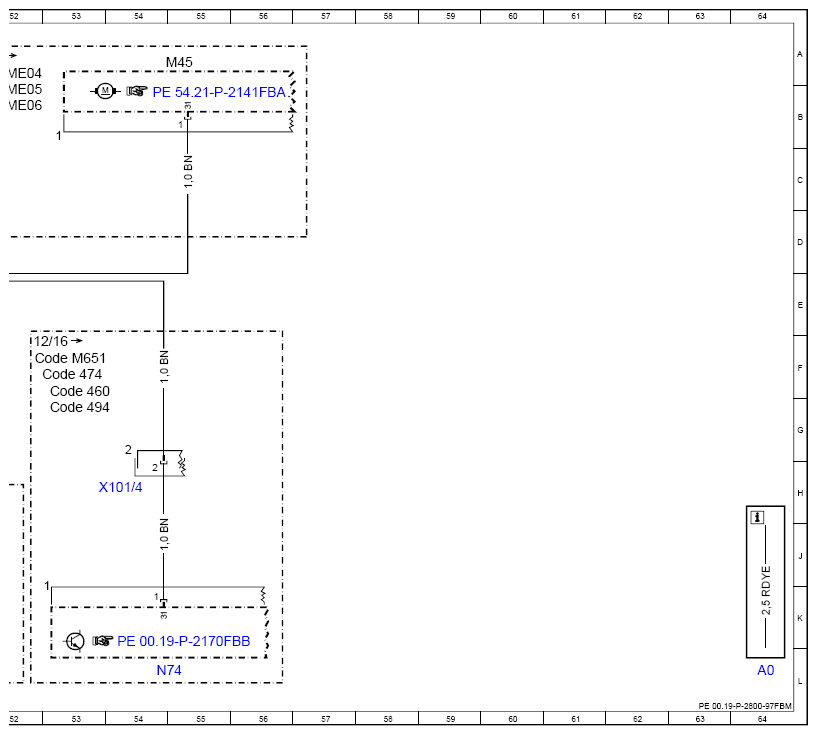

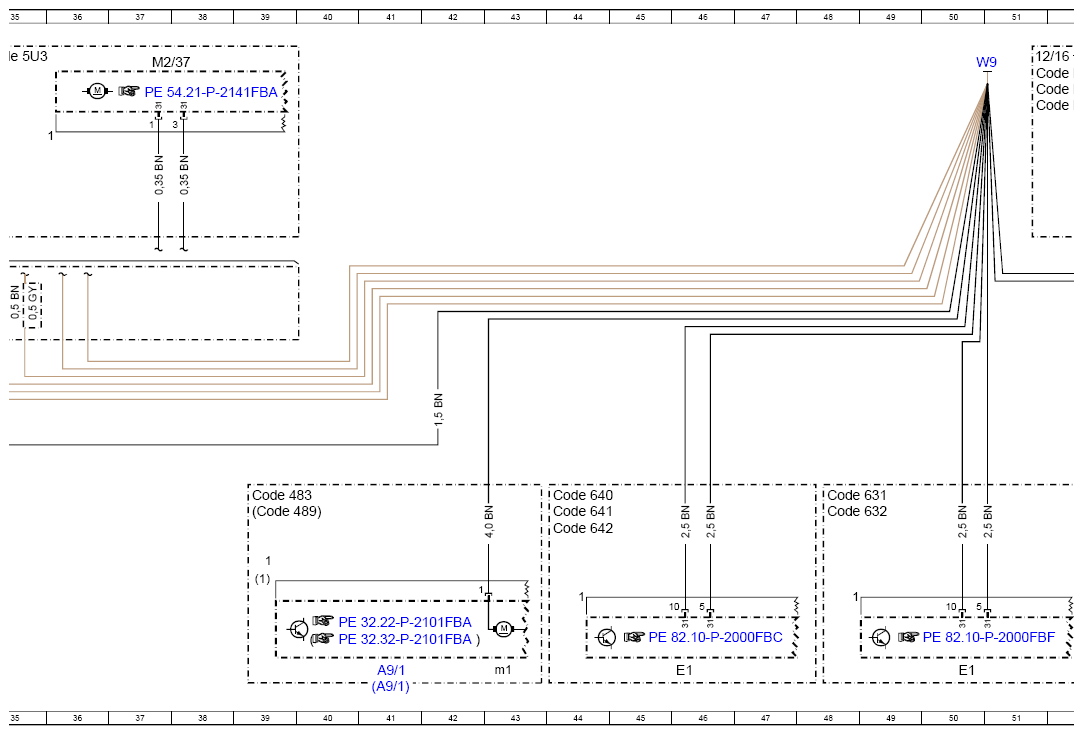

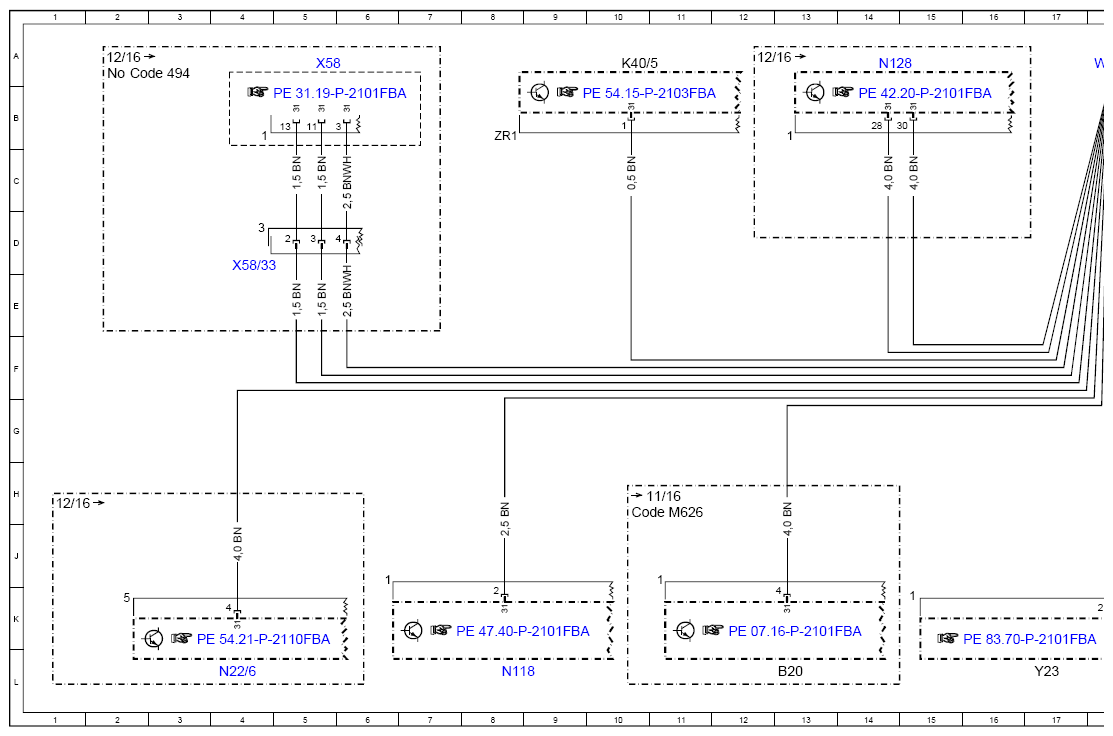

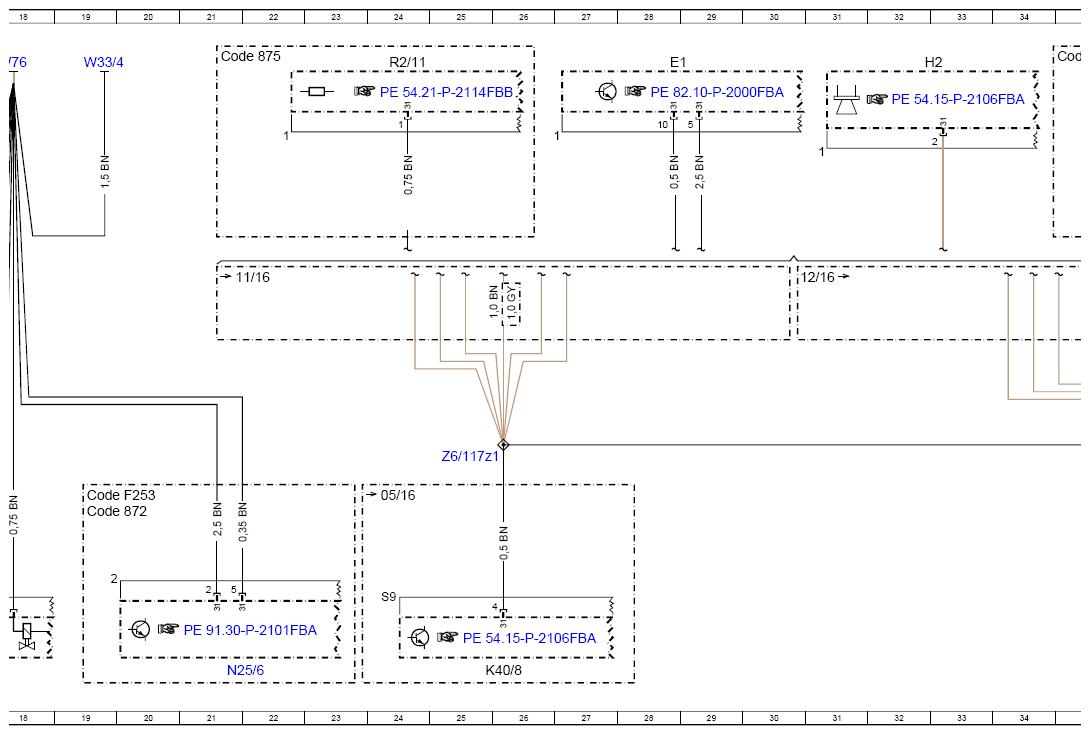

Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97FBM
Model 205
up to model year 2019 W9, W76
Model 253 (except 253.99)
up to model year 2020 W9, W76
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| A9/1 | AIR BODY CONTROL compressor | 41L |
| A9/1 | AIR BODY CONTROL compressor | 41L |
| A9/1m1 | Electric motor | 43L |
| B20 | Fuel filter element with integrated heater | 13L |
| Code 460 | Canada version | 53F |
| Code 474 | Diesel particulate filter | 52F |
| Code 483 | Dynamic handling package 2.0 incl. ADS+ | 39H |
| Code 489 | AIR BODY CONTROL | 39H |
| Code 494 | USA version | 2A |
| Code 494 | USA version | 53G |
| Code 5U3 | AIRPANEL | 35A |
| Code 631 | Static LED headlamp, left-hand traffic | 48H |
| Code 632 | Static LED headlamp, right-hand traffic | 48H |
| Code 640 | High Performance LED | 44H |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 44H |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 44J |
| Code 872 | Seat heater in rear passenger compartment | 19H |
| Code 875 | Heated windshield washer system | 21A |
| Code F253 | MODEL SERIES 253 | 19H |
| Code M626 | DIESEL ENGINE 0M626 | 10H |
| Code M651 | DIESEL ENGINE OM651 | 52F |
| Code ME04 | Hybrid drive 20 KW VARIANT | 51A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 51B |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 51B |
| E1 | Left front lamp unit | 28A |
| E1 | Left front lamp unit | 46L |
| E1 | Left front lamp unit | 50L |
| H2 | Left fanfare horn | 32A |
| K40/5 | Rear fuse and relay module | 10A |
| K40/8 | Engine fuse and relay module | 26L |
| M2/37 | Radiator trim flap actuator motor | 37A |
| M45 | Coolant circulation pump | 55A |
| N118 | Fuel pump control unit | 8L |
| N128 | Electric parking brake control unit | 14A |
| N22/6 | Rear control unit | 4L |
| N25/6 | Rear seat heaters control unit | 21L |
| N74 | Soot particulate sensor control unit | 54L |
| R2/11 | Spray nozzle hose heater | 24A |
| W33/4 | Fuel tank filler neck ground point | 19A |
| W76 | Fuel pump ground point | 18A |
| W9 | Left front ground point (at lamp unit) | 50A |
| X101/4 | Right rear frame floor assembly/underfloor electrical connector | 54H |
| X58 | Trailer socket | 5A |
| X58/33 | Vehicle interior/trailer hitch electrical connector | 4D |
| Y23 | Stationary heater fuel pump | 17L |
| Z6/117z1 | Left front ground point connector sleeve (on lamp unit) | 25G |
