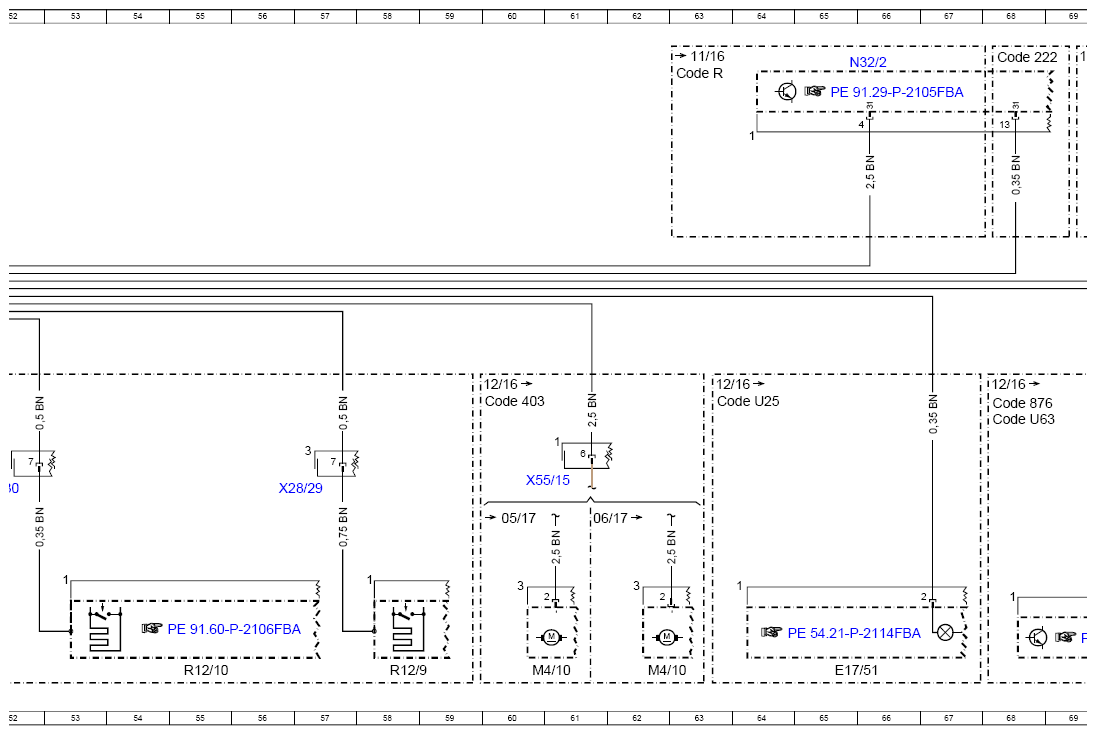

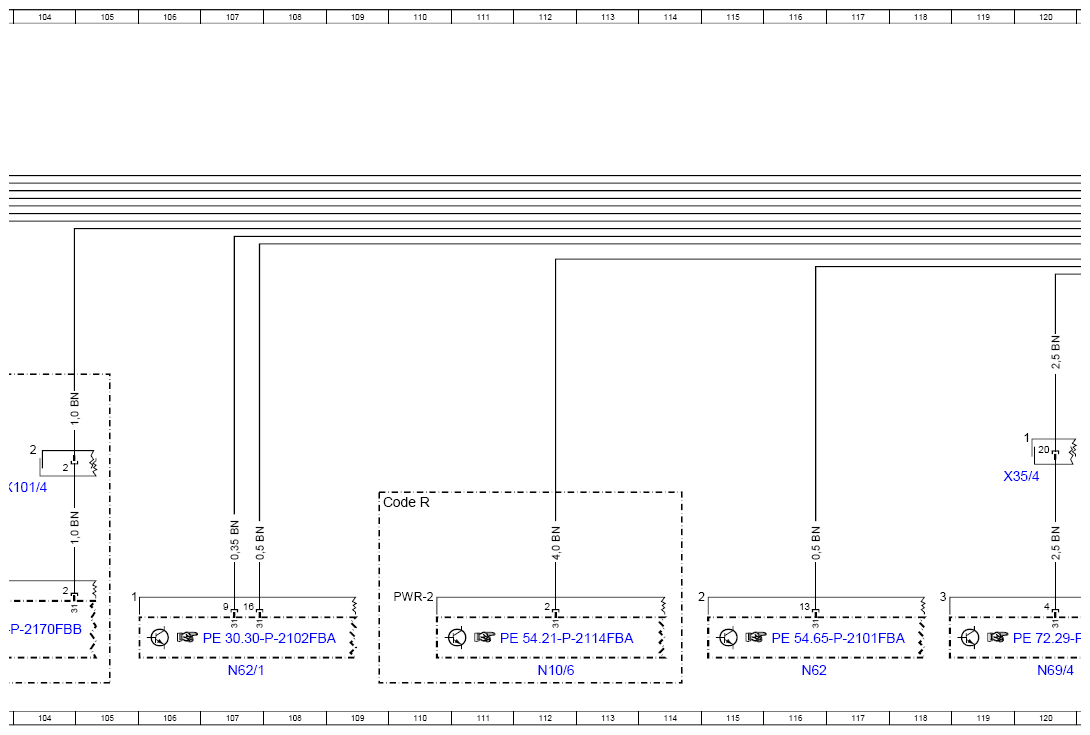

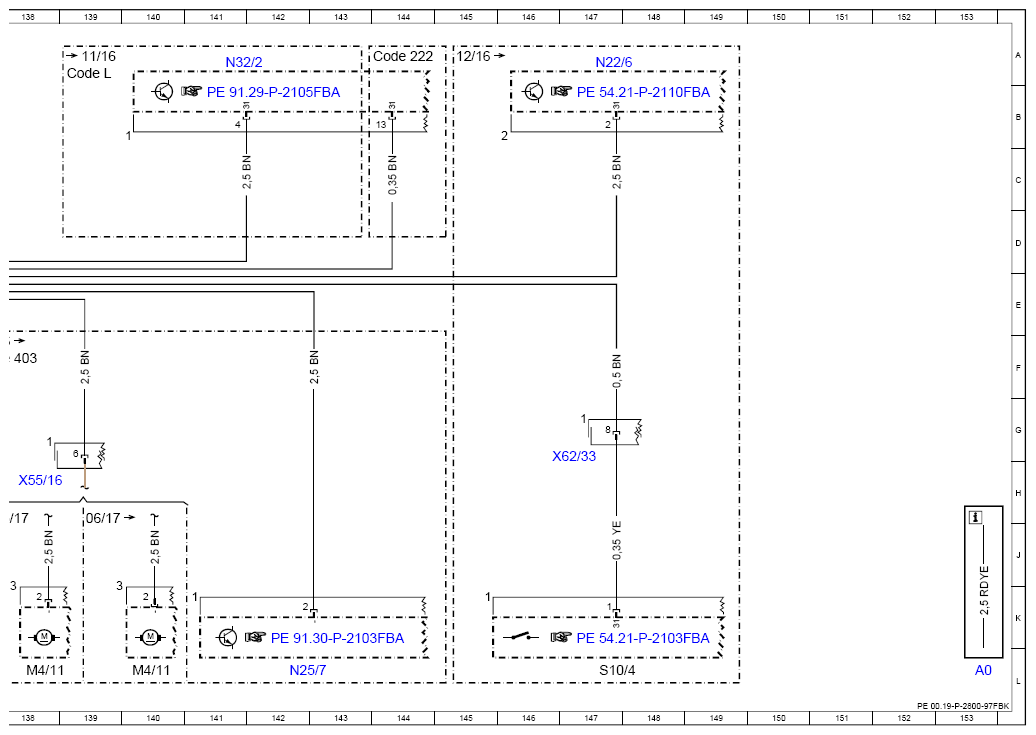

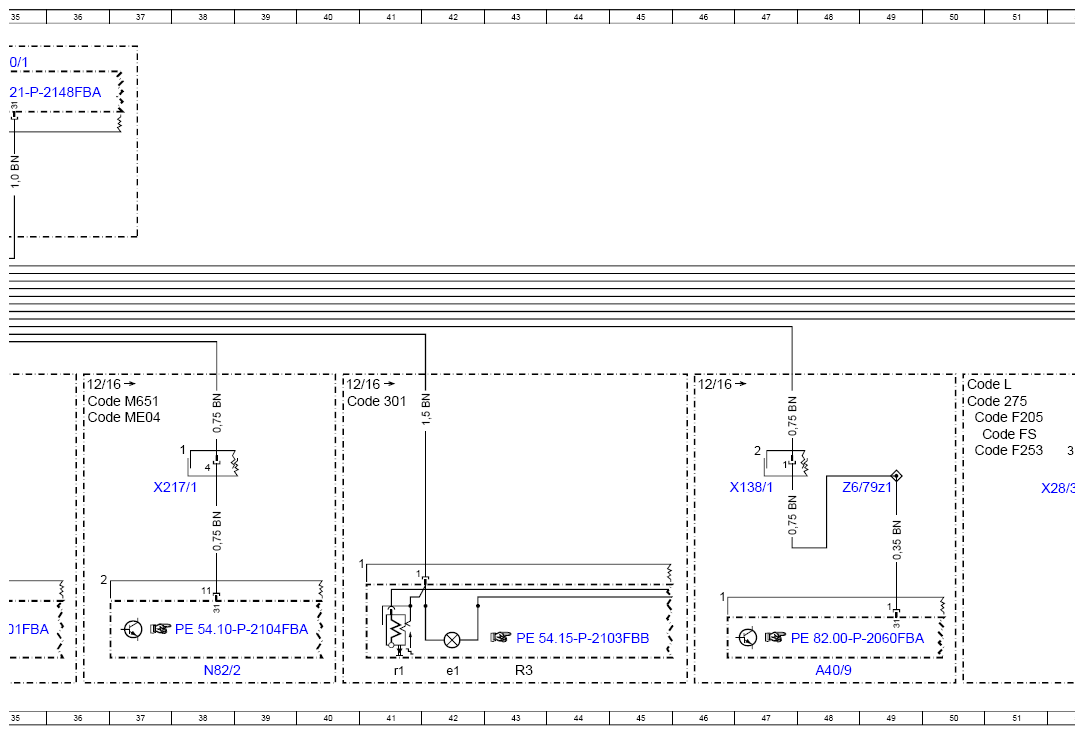

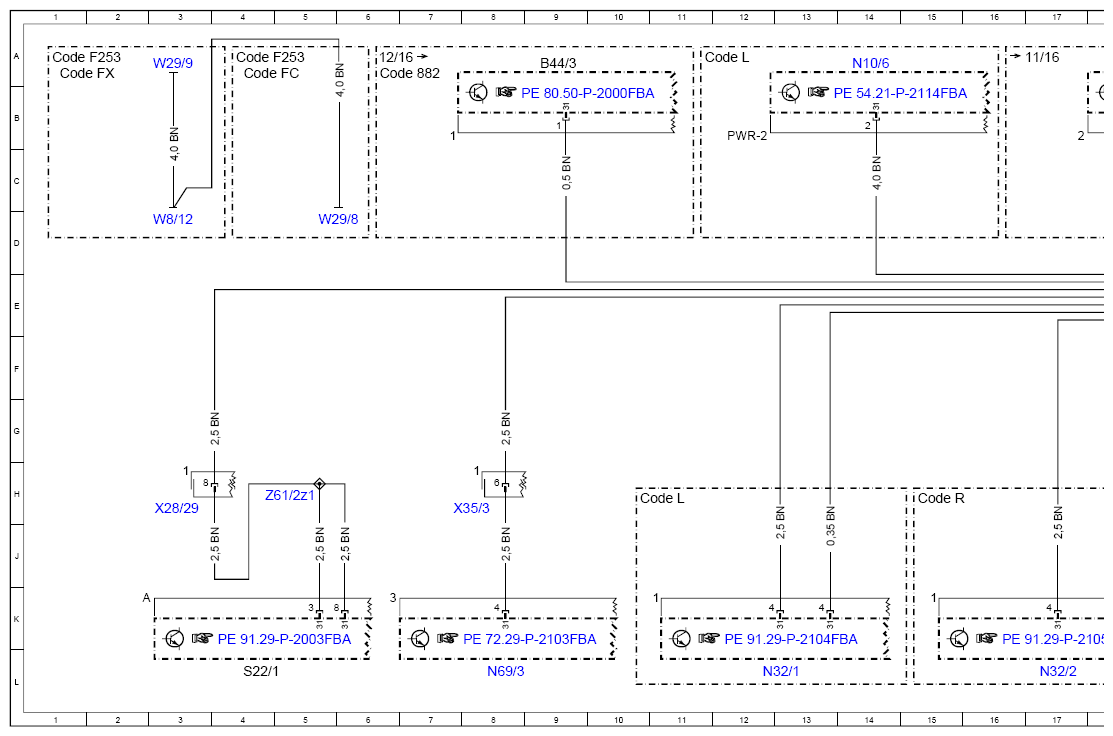

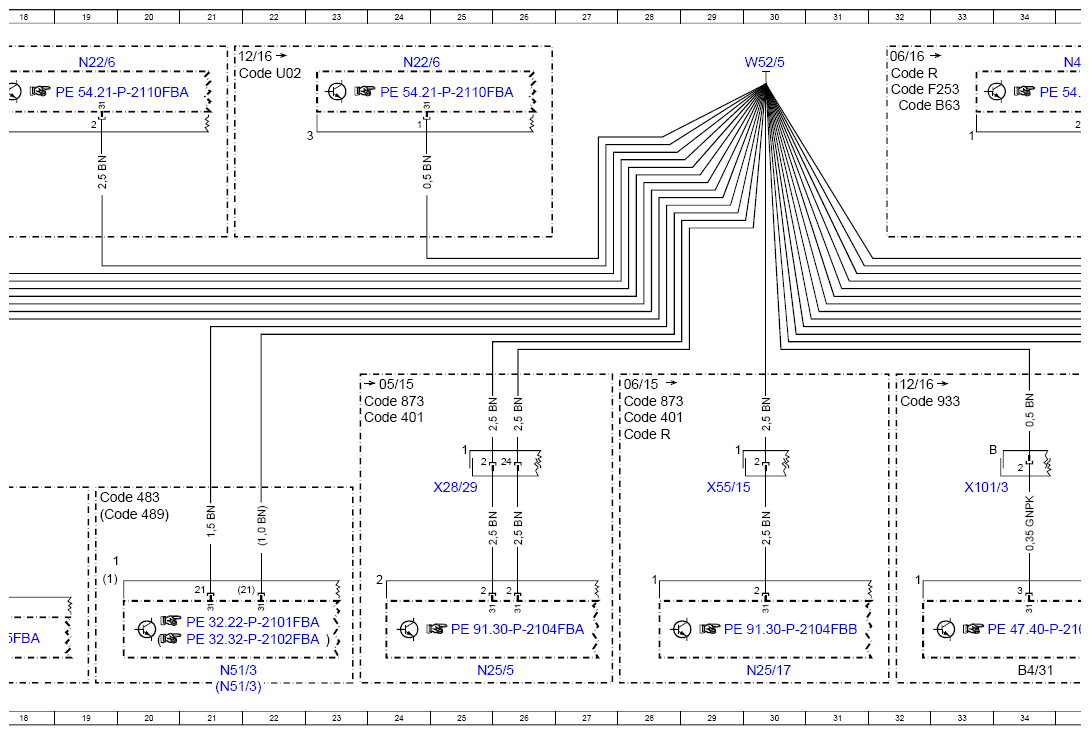

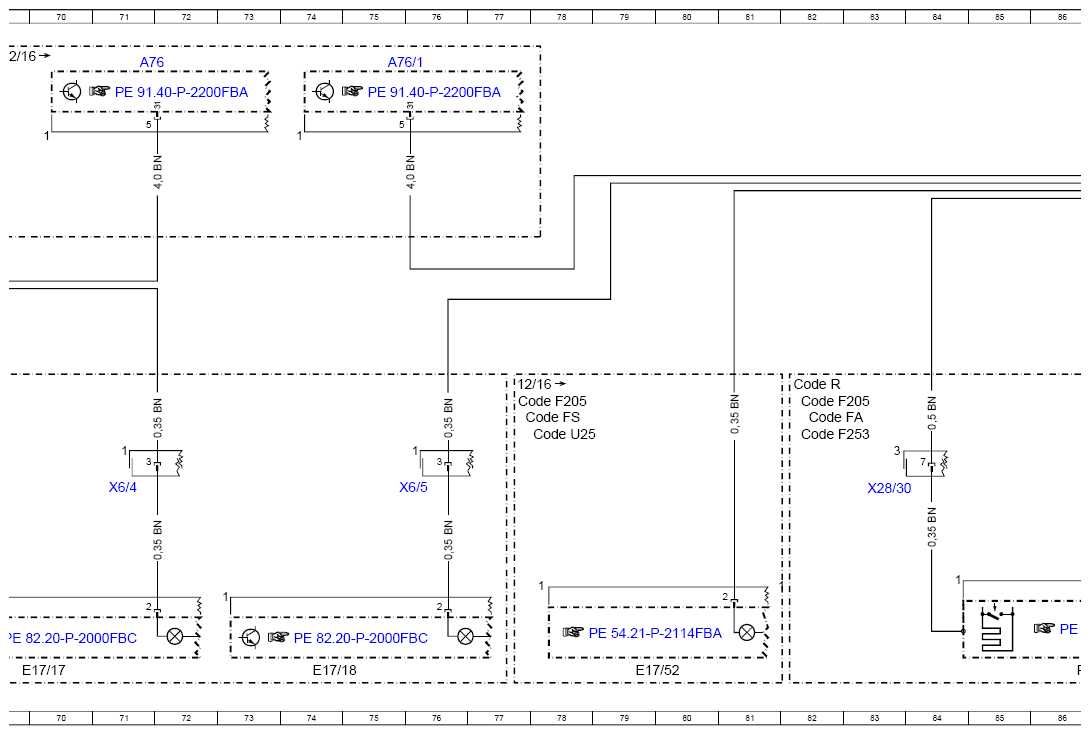

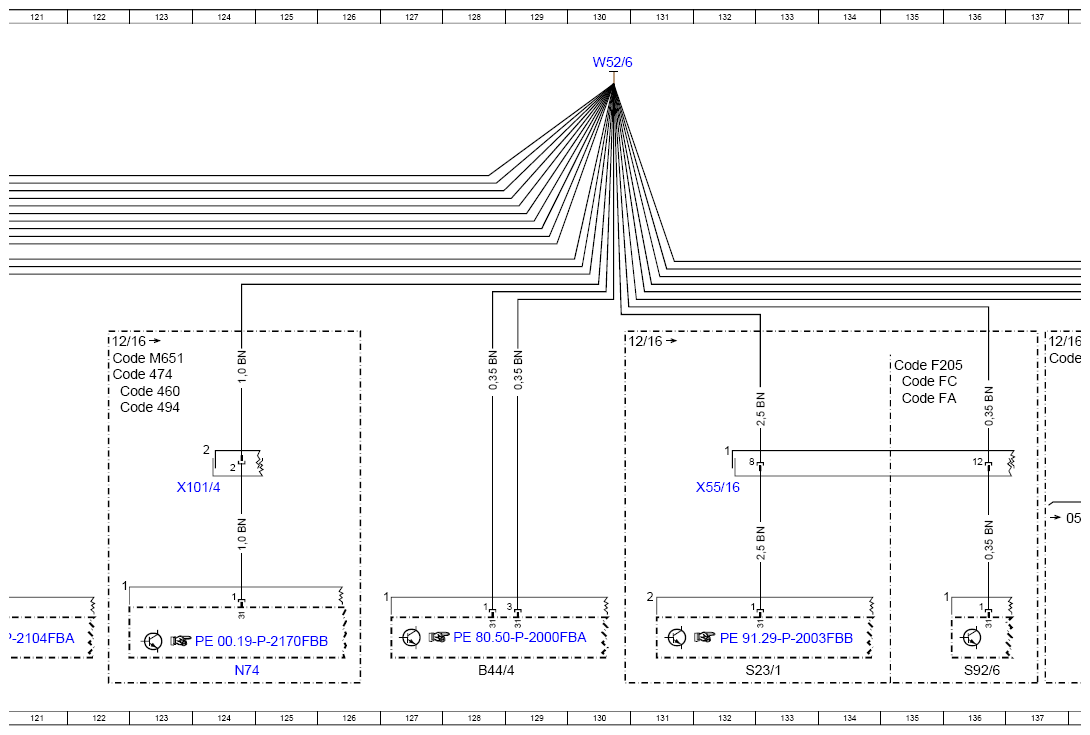

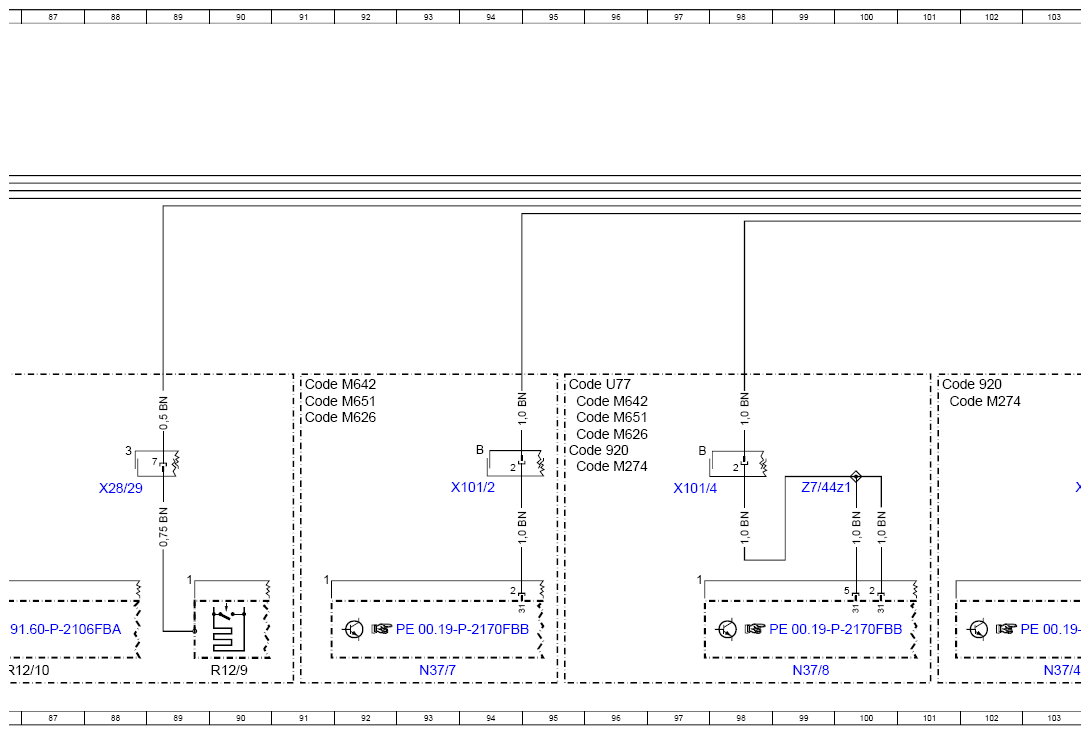

Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97FBK
Model 205
up to model year 2019 W32/6, W52, 5, W52/6
Model 253 (except 253.99)
up to model year 2020 W32/6, W52, 5, W52/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 153L |
| A40/9 | Audio/COMAND control panel | 48L |
| A76 | Left front reversible emergency tensioning retractor | 71A |
| A76/1 | Right front reversible emergency tensioning retractor | 75A |
| B4/31 | Fuel quality sensor | 34L |
| B44/3 | Left rear interior protection sensor | 9A |
| B44/4 | Right rear interior protection sensor | 128L |
| Code 222 | Electrically adjustable right front seat | 68A |
| Code 222 | Electrically adjustable right front seat | 144A |
| Code 275 | Memory package | 50G |
| Code 301 | Smoker's package | 40G |
| Code 401 | Seat climate control for driver and front passenger | 23G |
| Code 401 | Seat climate control for driver and front passenger | 28G |
| Code 403 | AIRSCARF system | 60G |
| Code 403 | AIRSCARF system | 137F |
| Code 460 | Canada version | 122F |
| Code 474 | Diesel particulate filter | 122F |
| Code 483 | Dynamic handling package 2.0 incl. ADS+ | 19H |
| Code 489 | AIR BODY CONTROL | 19H |
| Code 494 | USA version | 122G |
| Code 873 | Seat heater for driver and front passenger | 23G |
| Code 873 | Seat heater for driver and front passenger | 28G |
| Code 876 | Interior lights package | 68G |
| Code 882 | Interior protection and tow-away protection | 6A |
| Code 920 | Gasoline direct injection with stratified charge | 101F |
| Code 920 | Gasoline direct injection with stratified charge | 95G |
| Code 933 | Flexible Fuel Vehicle | 32G |
| Code B63 | AMG eSound | 32B |
| Code F205 | MODEL SERIES 205 | 77G |
| Code F205 | MODEL SERIES 205 | 50G |
| Code F205 | MODEL SERIES 205 | 82G |
| Code F205 | MODEL SERIES 205 | 135F |
| Code F253 | MODEL SERIES 253 | 50G |
| Code F253 | MODEL SERIES 253 | 4A |
| Code F253 | MODEL SERIES 253 | 1A |
| Code F253 | MODEL SERIES 253 | 32B |
| Code F253 | MODEL SERIES 253 | 82G |
| Code FA | CABRIOLET | 82G |
| Code FA | CABRIOLET | 135G |
| Code FC | COUPE | 4A |
| Code FC | COUPE | 135F |
| Code FS | STATION WAGON | 77G |
| Code FS | STATION WAGON | 50G |
| Code FX | 1A | |
| Code L | LEFT-HAND DRIVE | 10H |
| Code L | LEFT-HAND DRIVE | 50F |
| Code L | LEFT-HAND DRIVE | IIA |
| Code L | LEFT-HAND DRIVE | 139A |
| Code M274 | SPARK-IGNITION ENGINE M274 | 101G |
| Code M274 | SPARK-IGNITION ENGINE M274 | 95H |
| Code M626 | 95G | |
| Code M626 | 91G | |
| Code M642 | 95G | |
| Code M642 | 91F | |
| Code M651 | 36G | |
| Code M651 | 95G | |
| Code M651 | 91G | |
| Code M651 | 122F | |
| Code ME04 | Hybrid drive 20 KW VARIANT | 36G |
| Code R | RIGHT-HAND DRIVE | 15H |
| Code R | RIGHT-HAND DRIVE | 28G |
| Code R | RIGHT-HAND DRIVE | 32A |
| Code R | RIGHT-HAND DRIVE | 63A |
| Code R | RIGHT-HAND DRIVE | 82F |
| Code R | RIGHT-HAND DRIVE | 109H |
| Code U02 | Belt extender, electric | 21A |
| Code U25 | Illuminated door sills | 63G |
| Code U25 | Illuminated door sills | 78G |
| Code U63 | Driving school package | 68G |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 95F |
| E17/17 | Left rear footwell lamp | 70L |
| E17/18 | Right rear footwell lamp | 74L |
| E17/51 | Left rear illuminated door sill molding | 65L |
| E17/52 | Right rear illuminated door sill molding | 79L |
| M4/10 | Left AIRSCARF fan motor | 60L |
| M4/10 | Left AIRSCARF fan motor | 62L |
| M4/11 | Right AIRSCARF fan motor | 140L |
| M4/11 | Right AIRSCARF fan motor | 138L |
| N10/6 | Front SAM control unit | 14A |
| N10/6 | Front SAM control unit | 112L |
| N22/6 | Rear control unit | 19A |
| N22/6 | Rear control unit | 24A |
| N22/6 | Rear control unit | 147A |
| N25/17 | Front seat heater control unit | 30L |
| N25/5 | Driver seat heater control unit | 25L |
| N25/7 | AIRSCARF control unit | 142L |
| N32/1 | Driver seat control unit | 12L |
| N32/2 | Front passenger seat control unit | 17L |
| N32/2 | Front passenger seat control unit | 66A |
| N32/2 | Front passenger seat control unit | 141A |
| N37/4 | NOx sensor control unit | 103L |
| N37/7 | NOx sensor control unit downstream of diesel particulate filter | 93L |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 99L |
| N40/1 | Engine sound control unit | 35A |
| N51/3 | AIR BODY CONTROL control unit | 21L |
| N51/3 | AIR BODY CONTROL control unit | 21L |
| N62 | Parking system control unit | 116L |
| N62/1 | Radar sensors control unit | 107L |
| N69/3 | Left rear door control unit | 8L |
| N69/4 | Right rear door control unit | 120L |
| N74 | Soot particulate sensor control unit | 124L |
| N82/2 | Battery management system control unit | 38L |
| R12/10 | Front passenger sidebag squib | 55L |
| R12/10 | Front passenger sidebag squib | 86L |
| R12/9 | Driver sidebag squib | 58L |
| R12/9 | Driver sidebag squib | 90L |
| R3 | Front cigarette lighter with ashtray illumination | 43L |
| R3e1 | Ashtray illumination | 42L |
| R3r1 | Cigarette lighter heating element | 41L |
| S10/4 | Right rear brake wear sensor | 147L |
| S22/1 | Driver seat partially electric seat adjustment switch | 4L |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 132L |
| S92/6 | Right backrest release/inclination microswitch | 136L |
| W29/8 | Left D-pillar ground point | 5D |
| W29/9 | Right D-pillar ground point | 3A |
| W52/5 | Left center longitudinal member ground point | 30A |
| W52/6 | Right center longitudinal member ground point | 130A |
| W8/12 | Upper right liftgate ground point | 3D |
| X101/2 | Right front frame floor assembly/underfloor electrical connector | 94H |
| X101/3 | Left rear frame floor assembly/underfloor electrical connector | 33H |
| X101/4 | Right rear frame floor assembly/underfloor electrical connector | 97H |
| X101/4 | Right rear frame floor assembly/underfloor electrical connector | 124H |
| X101/4 | Right rear frame floor assembly/underfloor electrical connector | 104H |
| X138/1 | Front center console electrical connector | 47H |
| X217/1 | Battery management system electrical connector | 38H |
| X28/29 | Frame floor assembly/driver seat electrical connector | 3H |
| X28/29 | Frame floor assembly/driver seat electrical connector | 25H |
| X28/29 | Frame floor assembly/driver seat electrical connector | 57H |
| X28/29 | Frame floor assembly/driver seat electrical connector | 88H |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 52H |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 83H |
| X35/3 | Left rear door electrical connector | 8H |
| X35/4 | Right rear door electrical connector | 120H |
| X55/15 | Left seat separation point | 29H |
| X55/15 | Left seat separation point | 61H |
| X55/16 | Right seat separation point | 132H |
| X55/16 | Right seat separation point | 138H |
| X6/4 | Driver footwell lamp electrical connector | 71H |
| X6/5 | Front passenger footwell lamp electrical connector | 76H |
| X62/33 | Rear axle electrical connector, right distributor | 147H |
| Z6/79z1 | Circuit 31 connector sleeve | 49H |
| Z61/2z1 | Left front seat circuit 31 connector sleeve | 5H |
| Z7/44z1 | Sensor ground connector sleeve | 99H |
