Electrical Function Schematic For Engine Timing Start Stop - PE07.10-P-2722-97FBH

Engine 274.9 in model 205.047/147/247

Engine 274.9 in model 253.353/953

Engine 274.9 in model 253.354/954

Code: Designation: Position:
1 Air conditioning, status 38E
1 Air conditioning, status 30E
1 Air conditioning, status 10E
10 Engine start, request 30F
10 Engine start, request 39F
10 Engine start, request 27G
10 Engine start, request 31E
10 Engine start, request 11E
10 Engine start, request 39D
11 Engine stop enable, status 28H
11 Engine stop enable, status 11E
12 Crash, signal 11E
12 Crash, signal 37E
12 Crash, signal 32E
12 Crash, signal 10F
13 Engine torque, increase request 28H
13 Engine torque, increase request 12E
13 Engine torque, increase request 28K
14 Engine torque, reduce request 27H
14 Engine torque, reduce request 12E
14 Engine torque, reduce request 27K
15 ECO start/stop function button, status 39F
15 ECO start/stop function button, status 32E
15 ECO start/stop function button, status 13E
16 Engine stop prohibited, request 40F
16 Engine stop prohibited, request 31G
16 Engine stop prohibited, request 27H
16 Engine stop prohibited, request 32E
16 Engine stop prohibited, request 13E
16 Engine stop prohibited, request 39D
16 Engine stop prohibited, request 36E
17 Steering wheel angle sensor, signal 26G
17 Steering wheel angle sensor, signal 13E
18 Door rotary tumbler switch, status 36E
18 Door rotary tumbler switch, status 33E
18 Door rotary tumbler switch, status 14D
19 Fuel pump, actuation 13K
2 Instrument cluster, message 36F
2 Instrument cluster, message 37J
20 Engine speed, signal 5G
21 Coolant temperature sensor, signal 6H
22 Accelerator pedal sensor, signal 5E
22 Accelerator pedal sensor, signal 14G
22 Accelerator pedal sensor, signal 27D
23 Brake light switch, signal 30J
24 Vacuum sensor, signal 30K
25 Seat belt buckle restraint system switch, status 37D
25 Seat belt buckle restraint system switch, status 33E
25 Seat belt buckle restraint system switch, status 11E
27 Engine hood contact switch, status 37D
27 Engine hood contact switch, status 34E
27 Engine hood contact switch, status 15E
28 Gear range, request 7C
29 Gear range, status 7E
3 Fuel pump, specified pressure request 15J
30 Circuit 87, status 9H
31 Engine running, signal 26F
31 Engine running, signal 7C
31 Engine running, signal 15J
35 High-voltage battery voltage, signal 30E
36 Electric machine, status 28E
37 Electric machine specified torque, request 28C
4 Fuel pressure, status 10G
5 Starter circuit 50 relay, actuation 7J
6 Starter, actuation 6K
7 Brake light switch, status 28G
8 Wheel speed, signal 28G
9 Vehicle speed, signal 37G
9 Vehicle speed, signal 31E
9 Vehicle speed, signal 10E
A1 Instrument cluster 37L
A100 High-voltage battery module 31B
A8/1 Transmitter key 38F
B11/4 Coolant temperature sensor 3L
B150/2 Dual brake vacuum sensor 45K
B37 Accelerator pedal sensor 2F
B37 Accelerator pedal sensor 23D
B64/1 Brake vacuum sensor 42K
B70 Crankshaft Hall sensor 2J
CAN B Interior CAN 40F
CAN B Interior CAN 40D
CAN C Engine CAN 20F
CAN C Engine CAN 12F
CAN C1 Drive train CAN 7D
CAN C1 Drive train CAN 12F
CAN C1 Drive train CAN 12E
CAN C1 Drive train CAN 20E
CAN HMI User interface CAN 37H
CAN HMI User interface CAN 37C
CAN L Hybrid CAN 29D
CAN L Hybrid CAN 28D
Code 23P Driver assistance package 20J
Code 23P Driver assistance package 20G
Code F205 MODEL SERIES 205 1E
Code F205 MODEL SERIES 205 22B
Code F205 MODEL SERIES 205 20K
Code F205 MODEL SERIES 205 20H
Code F205 MODEL SERIES 205 40H
Code F205 MODEL SERIES 205 43H
Code F253 MODEL SERIES 253 1E
Code F253 MODEL SERIES 253 22C
Code F253 MODEL SERIES 253 20K
Code F253 MODEL SERIES 253 20H
Code F253 MODEL SERIES 253 40J
Code F253 MODEL SERIES 253 43J
Flex E Chassis FlexRay 34F
Flex E Chassis FlexRay 20F
Flex E Chassis FlexRay 34H
Flex E Chassis FlexRay 28H
Flex E Chassis FlexRay 26K
K40/8 Engine fuse and relay module 9L
K40/8kH Starter circuit 50 relay 7L
K40/8kN Circuit 87M relay 12J
M1 Starter 4L
M3 Fuel pump (FP) 12L
N10/6 Front SAM control unit 42G
N118 Fuel pump control unit 14L
N127 Drivetrain control unit 28F
N129/1 Power electronics control unit 27C
N2/10 Supplemental restraint system control unit 37C
N22/1 Climate control control unit 42E
N3/10 ME-SFI [ME] control unit 7G
N30/4 Electronic Stability Program control unit 28L
N51/3 AIR BODY CONTROL control unit 33K
N62/1 Radar sensors control unit 22L
N62/4 Mercedes-Benz Intelligent Drive control unit 22J
N69/1 Left front door control unit 34D
N73 Electronic ignition switch control unit 37G
N80 Steering column module control unit 17L
N82/2 Battery management system control unit 31D
S9/1 Stop lamp switch 31K
U1589 Valid up to model year 2019 1E
U1589 Valid up to model year 2019 20K
U1589 Valid up to model year 2019 40J
U1590 Valid up to model year 2020 1F
U1590 Valid up to model year 2020 20K
U1590 Valid up to model year 2020 40J
U2019 Valid as of model year 2019 22B
U2019 Valid as of model year 2019 20H
U2019 Valid as of model year 2019 43J
U2020 Valid as of model year 2020 22C
U2020 Valid as of model year 2020 20H
U2020 Valid as of model year 2020 43J
U25 Valid for automatic transmission 6A
U836 Valid for AIRMATIC 32J
Y3/8n4 Fully integrated transmission control control unit 6B

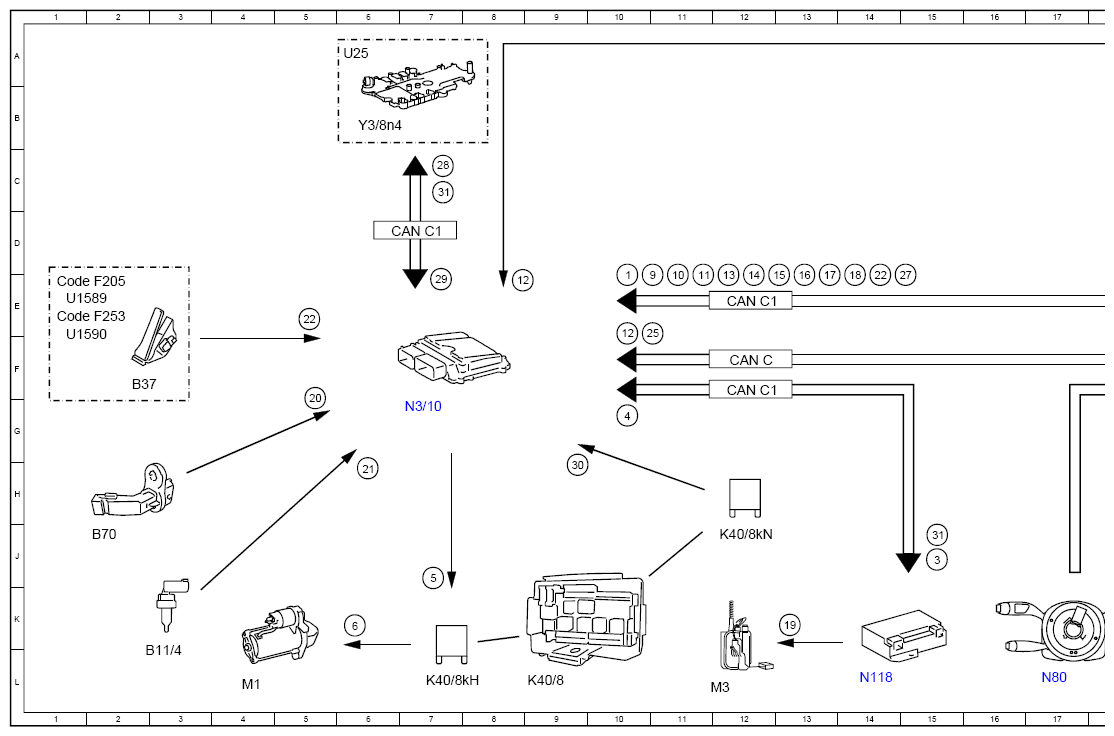

G14547398Courtesy of MERCEDES-BENZ USA

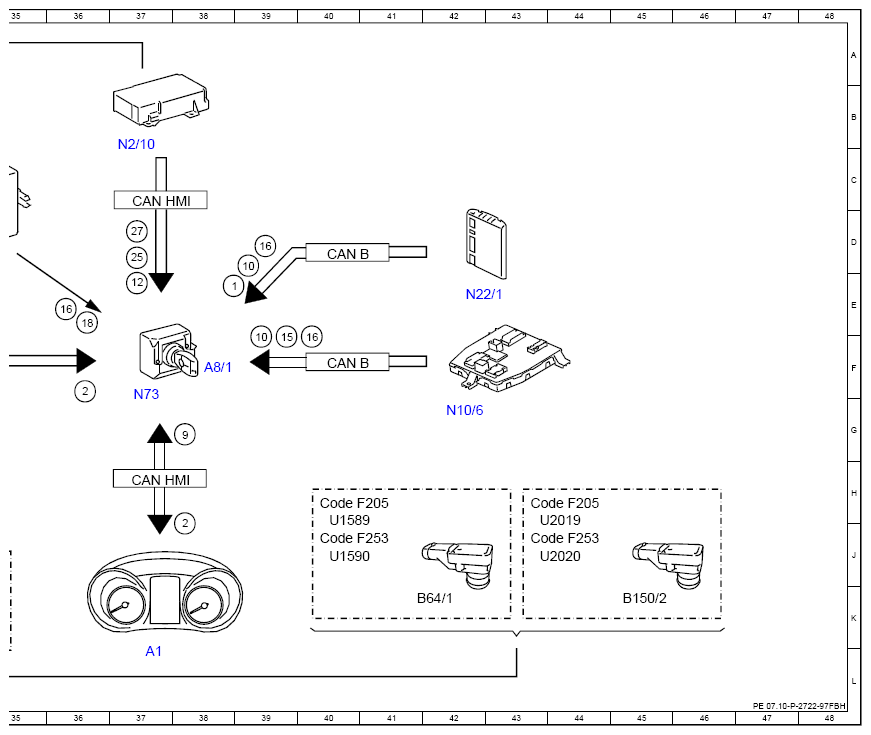

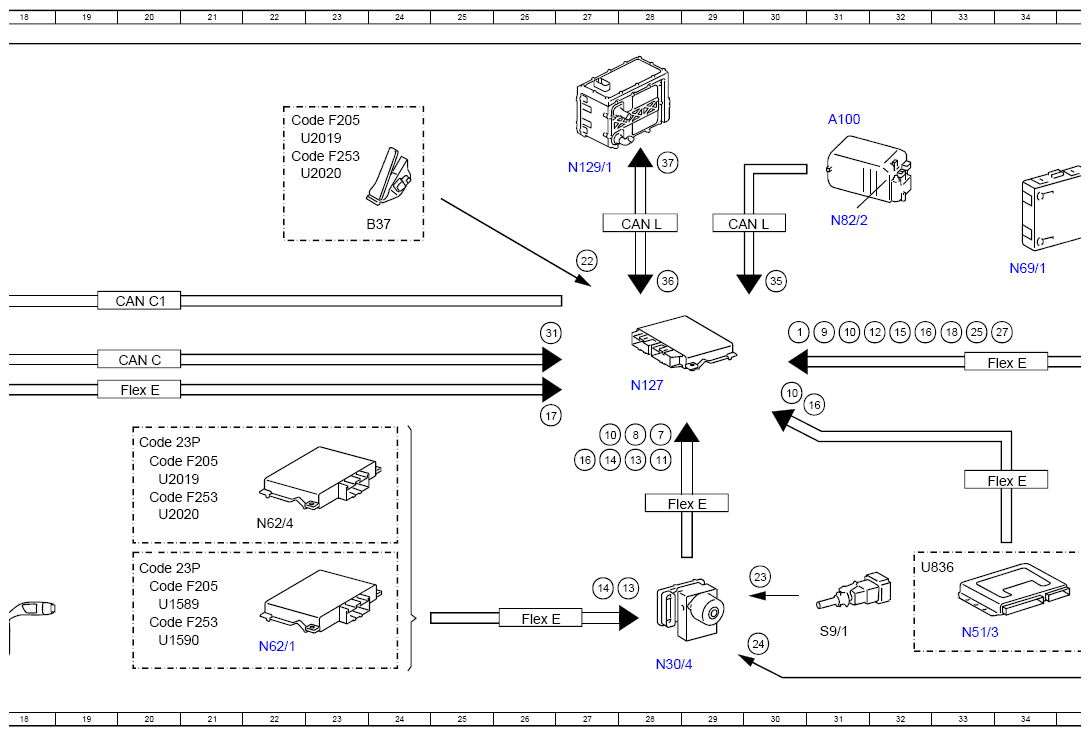

G14547399Courtesy of MERCEDES-BENZ USA
G14547400Courtesy of MERCEDES-BENZ USA
