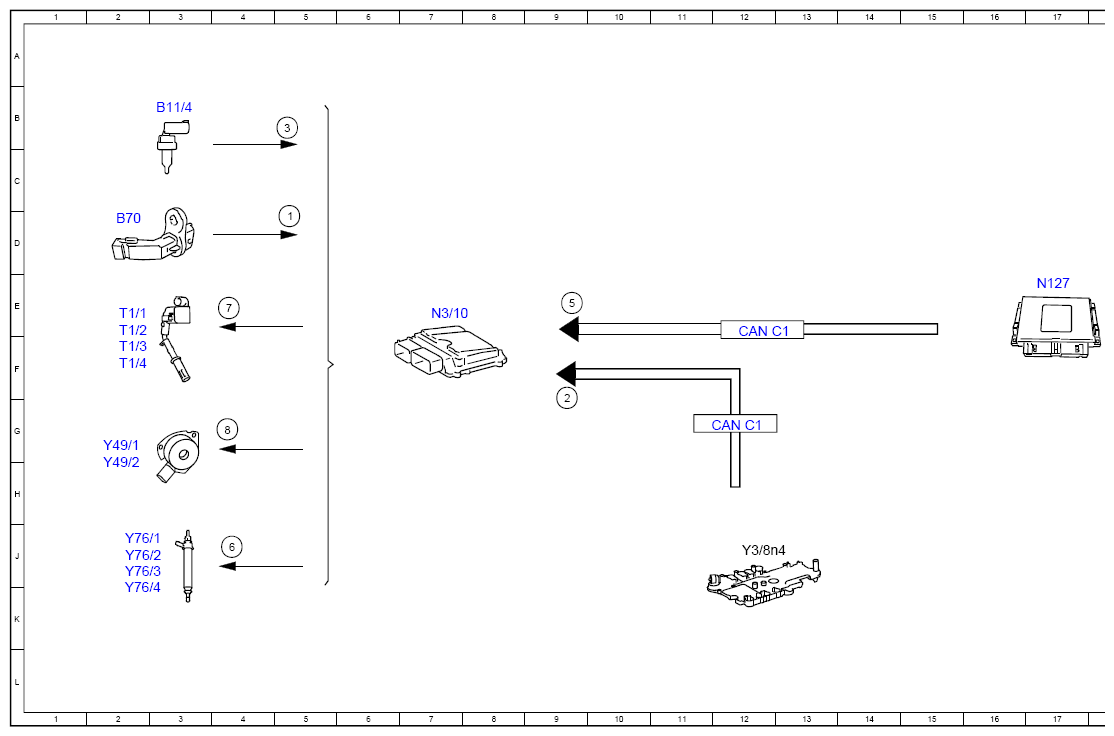

Electrical Function Schematic For Deceleration Fuel Shutoff - PE07.10-P-2714-97FBI
Engine 264.9 in model 205, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crankshaft Hall sensor, signal | 5D |
| 2 | Gear range, status | 9G |
| 3 | Coolant temperature sensor, signal | 5B |
| 4 | Accelerator pedal sensor, signal | 19F |
| 5 | Accelerator pedal position, signal | 9E |
| 6 | Fuel injectors, actuation | 4J |
| 7 | Ignition coils, actuation | 4E |
| 8 | Camshaft solenoids, actuation | 4G |
| B11/4 | Coolant temperature sensor | 3B |
| B37 | Accelerator pedal sensor | 21E |
| B70 | Crankshaft Hall sensor | 2D |
| CAN C1 | Drive train CAN | 12G |
| CAN C1 | Drive train CAN | 12E |
| N127 | Drivetrain control unit | 17E |
| N3/10 | ME-SFI [ME] control unit | 7E |
| T1/1 | Cylinder 1 ignition coil | 2E |
| T1/2 | Cylinder 2 ignition coil | 2E |
| T1/3 | Cylinder 3 ignition coil | 2F |
| T1/4 | Cylinder 4 ignition coil | 2F |
| Y3/8n4 | Fully integrated transmission control control unit | 12J |
| Y49/1 | Intake camshaft solenoid | 2G |
| Y49/2 | Exhaust camshaft solenoid | 2H |
| Y76/1 | Cylinder 1 fuel injector | 2J |
| Y76/2 | Cylinder 2 fuel injector | 2J |
| Y76/3 | Cylinder 3 fuel injector | 2J |
| Y76/4 | Cylinder 4 fuel injector | 2K |
