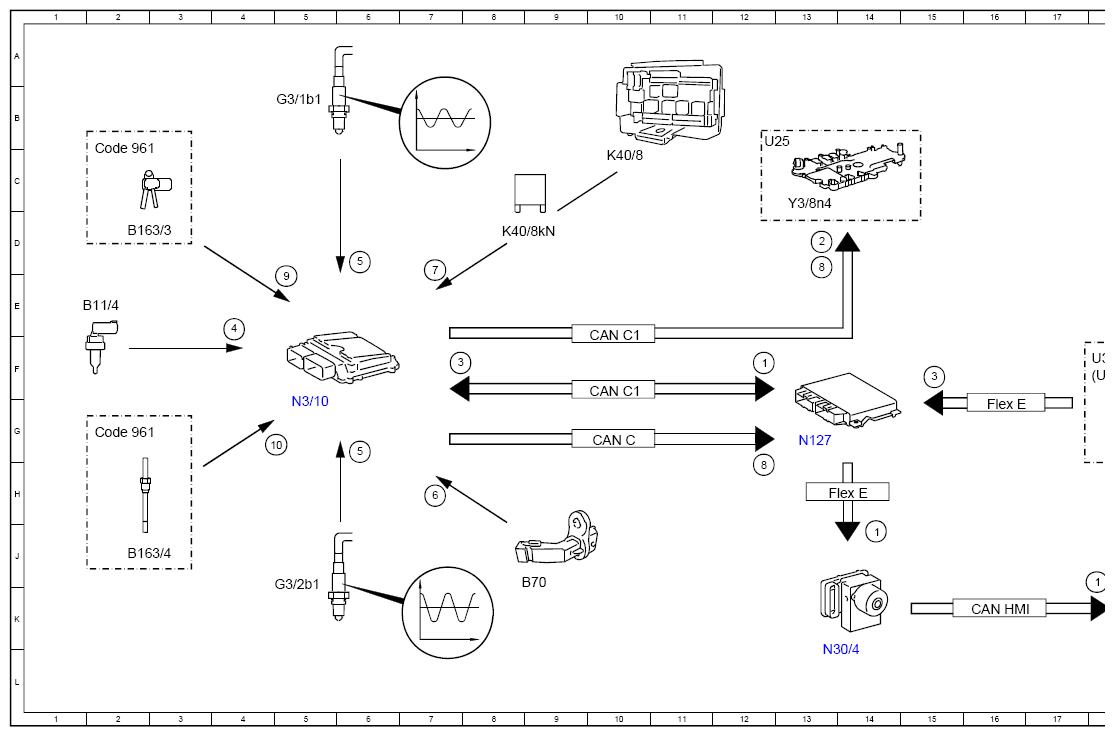

Electrical Function Schematic For Exhaust Treatment - PE14.00-P-2051-97FBH
Engine 274.9 in model 205.047/147/247
Engine 274.9 in model 253.353/354/953/954
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine diagnosis indicator lamp, actuation | 18J |
| 1 | Engine diagnosis indicator lamp, actuation | 12F |
| 1 | Engine diagnosis indicator lamp, actuation | 14J |
| 10 | Temperature sensor upstream of gasoline particulate filter, signal | 4G |
| 2 | Shift point, increase request | 13D |
| 3 | Wheel speed, signal | 15F |
| 3 | Wheel speed, signal | 7F |
| 4 | Coolant temperature sensor, signal | 4E |
| 5 | Oxygen sensor sensor element, signal | 6G |
| 5 | Oxygen sensor sensor element, signal | 6D |
| 6 | Engine speed, signal | 7H |
| 7 | Circuit 87, status | 7E |
| 8 | Engine running, signal | 13D |
| 8 | Engine running, signal | 12H |
| 9 | Gasoline particulate filter differential pressure sensor, signal | |
| A1 | Instrument cluster | 19L |
| B11/4 | Coolant temperature sensor | 2E |
| B163/3 | Gasoline particulate filter differential pressure sensor | 2D |
| B163/4 | Temperature sensor upstream of gasoline particulate filter | 2J |
| B70 | Crankshaft Hall sensor | 8J |
| CAN C | Engine CAN | 10G |
| CAN C1 | Drive train CAN | 10F |
| CAN C1 | Drive train CAN | 10F |
| CAN HMI | User interface CAN | 16K |
| Code 961 | Exhaust system with OPF, Generation 2.0 | 2C |
| Code 961 | Exhaust system with OPF, Generation 2.0 | 2G |
| Flex E | Chassis FlexRay | 13H |
| Flex E | Chassis FlexRay | 16G |
| G3/1b1 | Sensor element of oxygen sensor downstream of catalytic converter | 5B |
| G3/2b1 | Sensor element of oxygen sensor upstream of catalytic converter | 5K |
| K40/8 | Engine fuse and relay module | 10C |
| K40/8kN | Circuit 87M relay | 8D |
| N127 | Drivetrain control unit | 13G |
| N3/10 | ME-SFI [ME] control unit | 5G |
| N30/4 | Electronic Stability Program control unit | 13L |
| N30/4 | Electronic Stability Program control unit | 19G |
| U1253 | Valid for model 253 | 18F |
| U25 | Valid for automatic transmission | 12B |
| U390 | Valid for model 205 | 18F |
| Y3/8n4 | Fully integrated transmission control control unit | 13C |
