Remove/Install Intake Camshaft Lift Solenoid - AR05.20-P-6560MRI
Engine 264 in model 205, 253
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

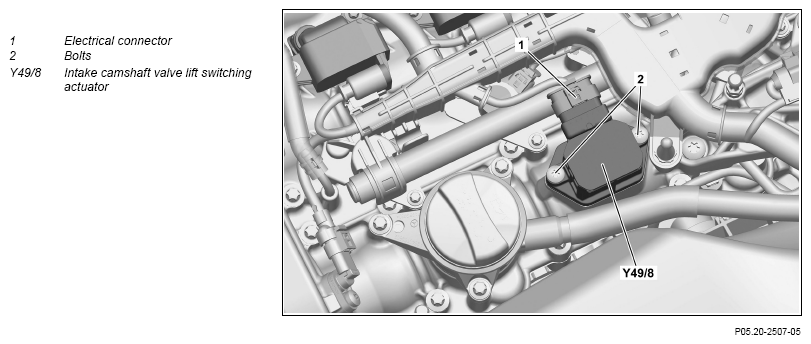

| 1 | Remove upper engine cover. | AR01.10-P-2405MRI | |
| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Remove screws (2). | *BA05.20-P-1005-05A | |
| 4 | Remove the intake camshaft valve lift changeover actuator (Y49/8). | ||
| 5 | Check that both pins of intake camshaft valve lift adjustment actuator (Y49/8) are retracted. | Do not pull out the pins of the intake camshaft valve lift switching actuator (Y49/8). Otherwise this will cause damage. If problems exist, ↓ Replace the intake camshaft valve lift switching actuator (Y49/8). |
|
| 6 | Install in the reverse order | ||
| Check | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform engine test run. While doing so, check engine for proper operation and leak tightness. |
CAMSHAFT, CAMSHAFT ADJUSTMENT
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA05.20-P-1005-05A | Bolt, valve lift switch actuator to cylinder head cover | Nm | 9 |
