Remove/Install Air Intake Pipe - AR09.10-P-8131MRI
Engine 264 in model 205, 253
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||

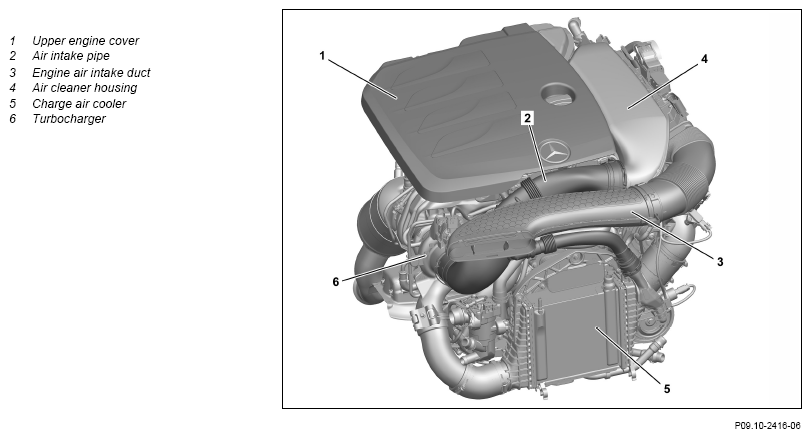

| 1 | Remove upper Engine cover (1). | AR01.10-P-2405MRI | |
| 2 | Remove Engine air intake duct (3). | ||

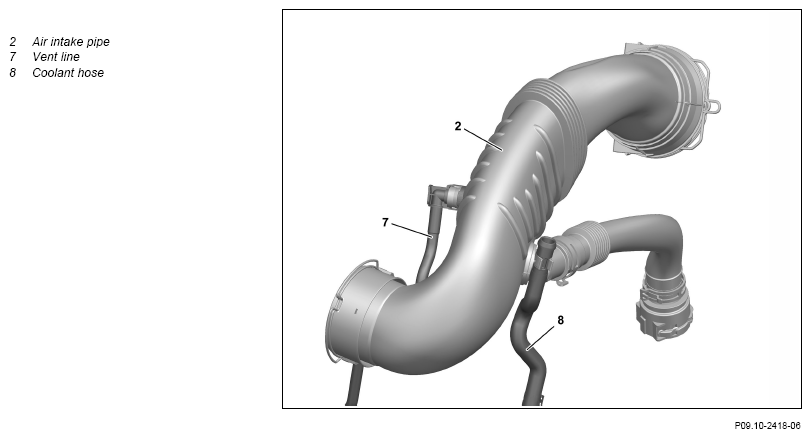

| 3 | Disconnect bleed line (7) from the air intake pipe (2). | ||
| 4 | Unclip coolant hose (8) from air intake pipe (2). | ||
| 5 | Remove air intake pipe (2) from air filter housing (4). | AR09.41-P-1311-01AL | |
| 6 | Remove air intake pipe (2) from charge air cooler (5). | AR09.41-P-1311-01AL | |
| 7 | Remove air intake pipe (2) from the exhaust gas turbocharger (6) and remove air intake pipe (4). | AR09.41-P-1311-01AL | |
| 8 | Install in the reverse order. |
