Exhaust-Gas Turbocharging, Basic Function - GF09.40-P-9900A
Engine all (4xWD)
Engine all (CAR)

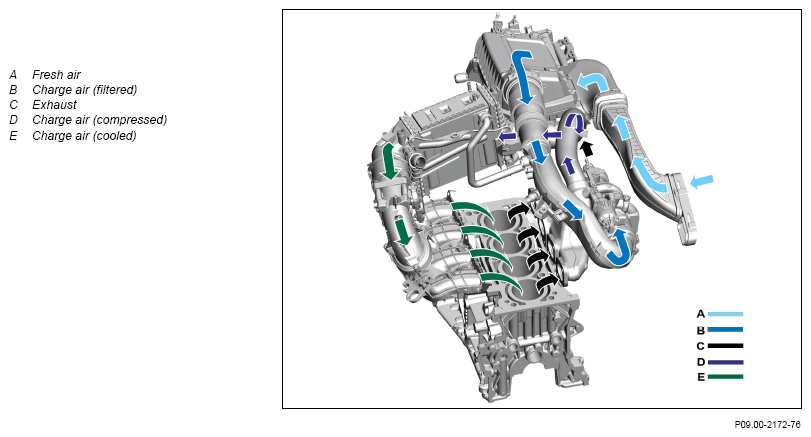

Schematic diagram of charging
Overview
This document contains information on:
- General
- Single-speed exhaust-gas turhocharging
- Multistage exhaust-gas turhocharging
- Function requirements
- Function
General
Exhaust turhocharging compacts the suctioned fresh air and increases the fill level of the cylinder. The Engine output increases. There are different charging procedures for exhaust-gas turhocharging.
Function requirements
- Combustion Engine in operation.
Single-speed exhaust-gas turhocharging
The single-speed exhaust turhocharging is realized with an exhaust gas turbocharger.
Function
The exhaust gases reach the turbine wheel via the intake on the exhaust gas turhocharger's turbine wheel housing.
Via a constriction, thermal energy is converted into kinetic energy and the turbine wheel starts to rotate.
The turbine wheel is on the same shaft as the compressor wheel. The compressor wheel is set in motion by the rotation of the turbine wheel and intakes fresh air.
The fresh air sucked in is compressed in the compressor wheel housing and reaches the Engine through an outlet via the charge air cooler.
Multistage exhaust-gas turhocharging
The multistage exhaust gas turhocharging usually takes place with two exhaust gas turhochargers of differing sizes, arranged in succession. Alternatively, exhaust turhocharging can take place with two exhaust gas turhochargers arranged in parallel, e.g. with the Biturbo.
| Function schematics | |||
|---|---|---|---|
| Function schematic for charging | Engine 608 in model 118, 177, 247 | PE09.00-P-2500-97A | |
| Engine 282 in model 118, 177, 247 | PE09.00-P-2500-97B | ||
| Engine 260 in model 118, 177, 247 Engine 264 in model 167 | PE09.00-P-2500-97C | ||
| Engine 654 in model 118, 167, 177, 247 Engine 654 in model 213, 238, 257 as of model year 2021 Engine 656 in model 167 | PE09.00-P-2500-97D | ||
| Engine 256 in model 167 Engine 256 in model 213, 238 as of model year 2021 Engine 264 in model 213, 238, 257 as of model year 2021 | PE09.00-P-2500-97E | ||
| Engine 176, 177 in model 167 Engine 177 in model 290 as of model year 2021 | PE09.00-P-2500-97F | ||
| Engine 139 in model 118, 177, 247 | PE09.00-P-2500-97G | ||
| Engine 254 in model 206, 254 Engine 256 in model 223 | PE09.00-P-2500-97H | ||
| Engine 176 in model 223 | PE09.00-P-2500-97I | ||
| Engine 279 in model 223 | PE09.00-P-2500-97J | ||
| Engine 139 in model 206, 232 | PE09.00-P-2500-97K | ||
| Engine 654 in model 206, 254 Engine 656 in model 223 | PE09.00-P-2500-97L | ||
| Engine 177 in model 223, 232 | PE09.00-P-2500-97M | ||
| Engine 274 in model 213 as of model year 2021 | PE09.00-P-2500-97N | ||
| Engine 656 in model 464 | PE09.00-P-2500-97O | ||
| Additional basic functions | |||
| Boost pressure control, basic function | GF09.40-P-1000A | ||
| Overrun mode bypass air, basic function | Engine 139, 176, 177, 254, 256, 260, 264, 274, 279, 282 | GF09.40-P-1002A | |
| Exhaust gas turbocharger, basic function | GF09.40-P-2200A | ||
| Charge air cooling, basic function | GF09.41-P-1000A | ||
| Electric additional compressor, basic function | Engine 256 | GF09.50-P-1002A | |
| Basic function of pressure sensor upstream of exhaust gas turbocharger | Engine 139.9 | GF09.40-P-2001A | |
| Temperature sensor upstream of exhaust gas turbocharger, detailed information | Engine 139.9 | GF09.40-P-2502A |
