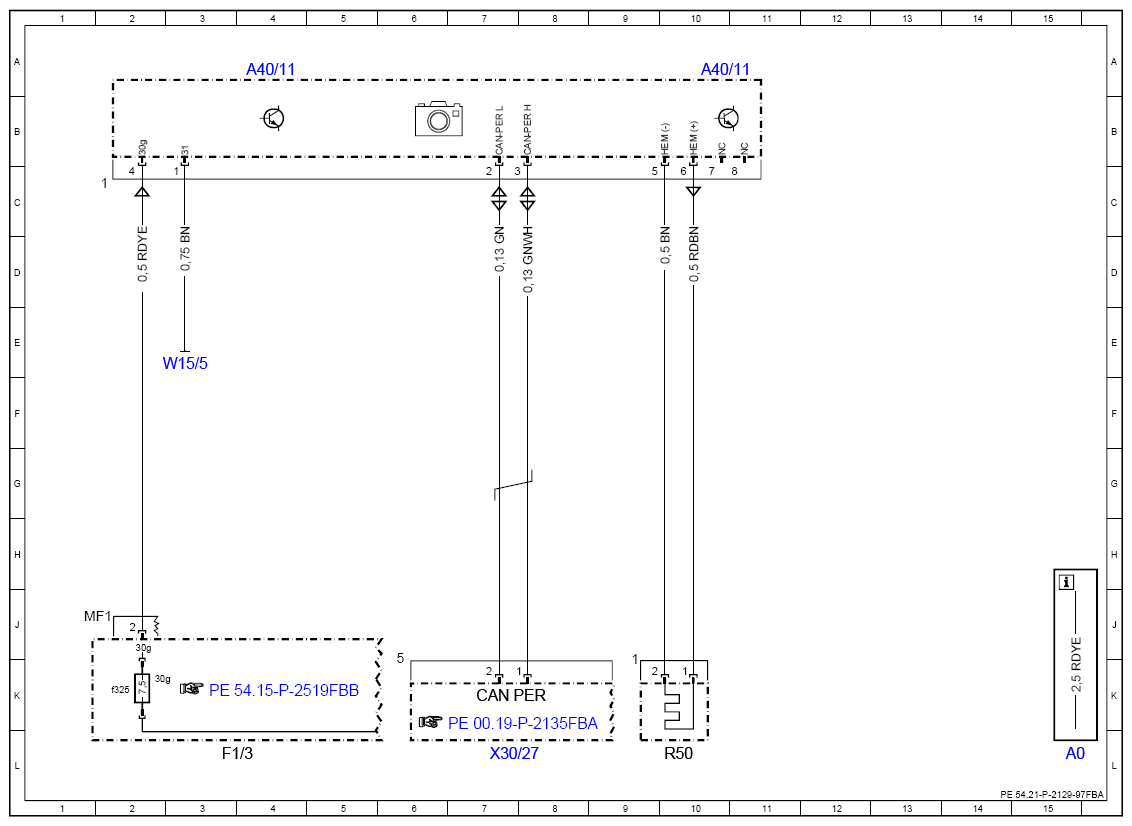

Wiring Diagram For Multifunction Camera - PE54.21-P-2129-97FBA
Model 205 up to model year 2019
with code 22P (Lane tracking package)
except code 23P (Driving Assistance package)
Multifunction camera A40/11, mono
Model 253 (except 253.99)
up to model year 2020
with code 22P (Lane tracking package)
except code 23P (Driving Assistance package)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A40/11 | Mono multifunction camera | 4A |
| A40/11 | Mono multifunction camera | 10A |
| CAN PER | Peripherals CAN | 7K |
| F1/3 | Right A-pillar fuse box | 3L |
| F1/3f325 | Fuse 325 | 2K |
| R50 | Auxiliary heater heating element | 10L |
| W15/5 | Left front footwell ground point | 3E |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 7L |
