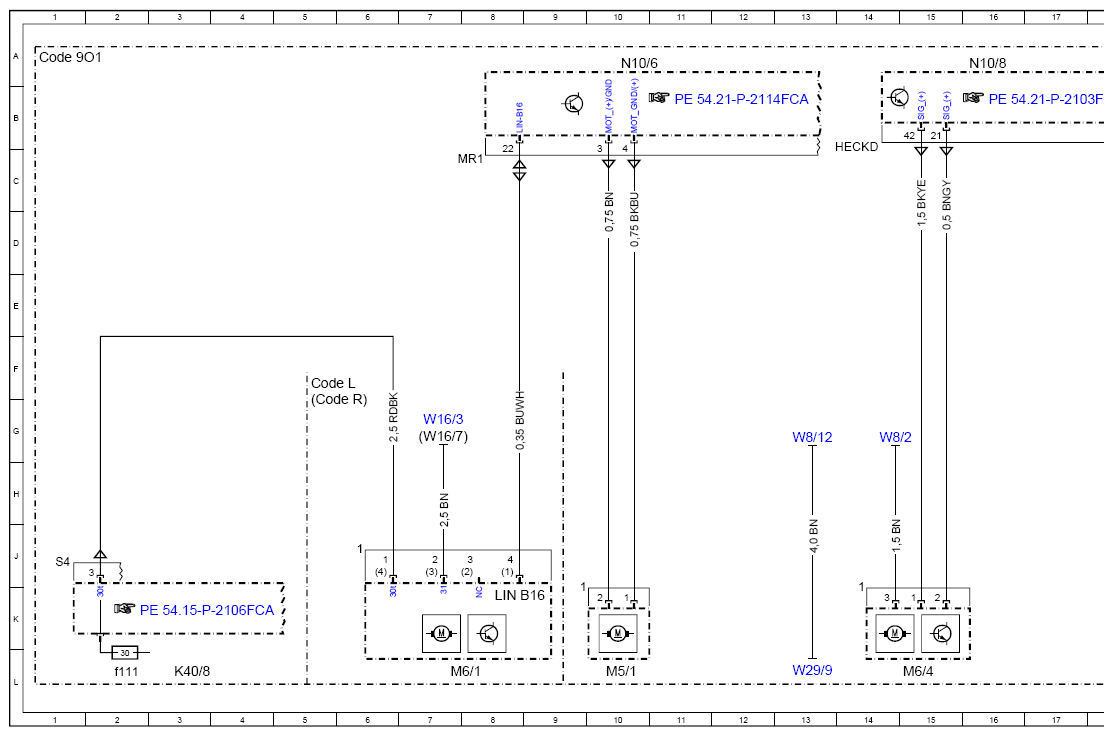

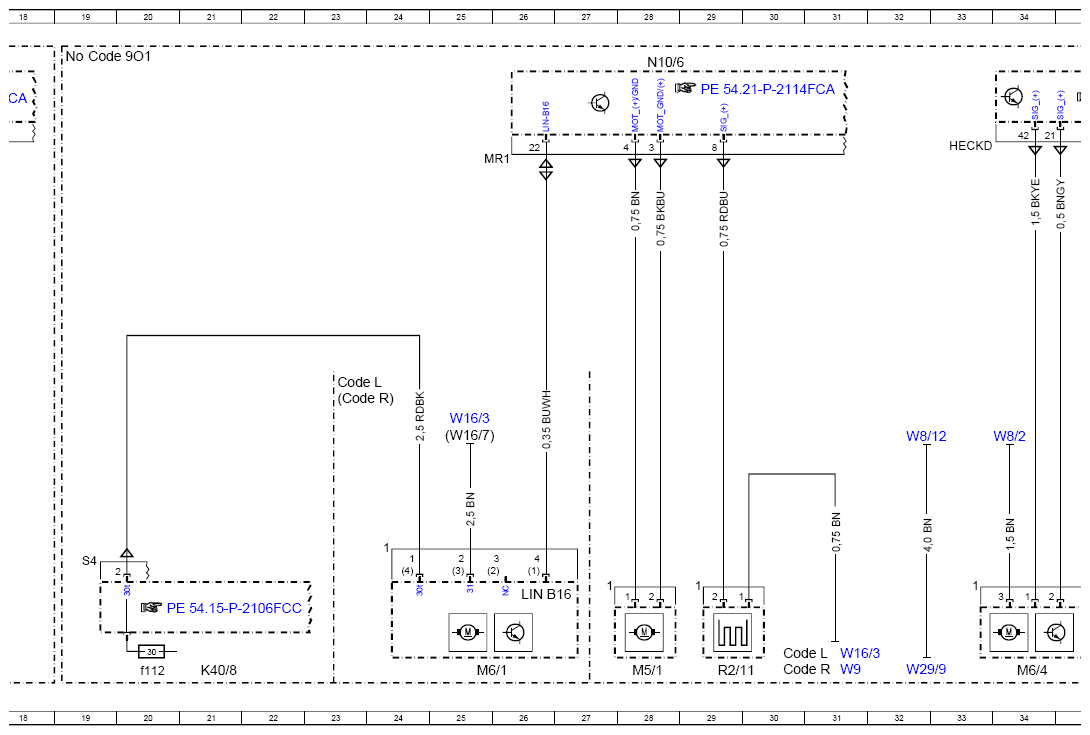

Wiring Diagram For Windshield Wiper System - PE82.30-P-2003-97FCA
Model 253 (except 253.99) as of model year 2020
Model 253.99 as of model year 2019
with code 9O1 (Fuel cell pre-installation)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| Code 9O1 | Fuel cell retrofitting | 1A |
| Code 9O1 | Fuel cell retrofitting | 19A |
| Code L | LEFT-HAND DRIVE | 5F |
| Code L | LEFT-HAND DRIVE | 30L |
| Code L | LEFT-HAND DRIVE | 23F |
| Code R | RIGHT-HAND DRIVE | 5G |
| Code R | RIGHT-HAND DRIVE | 30L |
| Code R | RIGHT-HAND DRIVE | 23G |
| K40/8 | Engine fuse and relay module | 3L |
| K40/8 | Engine fuse and relay module | 21L |
| K40/8f111 | Fuse 111 | 2L |
| K40/8f112 | Fuse 112 | 20L |
| LIN B16 | Rain and light sensor LIN | 8K |
| LIN B16 | Rain and light sensor LIN | 26K |
| M5/1 | Windshield washer system pump | 10L |
| M5/1 | Windshield washer system pump | 28L |
| M6/1 | Wiper motor | 7L |
| M6/1 | Wiper motor | 25L |
| M6/4 | Tailgate wiper motor | 15L |
| M6/4 | Tailgate wiper motor | 34L |
| N10/6 | Front SAM control unit | 10A |
| N10/6 | Front SAM control unit | 28A |
| N10/8 | Rear SAM control unit | 16A |
| N10/8 | Rear SAM control unit | 35A |
| R2/11 | Spray nozzle hose heater | 29L |
| W16/3 | Left major assembly compartment ground point | 7G |
| W16/3 | Left major assembly compartment ground point | 31L |
| W16/3 | Left major assembly compartment ground point | 25G |
| W16/7 | Right major assembly compartment electronics ground point | 7G |
| W16/7 | Right major assembly compartment electronics ground point | 25G |
| W29/9 | Right D-pillar ground point | 13L |
| W29/9 | Right D-pillar ground point | 32L |
| W8/12 | Upper right liftgate ground point | 13G |
| W8/12 | Upper right liftgate ground point | 32G |
| W8/2 | Right tailgate ground point | 14G |
| W8/2 | Right tailgate ground point | 34G |
| W9 | Left front ground point (at lamp unit) | 31L |
