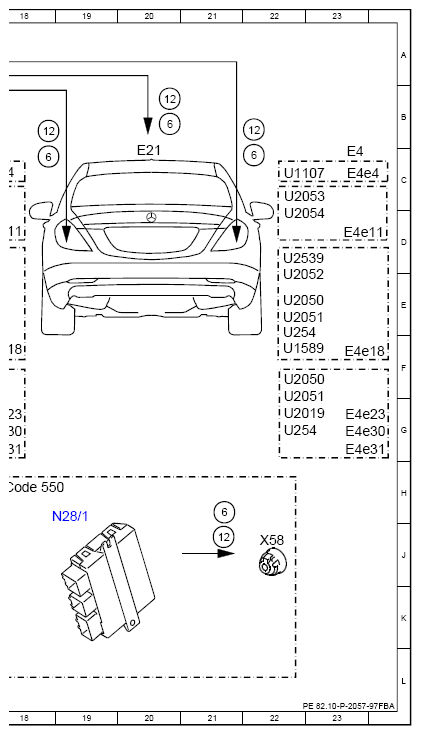

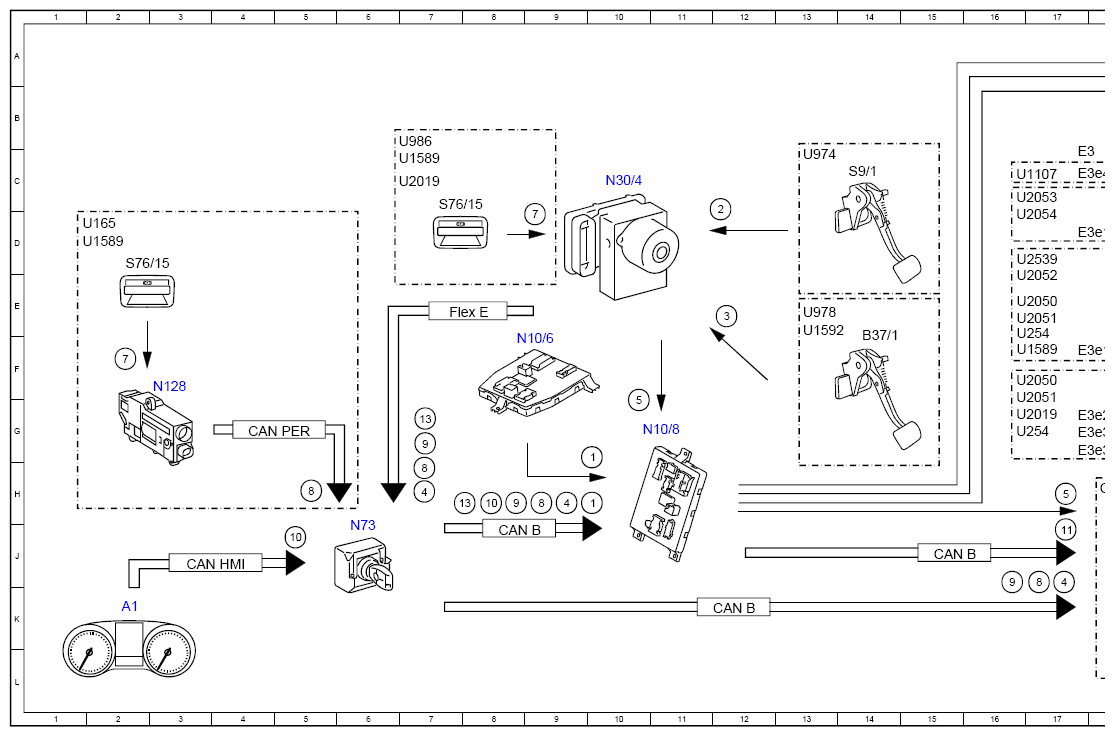

Electrical Function Schematic For Brake Light Actuation - PE82.10-P-2057-97FBA
Model 205, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 10H |
| 10 | Vehicle speed, signal | 5J |
| 10 | Vehicle speed, signal | 8H |
| 11 | Brake light dark phase, signal | 17J |
| 12 | Flashing brake lights, actuation | 20B |
| 12 | Flashing brake lights, actuation | 21j |
| 12 | Flashing brake lights, actuation | 22B |
| 12 | Flashing brake lights, actuation | 18B |
| 13 | Standstill control, status | 7G |
| 13 | Standstill control, status | 8H |
| 2 | Brake light switch, status | 12D |
| 3 | Pedal angle sensor, signal | 12E |
| 4 | Service brake, status | 7H |
| 4 | Service brake, status | 9H |
| 4 | Service brake, status | 17J |
| 5 | Circuit 54, status | 10G |
| 5 | Circuit 54, status | 17H |
| 6 | Brake lights, actuation | 20B |
| 6 | Brake lights, actuation | 21H |
| 6 | Brake lights, actuation | 22C |
| 6 | Brake lights, actuation | 18C |
| 7 | Electric parking brake switch, status | 2F |
| 7 | Electric parking brake switch, status | 9D |
| 8 | Brake lights, request | 5H |
| 8 | Brake lights, request | 7H |
| 8 | Brake lights, request | 9H |
| 8 | Brake lights, request | 17J |
| 9 | Emergency stop, signal | 7G |
| 9 | Emergency stop, signal | 8H |
| 9 | Emergency stop, signal | 16J |
| A1 | Instrument cluster | 2K |
| B37/1 | Pedal angle sensor | 14F |
| CAN B | Interior CAN | 8J |
| CAN B | Interior CAN | 12K |
| CAN B | Interior CAN | 15J |
| CAN HMI | User interface CAN | 3J |
| CAN PER | Peripherals CAN | 4G |
| Code 550 | Trailer hitch | 18H |
| E21 | Center stop lamp | 20C |
| E3 | Left rear lamp unit | 17C |
| E3e11 | Outer left brake light and tail light | 17D |
| E3e18 | Left tail lamp | 17F |
| E3e23 | Upper left brake light | 17G |
| E3e30 | Outer lower left brake light | 17G |
| E3e31 | Inner lower left brake light | 17G |
| E3e4 | Left stop lamp | 17C |
| E4 | Right rear lamp unit | 23C |
| E4e11 | Outer right brake light and tail light | 23D |
| E4e18 | Right tail lamp | 23F |
| E4e23 | Upper right brake light | 23G |
| E4e30 | Outer lower right brake light | 23G |
| E4e31 | Inner lower right brake light | 23G |
| E4e4 | Right stop lamp | 23C |
| Flex E | Chassis FlexRay | 7E |
| N10/6 | Front SAM control unit | 9F |
| N10/8 | Rear SAM control unit | 11G |
| N128 | Electric parking brake control unit | 3F |
| N28/1 | Trailer recognition control unit | 19H |
| N30/4 | Electronic Stability Program control unit | 10C |
| N73 | Electronic ignition switch control unit | 6J |
| S76/15 | Electric parking brake switch | 7C |
| S76/15 | Electric parking brake switch | 2D |
| S9/1 | Stop lamp switch | 14C |
| U1107 | Not valid for model 205.0/1 as of model year 2019 with LED lamp unit | 16C |
| U1107 | Not valid for model 205.0/1 as of model year 2019 with LED lamp unit | 22C |
| U1589 | Valid up to model year 2019 | 16F |
| U1589 | Valid up to model year 2019 | 22F |
| U1589 | Valid up to model year 2019 | 1D |
| U1589 | Valid up to model year 2019 | 6C |
| U1592 | Valid for model 253.99 | 13E |
| U165 | Valid for AMG | 1D |
| U2019 | Valid as of model year 2019 | 6C |
| U2019 | Valid as of model year 2019 | 16G |
| U2019 | Valid as of model year 2019 | 22G |
| U2050 | Valid for model 205.0 | 16E |
| U2050 | Valid for model 205.0 | 22E |
| U2050 | Valid for model 205.0 | 16F |
| U2050 | Valid for model 205.0 | 22F |
| U2051 | Valid for model 205.1 | 16E |
| U2051 | Valid for model 205.1 | 22E |
| U2051 | Valid for model 205.1 | 16G |
| U2051 | Valid for model 205.1 | 22G |
| U2052 | Valid for model 205.2 | 16E |
| U2052 | Valid for model 205.2 | 22E |
| U2053 | Valid for model 205.3 | 16C |
| U2053 | Valid for model 205.3 | 22C |
| U2054 | Valid for model 205.4 | 16D |
| U2054 | Valid for model 205.4 | 22D |
| U2539 | Valid for model 253.9 | 16D |
| U2539 | Valid for model 253.9 | 22D |
| U254 | Valid for LED lamp unit | 16F |
| U254 | Valid for LED lamp unit | 22F |
| U254 | Valid for LED lamp unit | 16G |
| U254 | Valid for LED lamp unit | 22G |
| U974 | Not valid for hybrid drive | 13C |
| U978 | Valid for hybrid drive | 13E |
| U986 | Not valid for AMG | 6B |
| X58 | Trailer socket | 22J |
