Remove/Install Front Axle Differential Propeller Shaft - AR41.10-P-0070LW

Model 253 with transmission 724.2

Model 253 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)

MODIFICATION NOTES

31.03.2020 Document completely revised.

Shown on vehicle with VAG 175

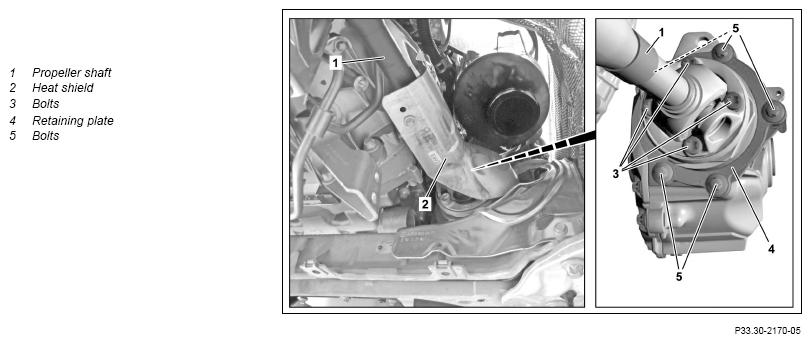

Fig 1: Front Axle Differential Propeller Shaft Components Location - Model 253 With Transmission 725.0 With Code M005 (Shown On Vehicle With Vag 175)
G14470923Courtesy of MERCEDES-BENZ USA

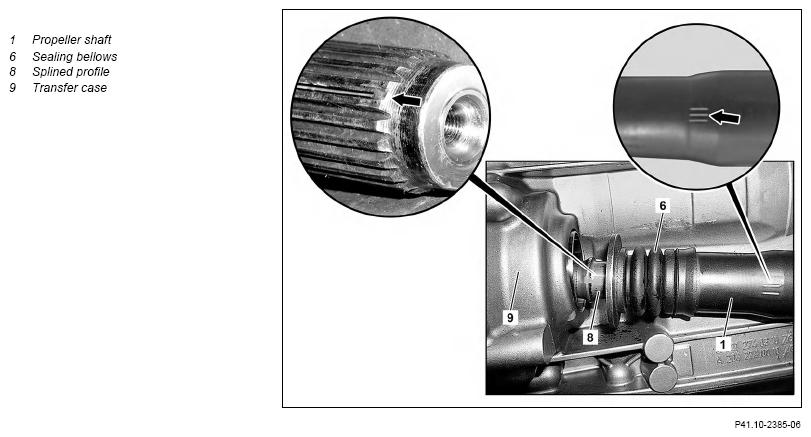

G14470924Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A
Notice  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
Notice  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
REMOVING Remove
1 Put transmission into neutral position.
2 Release parking brake.
3.1 Remove diesel particulate filter. Model 253 with engine 642 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 253 with engine 651 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 253 with engine 642 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)		 AR14.40-P-1000OGW
    Model 253 with engine 651 with transmission 725.0 with code 474 (Diesel particulate filter) with code M005 (Vehicles with 4MATIC/all-wheel drive) AR14.40-P-1000OLE
3.2 Remove the catalytic converter. Model 253 with engine 264 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 253 with engine 274.9 with transmission 724.2 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 253 with engine 274.9 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
    Model 253 with engine 274.9 with transmission 724.2 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 253 with engine 274.9 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)		 AR49.10-P-5500LW
    Model 253 with engine 264 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR49.20-P-0100MRI
3.3 Remove right catalytic converter. Model 253 with engine 276.8 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR49.10-P-5503MMV
3.4 Release right catalytic converter. Model 253 with engine 177 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR49.20-P-0102MNG
3.5 Remove exhaust system. Model 253 with engine 654 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 253 with engine 656 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
    Model 253 with engine 654 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR49.10-P-7142OLI
    Model 253 with engine 656 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR49.10-P-7142OIF
4 Remove heat shield (2).
5 Remove bracket of heat shield (2).
6 Remove right holder of lower rear engine compartment lining.
7 Remove heat shield from transmission.   AR27.40-P-0700-01LF
8 Operate service brake and remove bolts (3). NOTES Do not counterhold the propeller shaft (1) at the universal joint.
Otherwise the needle roller bearings and seals of the propeller shaft (1) will be damaged.
IMPORTANT Aid of helper required.
9 Release wiring harness for crankshaft position sensor/engine oil fill level sensor from oil pan. Model 253 with engine 177 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
10 Remove bolts (5) and slide retaining plate (4) onto propeller shaft (1). With VAG 175
11 Remove holder of lambda sensor plugs behind right catalytic converter. Model 253 with engine 177 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
12 Remove rear propeller shaft from output flange of transfer case (9), slide backward and shim. Model 253 with engine 264 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR41.10-P-0040-01LW
REFER TO SHOP-MADE TOOLS Drift for releasing the fitting sleeves in the flexible couplings   WF58.50-P-4110-01A
    SPECIAL TOOL Counterholder Fig 2
13 Unscrew screws of rear engine carrier at underbody and lower transmission far enough to enable the propeller shaft (1) to be removed. Model 253 with engine 264 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR22.10-P-4360LWB
REFER TO SPECIAL TOOLS 000 588 10 62 00 Support plate   WS26.00-P-3309B
REFER TO SPECIAL TOOLS 000 588 11 62 00 Major assembly mount   WS01.00-P-0092B
14 Remove propeller shaft (1) from front axle differential.
15 Pull propeller shaft (1) off splined profile (8) on transfer case (9).
16 Remove propeller shaft (1) downwards.
17 Check sealing bellows (6) for damage. If the sealing bellows (6) is damaged.
↓
Install new seal bellows (6).		 AR41.10-P-0070-01A
REFER TO CAPACITIES & SPECIFICATIONS   Long-life grease (NLGI grade 2) BB00.40-P-0266-02A
INSTALLING Install
18 Grease splined profile (8). Klueber Microlube GNY 202 *BR00.45-Z-1071-06A
19 Attach propeller shaft (1) to splined profile (8) of transfer case (9). IMPORTANT The marking (arrow) on the splined profile (8) must line up exactly with the marking (arrow) on the propeller shaft (1).
20 Lift transmission and screw in screws of rear engine carrier at underbody. Model 253 with engine 264 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR22.10-P-4360LWB
REFER TO SPECIAL TOOLS 000 588 10 62 00 Support plate   WS26.00-P-3309B
REFER TO SPECIAL TOOLS 000 588 11 62 00 Major assembly mount   WS01.00-P-0092B
21 Attach rear propeller shaft at output flange of transfer case (9). Model 253 with engine 264 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR41.10-P-0040-01LW
    TORQUE SPECIFICATION Flex disk or joint flange at transmission/rear axle differential or propeller shaft *BA41.10-P-1001-01L
    SPECIAL TOOL Counterholder Fig 2
22 Attach holder of lambda sensor plugs behind right catalytic converter. Model 253 with engine 177 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
TORQUE SPECIFICATION M6		 *BA00.10-P-1002-01A
23 Position propeller shaft (1) on front axle differential.
24 Position retaining plate (4) on front axle differential and screw in screws (5). With VAG 175
IMPORTANT Replace screw/bolts (5).
TORQUE SPECIFICATION Collar bolt, retaining plate to front axle differential		 *BA33.30-P-1004-03G
25 Attach wiring harness for crankshaft position sensor/engine oil fill level sensor to oil pan. Model 253 with engine 177 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
26 Operate service brake and screw in screws (3). NOTES Do not counterhold the propeller shaft (1) at the universal joint.
Otherwise the needle roller bearings and seals of the propeller shaft (1) will be damaged.
IMPORTANT Replace screws/bolts (3).
IMPORTANT Aid of helper required.
    TORQUE SPECIFICATION Screw/bolt, propeller shaft to front axle gear *BA33.30-P-1012-03G
27 Install heat shield on transmission.   AR27.40-P-0700-01LF
    TORQUE SPECIFICATION Model 253 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) Screw/bolt, heat shield to oil pan *BA27.10-P-1009-04H
    TORQUE SPECIFICATION Model 253 with transmission 724.2 with code M005 (Vehicles with 4MATIC/all-wheel drive) Bolt, heat shield to sprag *BA27.10-P-1013-04G
28 Install right holder of lower rear engine compartment lining.
29 Install bracket of heat shield (2). TORQUE SPECIFICATION Collar bolt, holder for heat shield to transmission/holder for exhaust system *BA33.30-P-1010-03G
30 Install heat shield (2). TORQUE SPECIFICATION Collar bolt, heat shield to holder of heat shield/retaining plate/front axle differential *BA33.30-P-1009-03G
31.1 Fasten right catalytic converter. Model 253 with engine 177 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR49.20-P-0102MNG
31.2 Install right catalytic converter. Model 253 with engine 276.8 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR49.10-P-5503MMV
31.3 Install catalytic converter. Model 253 with engine 264 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 253 with engine 274.9 with transmission 724.2 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 253 with engine 274.9 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
    Model 253 with engine 274.9 with transmission 724.2 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 253 with engine 274.9 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)		 AR49.10-P-5500LW
    Model 253 with engine 264 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR49.20-P-0100MRI
31.4 Install diesel particulate filter. Model 253 with engine 642 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 253 with engine 651 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
    Model 253 with engine 642 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR14.40-P-10000GW
    Model 253 with engine 651 with transmission 725.0 with code 474 (Diesel particulate filter) with code M005 (Vehicles with 4MATIC/all-wheel drive) AR14.40-P-10000LE
31.5 Install exhaust system. Model 253 with engine 654 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 253 with engine 656 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 253 with engine 654 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)		 AR49.10-P-71420LI
    Model 253 with engine 656 with transmission 725.0
with code M005 (Vehicles with 4MATIC/all-wheel drive)		 AR49.10-P-71420IF
HEADLESS SCREWS: BOLTS AND NUTS, COARSE-PITCH THREAD

Number Designation Model all (4xWD, CAR, smart)
BA00.10-P-1002-01A M6 8.8 Galvanized Nm 9
Phosphated Nm 9
10.9 Galvanized Nm 13
Phosphated Nm 12
12.9 Galvanized Nm 16
Phosphated Nm 14
AUTOMATIC TRANSMISSION COMPLETE

Number Designation Transmission 725.0/1
BA27.10-P-1009-04H Screw/bolt, heat shield to oil pan Nm 9
AUTOMATIC TRANSMISSION COMPLETE

Number Designation Transmission 724.2
BA27.10-P-1013-04G Bolt, heat shield to sprag Nm 9
FRONT AXLE GEAR

Number Designation Model 253
BA33.30-P-1004-03G Collar bolt, retaining plate to front axle differential Nm 55
FRONT AXLE GEAR

Number Designation Model 253
BA33.30-P-1009-03G Collar bolt, heat shield to holder of heat shield/retaining plate/front axle differential Nm 8
FRONT AXLE GEAR

Number Designation Model 253
BA33.30-P-1010-03G Collar bolt, holder for heat shield to transmission/holder for exhaust system M6 Nm 11
M8 Nm -
FRONT AXLE GEAR

Number Designation Model 253
BA33.30-P-1012-03G Screw/bolt, propeller shaft to front axle gear Stage 1 Nm 45
Stage 2 ∠° 95
PROPELLER SHAFT

Number Designation Model 253
BA41.10-P-1001-01L Flex disk or joint flange at transmission/rear axle differential or propeller shaft Self-locking nut   Nm -
Direct threaded connection Stage 1 Nm 60
Stage 2 ∠° 90
Fig 2: Identifying Counterholder (176 589 00 40 00)
G11128638Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1071-06A Klueber Microlube GNY 202 A 001 989 44 51 10
