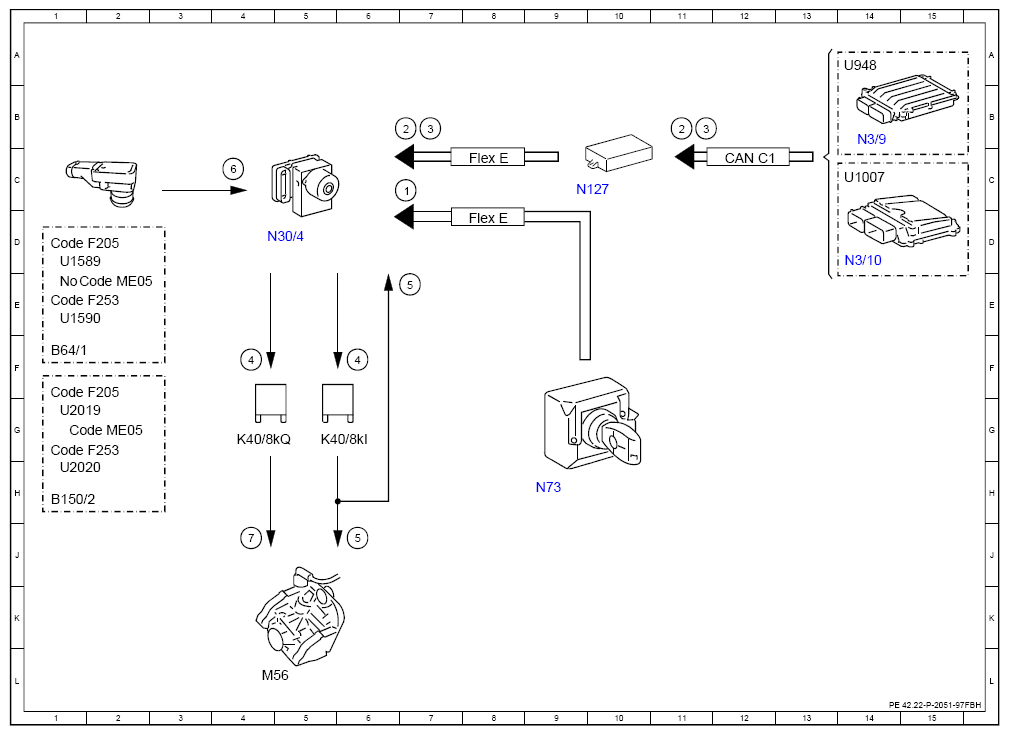

Electrical Function Schematic For Vacuum Supply - PE42.22-P-2051-97FBH
Model 205.012/013/047/053/054/147/212/213/247/253, 253.353/354/953/954/99
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 7C |
| 2 | Engine running, signal | 7B |
| 2 | Engine running, signal | 11B |
| 3 | Drivetrain operational, signal | 7B |
| 3 | Drivetrain operational, signal | 11B |
| 4 | Vacuum pump relay, actuation | 6F |
| 4 | Vacuum pump relay, actuation | 4F |
| 5 | Vacuum pump, actuation (-) | 6J |
| 5 | Vacuum pump, actuation (-) | 7E |
| 6 | Brake vacuum sensor, signal | 4C |
| 7 | Vacuum pump, actuation | 4J |
| B150/2 | Dual brake vacuum sensor | 1H |
| B64/1 | Brake vacuum sensor | 1F |
| CAN C1 | Drive train CAN | 12C |
| Code F205 | MODEL SERIES 205 | 1D |
| Code F205 | MODEL SERIES 205 | 1F |
| Code F253 | MODEL SERIES 253 | 1E |
| Code F253 | MODEL SERIES 253 | 1G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 1E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 1G |
| Flex E | Chassis FlexRay | 8C |
| Flex E | Chassis FlexRay | 8D |
| K40/8kI | Vacuum pump relay (+) | 5G |
| K40/8kQ | Relay Q | 4G |
| M56 | Vacuum pump | 4L |
| N127 | Drivetrain control unit | 9C |
| N3/10 | ME-SFI [ME] control unit | 14D |
| N3/9 | CDI control unit | 14B |
| N30/4 | Electronic Stability Program control unit | 4D |
| N73 | Electronic ignition switch control unit | 9H |
| U1007 | Valid for engine 274 | 14C |
| U1589 | Valid up to model year 2019 | 1D |
| U1590 | Valid up to model year 2020 | 1E |
| U2019 | Valid as of model year 2019 | 1G |
| U2020 | Valid as of model year 2020 | 1H |
| U948 | Valid for diesel engine 651 | 14A |
