Remove/Install Load Compartment Floor - AR68.80-P-5800LWG
Model 253.311/353/911/953
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||

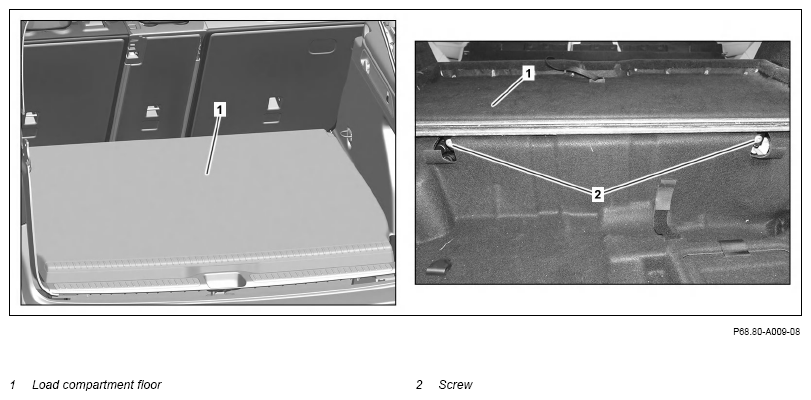

| 1 | Fold up rear section of the load compartment floor (1). | ||
| 2 | Unscrew bolts (2). | *BA54.10-P-1002-02H | |
| 3 | Fold load compartment floor (1) toward the front and remove. | ||
| 4 | Install in the reverse order. |
HIGH-VOLTAGE BATTERY
| Number | Designation | Model 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)) | ||
|---|---|---|---|---|
| BA54.10-P-1002-02H | Bolt, high-voltage battery bracket to high-voltage battery | M8 | Nm | 30 |
