Unfasten/Fasten Drip Rail In Area Of Windshield - AR88.80-P-4000LW

Model 253

Model 293

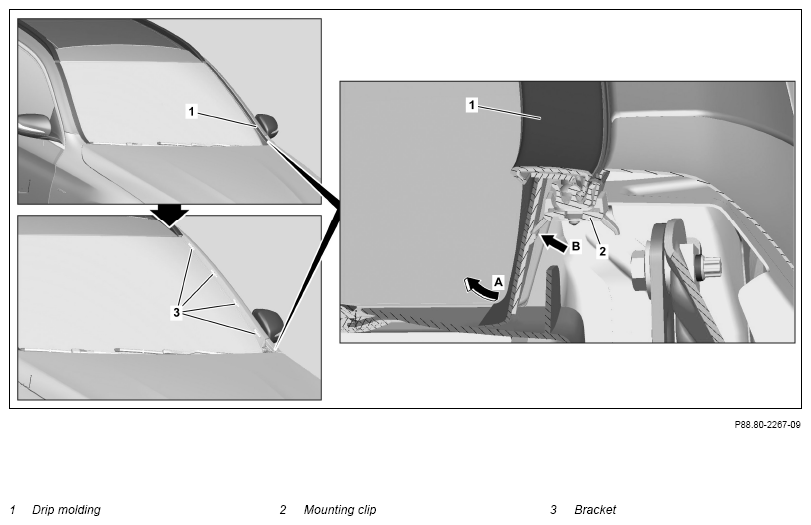

G14471628

Courtesy of MERCEDES-BENZ USA

Shown on model 253.9

	Remove
1	Open hood.
2	Pull lower part of drip rail (1) in direction of vehicle center (arrow A) and release from catch (arrow B) at retaining clip (2).
3	Press drip rail (1) in area of retaining clip (2) in direction of fender and remove upwards from retaining clip (2).
4	Unclip drip rail (1) upwards from brackets (3).	The number of brackets (3) can vary depending on vehicle model and equipment.
	Install
5	Position drip rail (1) evenly at brackets (3) and retaining clip (2) and clip in.	The number of brackets (3) can vary depending on vehicle model and equipment.
		Ensure that sealing lips are positioned correctly. The drip rail should arrest audibly in the retaining clip (2).
6	Close hood.
