Change Changeable Cover For Illuminated Door Sill Molding - AZ82.20-P-0009LWG

Model 253.3 (except 253.364/388/389) as of 6/1/19

Model 253.3/9 up to 5/31/19

Model 253.364/388/389/964/988/989 as of 6/1/19

with code U25 (AMG illuminated door sills)

Model 253.9 (except 253.964/988/989) as of 6/1/19

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove

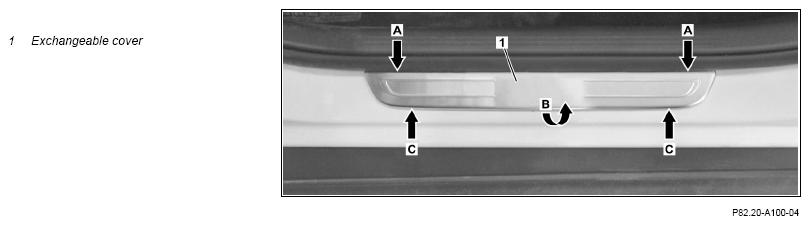

1	Carefully push exchangeable cover (1) to outer side of rocker panel (arrow A), fold exchangeable cover (1) upwards on side facing to outer side of rocker panel (arrow B), carefully push exchangeable cover (1) towards sealing frame (arrow C) and remove.	Carefully remove exchangeable cover (1). Otherwise, the paint at the entrance may be damaged. Long wedge	Fig 1
	Install

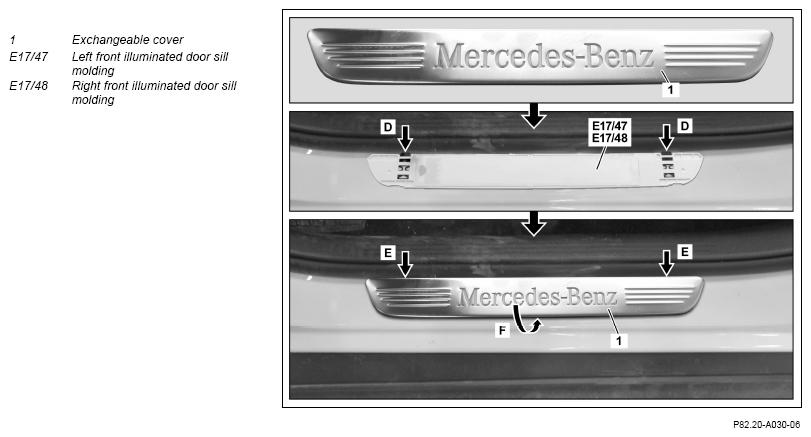

2	Hook retaining lugs of exchangeable cover (1) onto springs (arrow D) of left front illuminated door sill molding (E17/47) or right front illuminated door sill molding (E17/48) and push against the spring force to the outer side of the rocker panel (arrow E), while doing so carefully press the exchangeable cover (1) towards the left front illuminated door sill molding (E17/47) or the right front illuminated door sill molding (E17/48) (arrow F) until the exchangeable cover (1) engages.	Carefully install exchangeable cover (1). Otherwise, the paint at the entrance may be damaged. Ensure that it is seated and arrest properly.
		Cleaner	*BR00.45-Z-1025-04A

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
