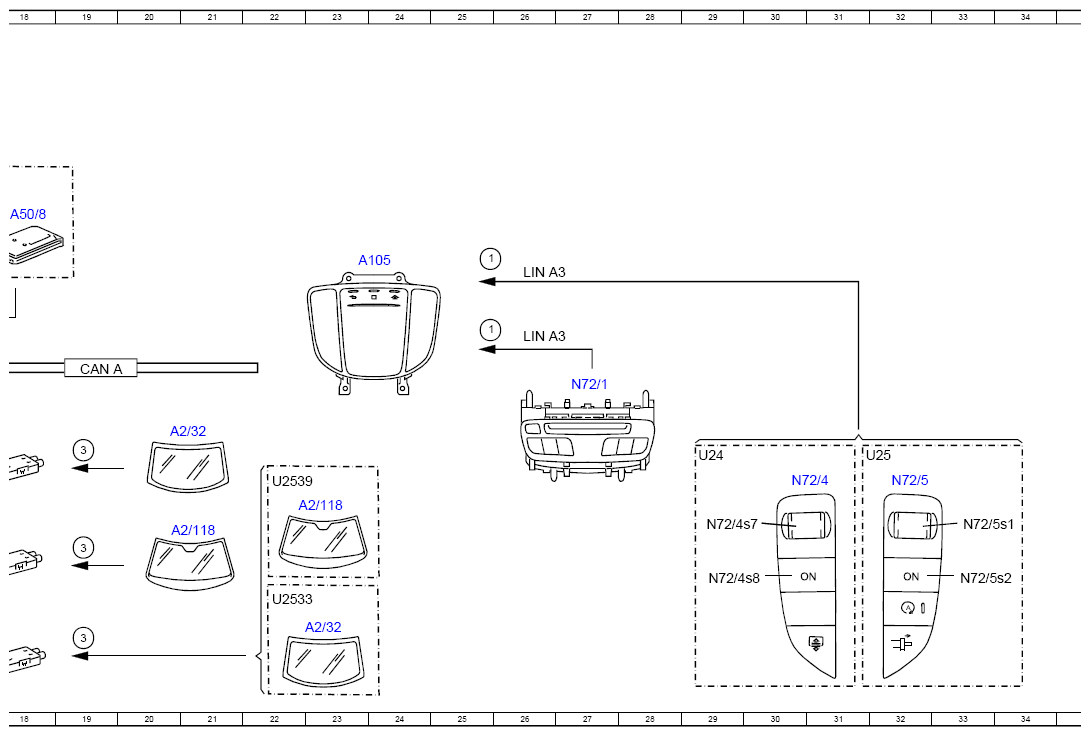

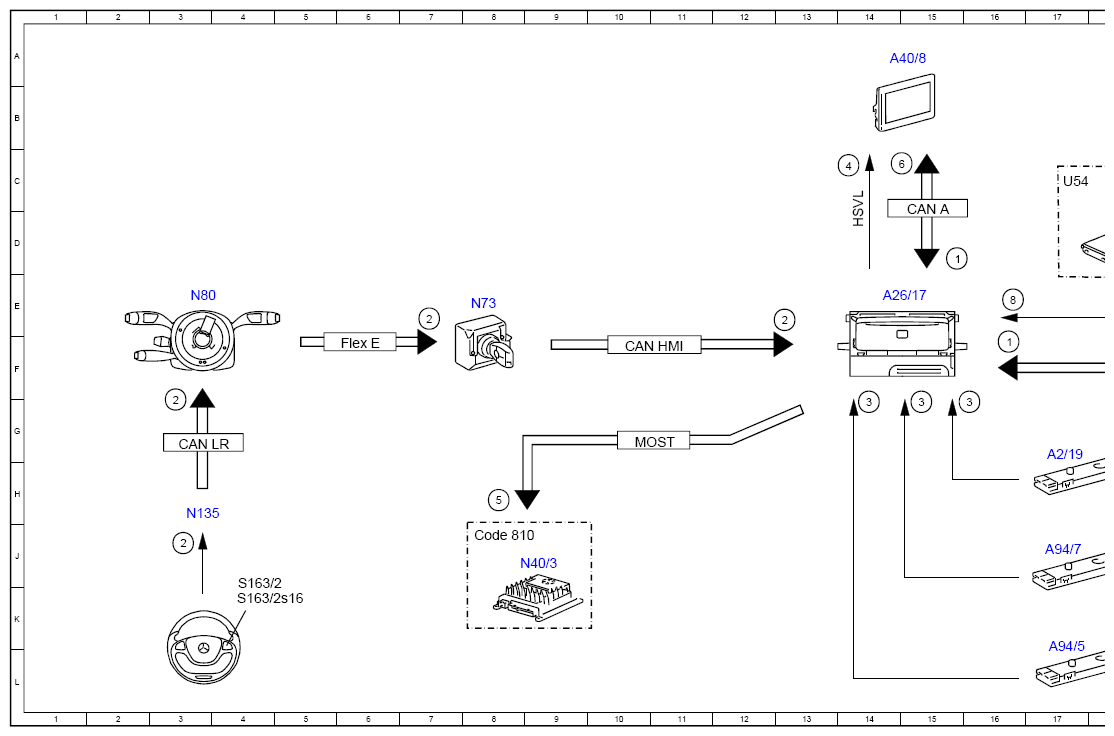

Electrical Function Diagram For TV Mode, Function - PE82.85-P-2065-97FBC
Model 253 (except 253.99) as of model year 2020
with code 865 (digital TV)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 16F |
| 1 | Operation, signal | 15D |
| 1 | Operation, signal | 25E |
| 1 | Operation, signal | 25D |
| 2 | Multifunction steering wheel button group, signal | 3G |
| 2 | Multifunction steering wheel button group, signal | 7E |
| 2 | Multifunction steering wheel button group, signal | 13E |
| 2 | Multifunction steering wheel button group, signal | 3J |
| 3 | TV antennas, signal | 14G |
| 3 | TV antennas, signal | 19G |
| 3 | TV antennas, signal | 19J |
| 3 | TV antennas, signal | 15G |
| 3 | TV antennas, signal | 16G |
| 3 | TV antennas, signal | 19K |
| 4 | Low voltage differential signal video signal data transfer, signal | 14C |
| 5 | Audio, signal | 8H |
| 6 | Switch-on request, signal | 14C |
| 8 | Access authorization code, signal | 16E |
| A105 | Touchpad | 23D |
| A2/118 | Windshield antenna | 21J |
| A2/118 | Windshield antenna | 23H |
| A2/19 | FM2, DAB and TV2 antenna amplifier | 17G |
| A2/32 | Rear window antenna | 23K |
| A2/32 | Rear window antenna | 20G |
| A26/17 | Head unit | 14E |
| A40/8 | Audio/COMAND® display | 14A |
| A50/8 | TV card reader | 18D |
| A94/5 | TV 1 and DAB band III antenna | 17L |
| A94/7 | TV 3 antenna amplifier | 17J |
| CAN A | Telematics CAN | 19F |
| CAN A | Telematics CAN | 15D |
| CAN HMI | User interface CAN | 10F |
| CAN LR | Steering wheel CAN | 3G |
| Code 810 | Sound system | 8J |
| Flex E | Chassis FlexRay | 6F |
| HSVL | High-speed video link | 14C |
| LIN A3 | LCP LIN | 26E |
| LIN A3 | LCP LIN | 26F |
| MOST | Media Oriented System Transport | 10G |
| N135 | Steering wheel electronics | 3H |
| N40/3 | Sound system amplifier control unit | 9J |
| N72/1 | Upper control panel control unit | 27F |
| N72/4 | Left lower control panel | 30H |
| N72/4s7 | Volume control button | 29J |
| N72/4s8 | "ON" button | 29J |
| N72/5 | Right lower control panel | 32H |
| N72/5s1 | Volume adjustment button | 33J |
| N72/5s2 | "ON" button | 33J |
| N73 | Electronic ignition switch control unit | 8E |
| N80 | Steering column module control unit | 3E |
| S163/2 | Head unit multifunction steering wheel button group | 4K |
| S163/2s16 | Volume adjustment switch | 4K |
| U24 | Valid for manual transmission | 29G |
| U25 | Valid for automatic transmission | 31G |
| U2533 | Valid for model 253.3 | 22K |
| U2539 | Valid for model 253.9 | 22H |
| U54 | Not valid for Japan | 17C |
