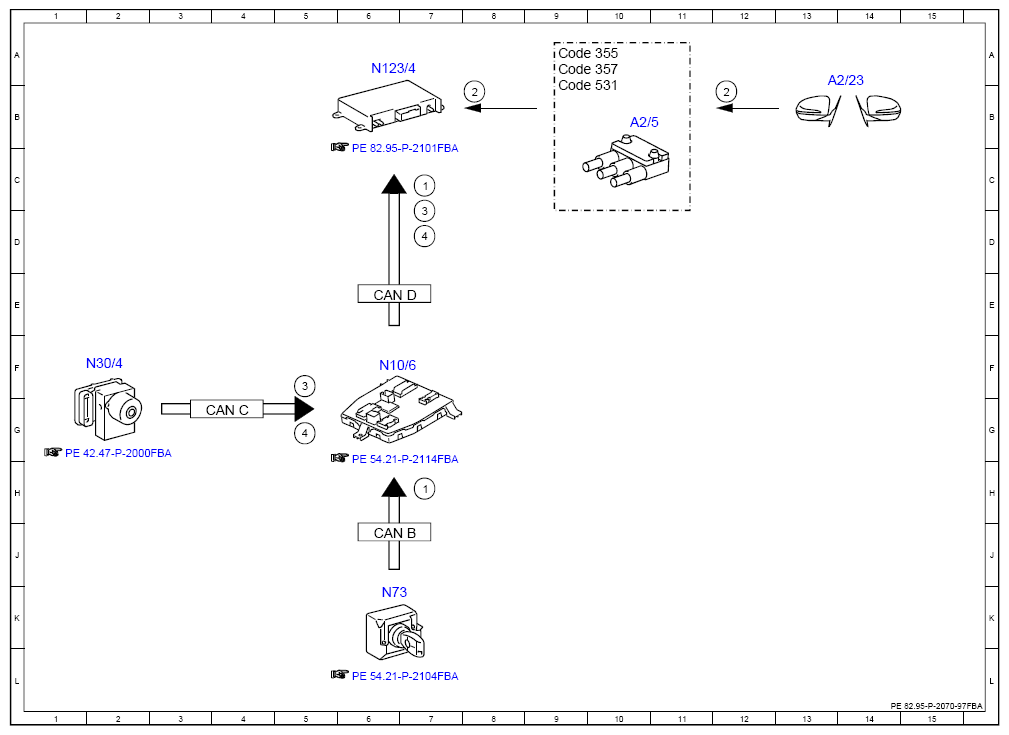

Electrical Function Diagram For Position Finding, Function - PE82.95-P-2070-97FBA
Model 205, 253
with code 348 (Emergency call/assistant system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15R, status | 7H |
| 1 | Circuit 15R, status | 7C |
| 2 | GPS, signal | 8B |
| 2 | GPS, signal | 12B |
| 3 | Wheel speed, signal | 5F |
| 3 | Wheel speed, signal | 7D |
| 4 | Yaw rate, signal | 7D |
| 4 | Yaw rate, signal | 5G |
| A2/23 | GPS antenna | 13A |
| A2/5 | Global positioning system antenna splitter | 10B |
| CAN B | Interior CAN | 6J |
| CAN C | Engine CAN | 4G |
| CAN D | Diagnostic CAN | 6E |
| Code 355 | Preinstallation for navigation retrofit | 9A |
| Code 357 | Card navigation | 9A |
| Code 531 | COMAND® APS | 9B |
| N10/6 | Front SAM control unit | 6F |
| N123/4 | Emergency call system control unit | 6A |
| N30/4 | Electronic Stability Program control unit | 2F |
| N73 | Electronic ignition switch control unit | 6K |
