Transfer GPS Antenna Electrical Line - AN82.85-P-0007-07LWI
Model 253.3
Connection scheme

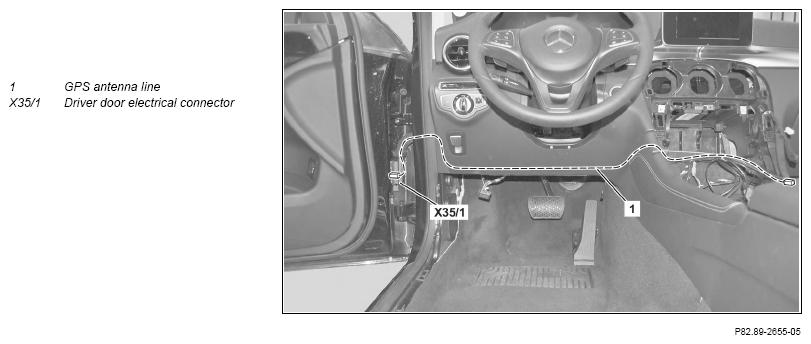

Routing diagram, shown on left-hand drive vehicle
- Route line for GPS antenna (1) from center console along vehicle wiring harness and behind the instrument panel cover to the A-pillar on the driver side.

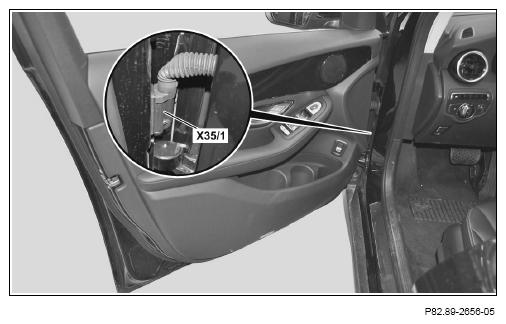

- Disconnect the driver door electrical connector (X35/1), to do so slide lock on connector downwards.
- Carefully remove rubber grommet from A-pillar.
- Remove rubber grommet from clutch housing and slide upwards.
- Cut cable tie that fastens wiring harness to clutch housing.
- Remove support body from clutch housing.

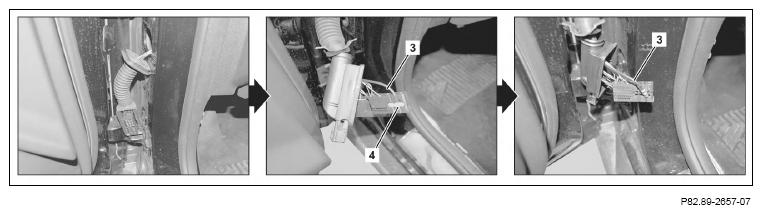

- Remove line (3) from supporting body, to do so, release locking clip (4).
- Remove line (3) from clutch housing and strap down.
Fasten line (3) onto wiring harness under rubber grommet using a cable tie and insulate.

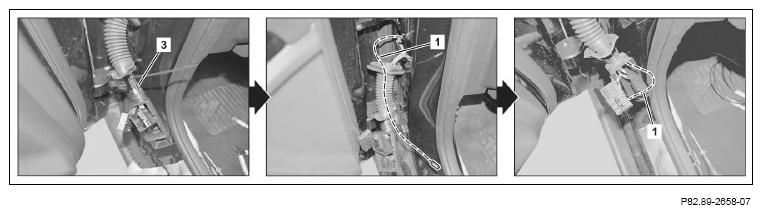

- Route line for GPS antenna (1) through opening in A-pillar.
- Route line for GPS antenna (1) through rubber grommet to supporting body.
- Install line for the GPS antenna (1) into supporting body and fix in place using locking clip (4).
- Install supporting body into coupling housing.
- Fix wiring harness in place on coupling housing.
Use cable ties.
- Mount rubber grommet onto coupling housing.
- Connect driver door electrical connector (X35/1).
- Install line for GPS antenna (1) into free slot next to Bluetooth line (2) in the blue double supporting body.
The coupling is connected at a later stage to the head unit.
- Fix line for GPS antenna (1) onto vehicle wiring harness using cable ties.
Ensure that routing of lines is correct.
To avoid damage and malfunctions.
