Retrofit Holder For CA Module Card Reader - AZ82.60-P-0032-02LWH

Model 253

with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))

Information on preventing damage to electronic components due to electrostatic discharge

AH54.00-P-0001-01A

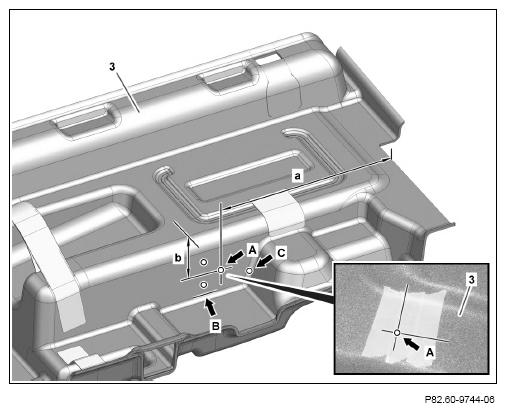

1. Mask area for fastening holder for card reader CA-module to cargo space recess paneling (3) with adhesive tape.
2. Mark drillhole (arrow A).

   Dimensions:

   a 305 mm

   b = 40 mm

   Courtesy of MERCEDES-BENZ USA

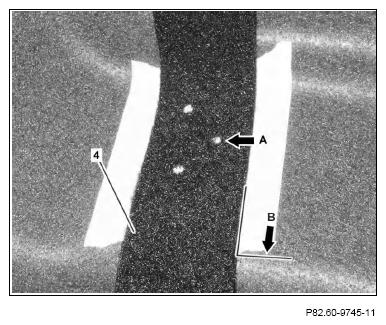

3. Apply Velcro tape (4) to previously marked drillhole (arrow A), align and mark remaining drillholoes in accordance with Velcro tape (4).

   Velcro tape (4) must be aligned at a right angle to reference edge (arrow B).

4. Remove Velcro tape (4).
5. Drill marked drillholes to 6 mm ø.

   Courtesy of MERCEDES-BENZ USA

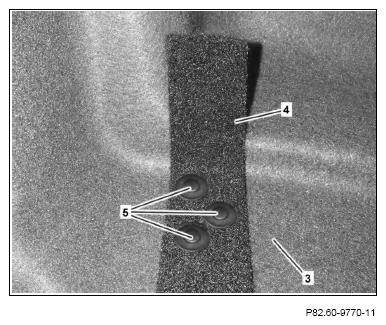

6. Fasten velcro tape (4) with expanding rivet (5) to cargo space recess paneling (3.

   Use expanding rivet (5) with Ø 6 mm. Expanding rivets (5) enclosed.

   Courtesy of MERCEDES-BENZ USA

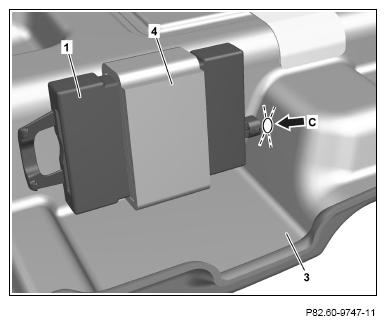

7. Fasten card reader CA-module (1) to cargo space recess paneling (3) using Velcro tape (4).
8. Mark drillhole (arrow C) for feedthrough of electrical wiring set for card reader CA-module (1.
9. Remove card reader CA-module (1).
10. Drill marked drillhole (Arrow C) to 6 mm ø.

    Courtesy of MERCEDES-BENZ USA

11. Cut previously drilled hole (arrow C) at four points (dashed lines) approx. 4 mm.

    Courtesy of MERCEDES-BENZ USA
