Retrofit Exit And Warning Lamp With Logo Projector - AZ82.20-P-0020A

Model 156.9

with code U62 (Exterior light and sight package)

Model 166.0

with code 876 (Interior Light package)

except code 587 (Logo projection via mirror)

Model 166.8

with code 876 (Interior Light package)

except code 587 (Logo projection via mirror)

Model 176.0

with code U62 (Exterior light and sight package)

Model 212.0/2

as of model year 2014

except code 953 (Standard equipment)

except code H76 (Facet-look aluminum trim)

Model 212.0/2

up to model year 2014

Model 246.2

with code U62 (Exterior light and sight package)

Model 253.3/9

with code 876 (Interior Light package)

Model 253.3/9

with code 877 (Ambient lighting)

Model 292.3

with code 876 (Interior Light package)

except code 587 (Logo projection via mirror)

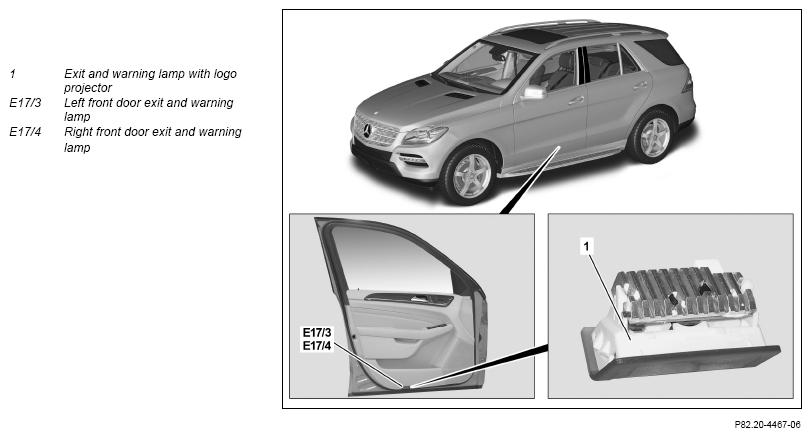

Illustrated on model 166.0

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove left front door exit and warning lamp (E17/3) and right front door exit and warning lamp (E17/4).	The left front door exit and warning lamp (E17/3) and right front door exit and warning lamp (E17/4) are no longer required.
		Long wedge	Fig 1
	Install
2	Install exit and warning lamp with logo projector (1) in front door on right and left.		AZ82.20-P-0020-04A
		If the entrance and exit illumination on the overhead control panel control unit is switched on, the exit and warning lamp with logo projector (1) lights up as soon as it is connected to the vehicle wiring harness. The heat sink fitted to the exit and warning lamp with logo projector (1) gets very hot.
		Wiring harness repair kit, basic	Fig 3
		New passenger car wiring harness repair kit	Fig 2
	Update Vehicle Documentation (VeDoc)
3	Attach "Exit and warning lamp with logo projector retrofitted as per AZ82.20-P-0020A note" under field organization texts to DG 72 and DG 82.
	Check
4	Perform function test.	The entry and exit illumination on overhead control panel control unit must be switched on.

Part no.	Designation	Quantity
KG 98 (see XENTRY Portal parts information)	Parts kit for exit and warning lamps with logo projector	1
