Retrofit Electrical Wiring Harness For CA Module Card Reader - AZ82.60-P-0032-01LWH

Model 253

with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A

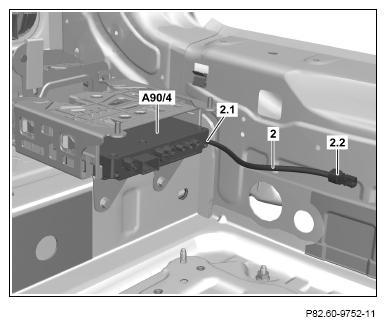

1. Connect blue 1-pin plug (2.1) to tuner unit (A90/4).
2. Route wiring harness (2) to the installation location of the CA module card reader.

   Note the extended length of the wiring harness (2) that connects to the CA module card reader.

   The blue 1-pin plug (2.2) will be connected at a later stage to the CA module card reader.
