Retrofit Control Unit - AZ82.20-P-0001-05LWG
Model 253
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1074-01A | Self-adhesive felt strip 40X2 mm | A 001 983 23 10 |
| BR00.45-Z-1084-02A | Binder Duotec® Mushroom in mushroom velcro - with adhesive 32 | Klettband Technik Schultz UG Schulstrasse 6 71111 Waldenbuch Germany Tel.: +49 (0) 7157 6754-83 or 82 Fax: +49 (0) 7157 6696815 info@klettband-technik.de http://www.klettband-technik.de |

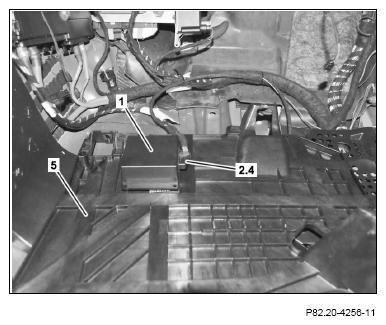

- Stick felt tape (6) to upper side of illuminated door sill molding control unit (1).
- Stick Velcro strips (7) to lower side of illuminated door sill molding control unit (1).
- Remove carrier foils from Velcro strips of illuminated door sill molding control unit (1).
- Glue illuminated door sill molding control unit (1) onto footrest (5).
- Place footrest (5) into front passenger footwell.
- Connect black 18-pin connector (2.4) of illuminated door sill molding wiring harness to illuminated door sill molding control unit (1).
