Remove/Install WiFi Antenna In Center Of Instrument Panel - AR82.85-P-0013LWE
Model 253
as of model year 2020
with code 549 (Connect 20 HIGH (NTG6))

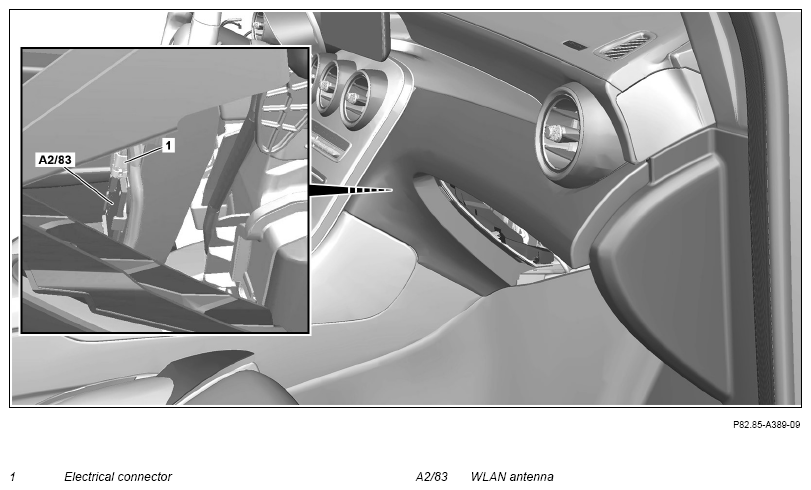

Fig 1: WLAN/WiFi Antenna In Center Of Instrument Panel Components Location - Model 253 As Of Model Year 2020 With Code 549
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove glove compartment housing. | AR68.10-P-1400LW | |
| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Unclip WiFi antenna (A2/83) from holder and remove. | ||
| 4 | Install in the reverse order. |
