Remove/Install WLAN Antenna - AR82.85-P-0004LWX
Model 253 (except 253.992/993)
as of model year 2020
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Remove glove compartment. | When removing the WLAN antenna (A2/83) on the front passenger side. | |
| AR68.10-P-1400LW | |||
| 1.2 | Remove fuse and relay module. | When removing the WLAN antenna (A2/83) on the driver's side. | |
| AR54.15-P-0003LWX | |||

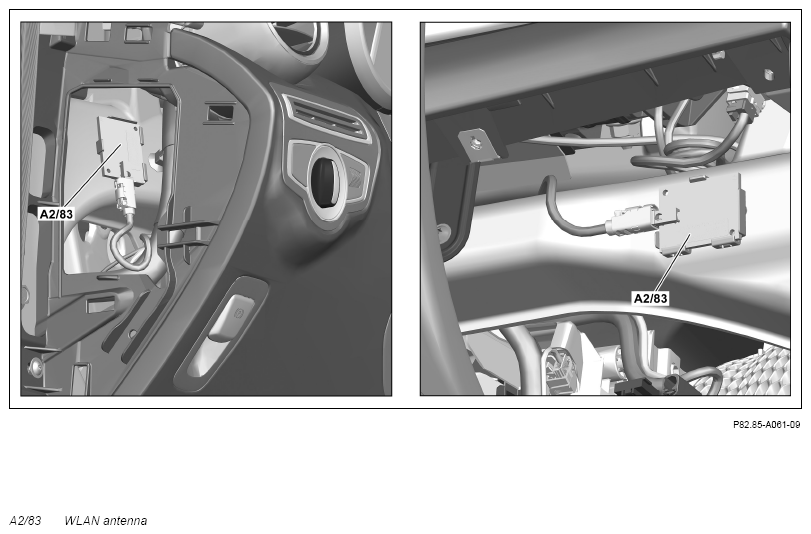

| 2 | Disconnect electrical connector at WLAN antenna (A2/83). | ||
| 3 | Unclip WLAN antenna (A2/83) from holder and remove. | ||
| 4 | Install in the reverse order |
