Remove/Install Tuner Unit - AR82.60-P-2002LWG
Model 253 (except 253.992/993)
with code 536 (Sirius satellite radio complete system)
Model 253 (except 253.992/993)
with code 537 (DAB digital radio standard (Digital Audio Broadcast))
Model 253 (except 253.992/993)
with code 865 (digital TV)
Shown with CODE 810 (Sound system)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Carry out initial startup of tuner unit (A90/4) | When replacing tuner unit (A90/4). | |
| 2 | Switch off ignition and remove transmitter key | ||
| 3 | Remove right cover in load compartment at side | AR68.30-P-1180LWG | |
| 4 | Remove spare wheel well paneling | ||

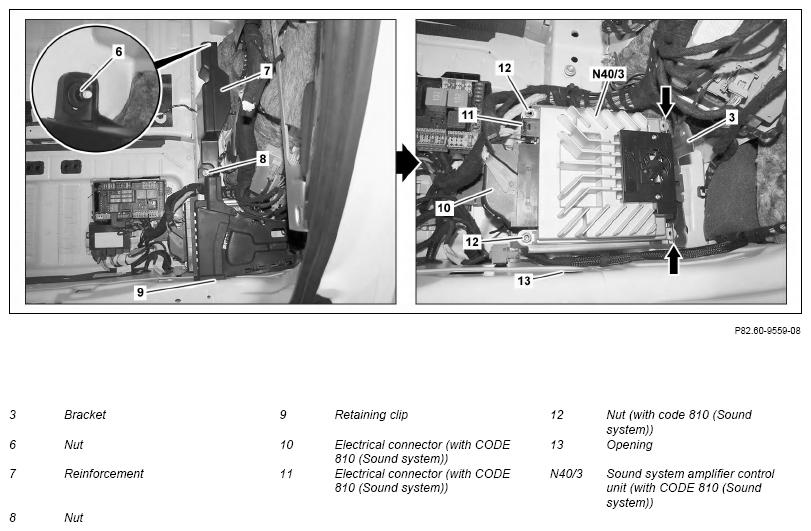

| 5 | Unscrew nut (6) | ||
| 6 | Unscrew nut (8) | ||
| 7 | Remove reinforcement (7) upward | ||
| 8 | Release and disconnect electrical connector (10) | Model 253 (except 253.992/993) with code 536 (Sirius satellite radio complete system) with code 810 (Premium sound system) Model 253 (except 253.992/993) with code 537 (DAB digital radio standard (Digital Audio Broadcast)) with code 810 (Premium sound system) Model 253 (except 253.992/993) with code 810 (Premium sound system) with code 865 (digital TV) |
|
| 9 | Release and disconnect electrical connector (11) | Model 253 (except 253.992/993) with code 536 (Sirius satellite radio complete system) with code 810 (Premium sound system) Model 253 (except 253.992/993) with code 537 (DAB digital radio standard (Digital Audio Broadcast)) with code 810 (Premium sound system) Model 253 (except 253.992/993) with code 810 (Premium sound system) with code 865 (digital TV) |
|
| 10 | Unscrew nuts (12) | Model 253 (except 253.992/993) with code 536 (Sirius satellite radio complete system) with code 810 (Premium sound system) Model 253 (except 253.992/993) with code 537 (DAB digital radio standard (Digital Audio Broadcast)) with code 810 (Premium sound system) Model 253 (except 253.992/993) with code 810 (Premium sound system) with code 865 (digital TV) |
|
| 11 | Remove sound system amplifier control unit (N40/3) | Model 253 (except 253.992/993) with code 536 (Sirius satellite radio complete system) with code 810 (Premium sound system) Model 253 (except 253.992/993) with code 537 (DAB digital radio standard (Digital Audio Broadcast)) with code 810 (Premium sound system) Model 253 (except 253.992/993) with code 810 (Premium sound system) with code 865 (digital TV) |
|

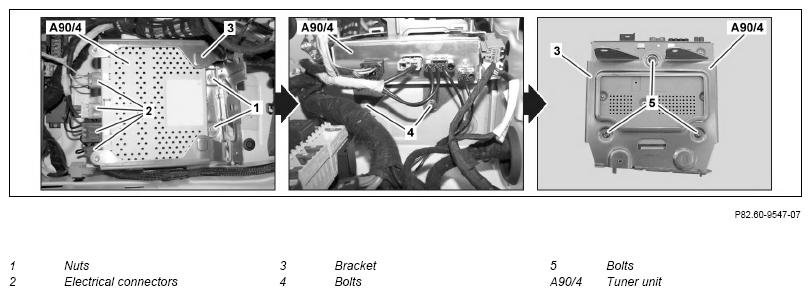

| 12 | Unscrew nuts (1) | ||
| 13 | Release and disconnect electrical connectors (2) | ||
| 14 | Remove screws/bolts (4) | ||
| 15 | Remove bracket (3) with tuner unit (A90/4) | ||
| 16 | Remove bolts (5) | When replacing tuner unit (A90/4). | |
| 17 | Remove tuner unit (A90/4) from bracket (3) | When replacing tuner unit (A90/4). | |
| 18 | Install in the reverse order |
