Remove/Install TV Card Reader - AR82.85-P-7367LXM

Model 253

as of model year 2020

with code 865 (digital TV)

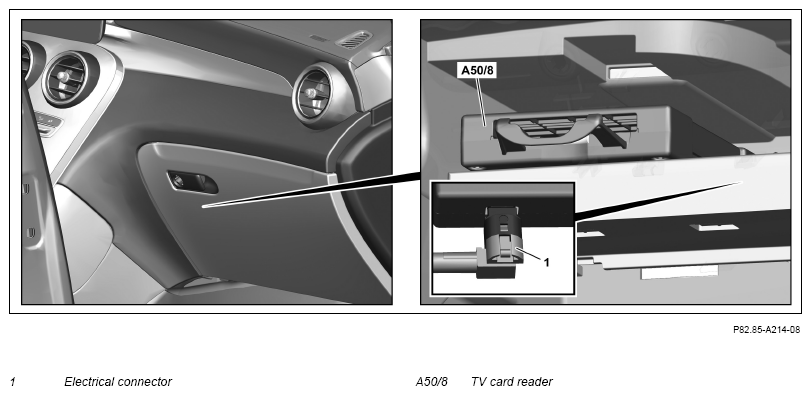

Fig 1: TV Card Reader Components Location - Model 253 As Of Model Year 2020 With Code 865

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2	Open glove compartment.
3	Unclip TV card reader (A50/8) and remove until electrical connector (1) is accessible.	Long wedge	Fig 2
4	Disconnect electrical connector (1) and remove TV card reader (A50/8) from glove compartment.
5	Install in the reverse order.

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
