Remove/Install Rear Sound Generator - AR82.27-P-0004LXM
Model 253
with code B53 (External noise sound generator for hybrids and EV)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove left rear wheel and tire assembly. | AR40.10-P-1102A | |
| 2 | Remove fender liner in rear left fender. | AR88.10-P-1400LW | |

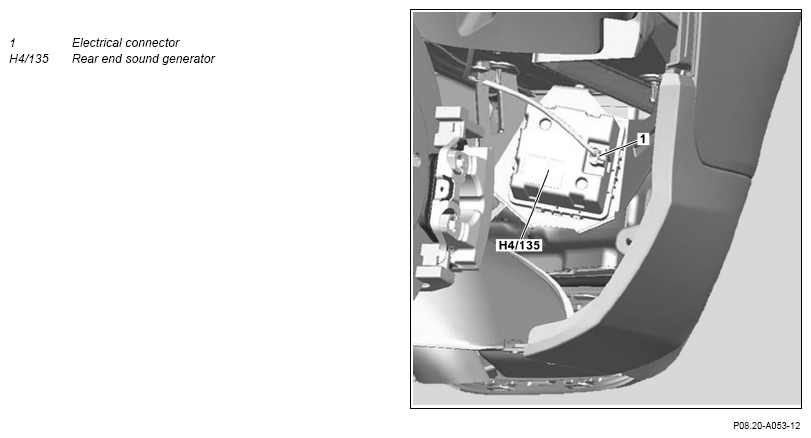

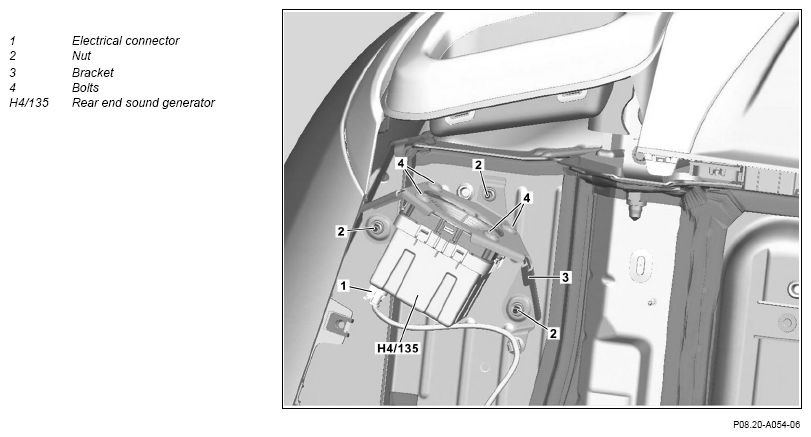

| 3 | Disconnect electrical connector (1). | ||
| 4 | Remove nuts (2). | ||
| 5 | Remove rear sound generator (H4/135) with bracket (3). | ||
| 6 | Remove screws/bolts (4). | ||
| 7 | Remove rear sound generator (H4/135) from bracket (3). | ||
| 8 | Install in the reverse order. | ||
| 9 | Perform commissioning of the rear end sound generator (H4/135). | When replacing the rear end sound generator (H4/135). | |
| AD00.00-P-2000-04B |
